Product Number: 85231

Electronic, 2 C #16 Str TC, ETFE Ins, OS, ETFE Jkt

Name: Belden 85231
Brand: Belden
SKU: 85231

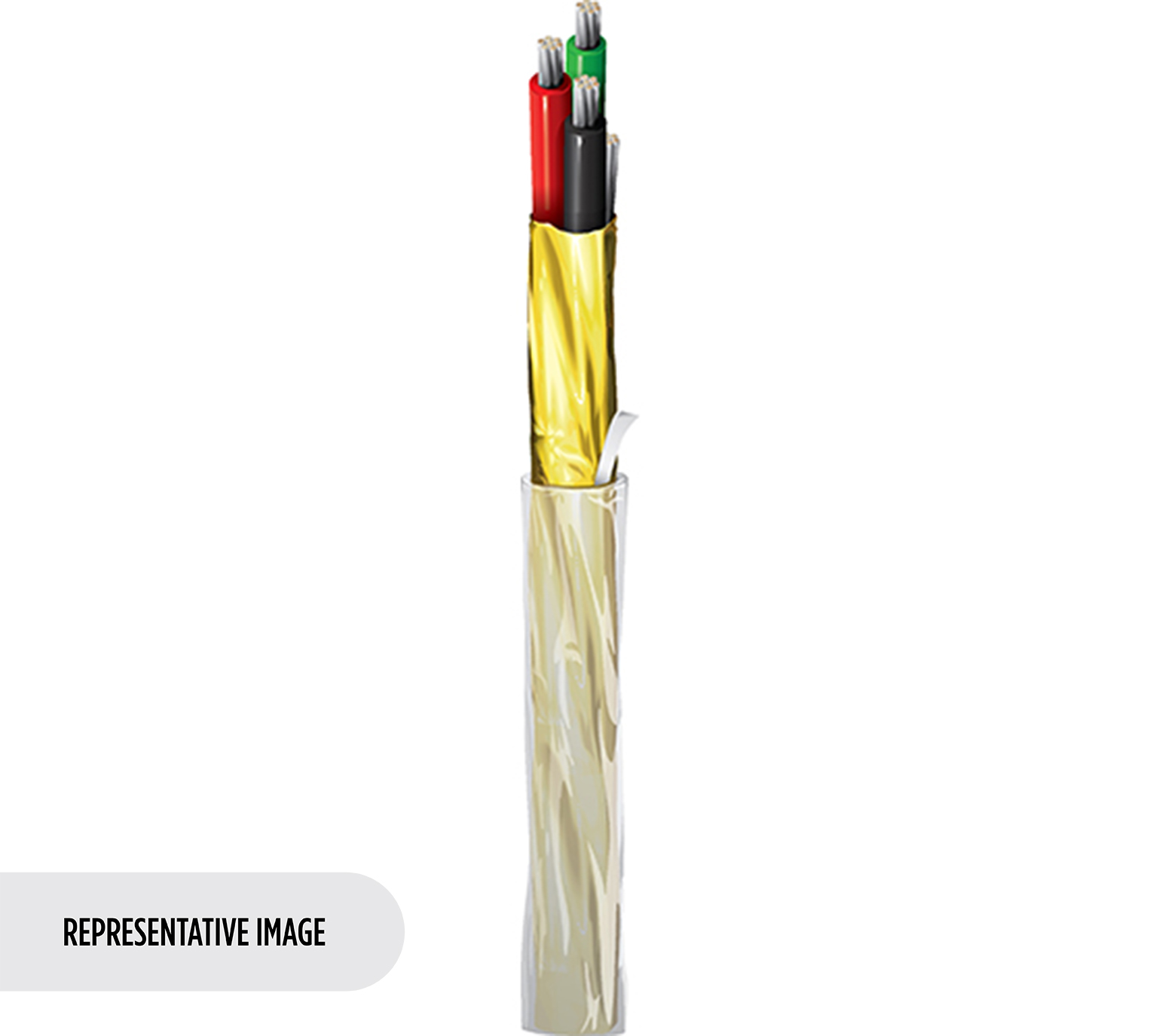

High Temperature Electronic, 2 Conductor 16AWG (19x29) Tinned Copper, ETFE Insulation, Overall Beldfoil® Shield, ETFE Outer Jacket

Ships from and sold by A5 IT.

Part numbers

85231 is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.

Item #	Color	Putup Type	Length	UPC	Footnote	Order
85231 368500	Clear, Transparent	Reel	500 ft	612825212096	C	Order online
85231 3681000	Clear, Transparent	Reel	1,000 ft	612825212089	C	Order online

Suitable Applications	extreme high/low temperature environments; chemical resistant; low voltage analog signals (4-20ma, 0-10v, ...); low voltage control (24v, ...); instrumentation

Overall Cable Diameter (Nominal)	0.210 in (5.33 mm)

Element	Conductor(s)
Material	ETFE - Ethylene Tetrafluoroethylene
Nom. Thickness	0.014 in (0.36 mm)
Nom. Insulation Diameter	0.082 in (2.1 mm)
Color Code	Black, Red

Material	ETFE - Ethylene Tetrafluoroethylene
Nom. Thickness	0.020 in (0.51 mm)
Nom. Diameter	0.210 in (5.33 mm)

Nom Outer Shield DCR	4.98 Ohm/1000ft (16.3 Ohm/km)

Element	Conductor(s)
Nom. Conductor DCR	4.45 Ohm/1000ft
Nom. Capacitance Cond-to-Cond	44 pF/ft (140 pF/m)
Nom. Capacitance Cond-to-Other (Conds + Shield)	79 pF/ft (260 pF/m)
Nom. Inductance	0.165 μH/ft (0.541 μH/m)
Max. Current	12 Amps per Conductor at 30oC

Voltage Rating	300 V

Max. Pull Tension	102.4 lbs (46.45 kg)
Bulk Cable Weight	34 lbs/1000ft

Operating	-30°C to +150°C

Stationary Min.	2.1 in (53 mm)
Installation Min.	2.1 in (53 mm)

Environmental Suitability	Indoor
Sustainability	CA Prop 65
Flammability / Reaction to Fire	UL 1581 (VW-1)
CPR Compliance	CPR Euroclass: Eca
European Directive Compliance	EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
UK Regulation Compliance	UKCA Mark
APAC Compliance	China RoHS II (GB/T 26572-2011)
