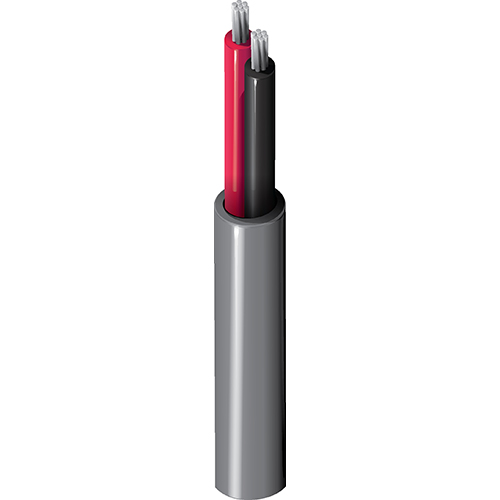

Electronic, 9 C #16 Str TC, ETFE Ins, ETFE Jkt
High Temperature Electronic, 9 Conductor 16AWG (19x29) Tinned Copper, ETFE Insulation, ETFE Outer Jacket
- Availability
- Global
- Status
- Active
- Orderable items
- 1
Part numbers
85109 is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.
| Item # | Color | Putup Type | Length | UPC | Footnote | Order |
|---|---|---|---|---|---|---|
| 85109 3681000 | Clear, Transparent | Reel | 1,000 ft | 612825210610 | C | Order online |
Specifications
Product Overview
| Suitable Applications | extreme high/low temperature environments; chemical resistant; low voltage analog signals (4-20ma, 0-10v, ...); low voltage control (24v, ...); instrumentation |
|---|
Construction Details
| Overall Cable Diameter (Nominal) | 0.354 in. |
|---|
Conductor
| Element | Conductor(s) |
|---|---|
| No. of Elements | 9 |
| Size | 16 AWG |
| Stranding | 19x29 |
| Material | TC - Tinned Copper |
Insulation
| Element | Conductor(s) |
|---|---|
| Material | ETFE - Ethylene Tetrafluoroethylene |
| Nom. Thickness | 0.0135 in (0.343 mm) |
| Nom. Insulation Diameter | 0.082 in (2.1 mm) |
| Color Code | Black, White, Red, Green, Orange, Blue, White/Black, Red/Black, Green/Black |
Outer Shield
| Material | No Shield |
|---|
Outer Jacket
| Material | ETFE - Ethylene Tetrafluoroethylene |
|---|---|
| Nom. Thickness | 0.024 in (0.61 mm) |
| Nom. Diameter | 0.354 in |
Electrical Characteristics
Electricals
| Nom. Conductor DCR | 4.76 Ohm/1000ft |
|---|---|
| Nom. Inductance | 0.17 μH/ft (0.56 μH/m) |
| Max. Current | 8.5 Amps per Conductor at 25oC |
Voltage
| Voltage Rating | 300 V |
|---|
Mechanical Characteristics
| Max. Pull Tension | 360 lbs (160 kg) |
|---|---|
| Bulk Cable Weight | 111 lbs/1000ft |
Temperature
| Operating | -60°C To +150°C |
|---|
Bend Radius
| Stationary Min. | 3.54 in (89.9 mm) |
|---|---|
| Installation Min. | 3.54 in |
Standards and Compliance
| Environmental Suitability | Indoor |
|---|---|
| Flammability / Reaction to Fire | VW-1 |
| European Directive Compliance | EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
| APAC Compliance | China RoHS II (GB/T 26572-2011) |
Product Notes
| Notes | Tefzel is a trademark of Dupont. |
|---|
History
| Update and Revision | Revision Number: 0.346 Revision Date: 09-07-2025 |
|---|---|
| Footnote | C - CRATE REEL PUT-UP. |
