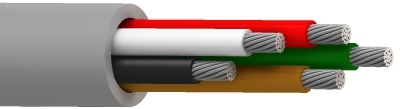

SpaceMakerTM, 5 C #18 Str TC, PO Ins, PVC Jkt, AWM 2937
SpaceMakerTM, 5 Conductor 18AWG (41x34) Tinned Copper, PO Insulation, PVC Outer Jacket, AWM 2937
- Availability
- Global
- Status
- Active
- Orderable items
- 6
Part numbers
8465MN is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.
| Item # | Color | Putup Type | Length | UPC | Order |
|---|---|---|---|---|---|
| 8465MN 006100 | Blue, Light | Reel | 100 ft | 612825387046 | Order online |
| 8465MN 0061000 | Blue, Light | Reel | 1,000 ft | 612825387053 | Order online |
| 8465MN 008100 | Gray | Reel | 100 ft | 612825387060 | Order online |
| 8465MN 0081000 | Gray | Reel | 1,000 ft | 612825387077 | Order online |
| 8465MN 004100 | Yellow | Reel | 100 ft | 612825387022 | Order online |
| 8465MN 0041000 | Yellow | Reel | 1,000 ft | 612825387039 | Order online |
Specifications
Construction Details
| Overall Cable Diameter (Nominal) | 0.213 in |
|---|
Conductor
| Element | Conductor(s) |
|---|---|
| No. of Elements | 5 |
| Size | 18 AWG |
| Stranding | 41x34 |
| Material | TC - Tinned Copper |
Insulation
| Element | Conductor(s) |
|---|---|
| Material | PP - Polypropylene |
| Nom. Thickness | 0.010 in (0.25 mm) |
| Nom. Insulation Diameter | 0.067 in (1.7 mm) |
| Color Code | Black, White, Red, Green, Brown |
Outer Shield
| Material | No Shield |
|---|
Outer Jacket
| Material | PVC - Polyvinyl Chloride |
|---|---|
| Nom. Thickness | 0.016 in (0.41 mm) |
| Nom. Diameter | 0.213 in |
Electrical Characteristics
Electricals
| Nom. Conductor DCR | 7.06 Ohm/1000ft |
|---|---|
| Nom. Capacitance Cond-to-Cond | 14.8 pF/ft (48.6 pF/m) |
| Nom. Characteristic Impedence | 39 Ohm |
| Nom. Inductance | 0.022 μH/ft (0.072 μH/m) |
| Max. Current | 4 Amps per Conductor at 25oC |
Voltage
| UL Voltage Rating | 300 V |
|---|
Mechanical Characteristics
| Max. Pull Tension | 102.5 lbs (46.49 kg) |
|---|---|
| Bulk Cable Weight | 36 lbs/1000ft |
Temperature
| UL Temperature | 80°C |
|---|---|
| Operating | -20°C To +80°C |
Bend Radius
| Stationary Min. | 2.130 in (54.10 mm) |
|---|---|
| Installation Min. | 2.130 in |
Standards and Compliance
| Environmental Suitability | Indoor |
|---|---|
| AWM Compliance | AWM 2937 |
| European Directive Compliance | EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
History
| Update and Revision | Revision Number: 0.143 Revision Date: 09-07-2025 |
|---|
