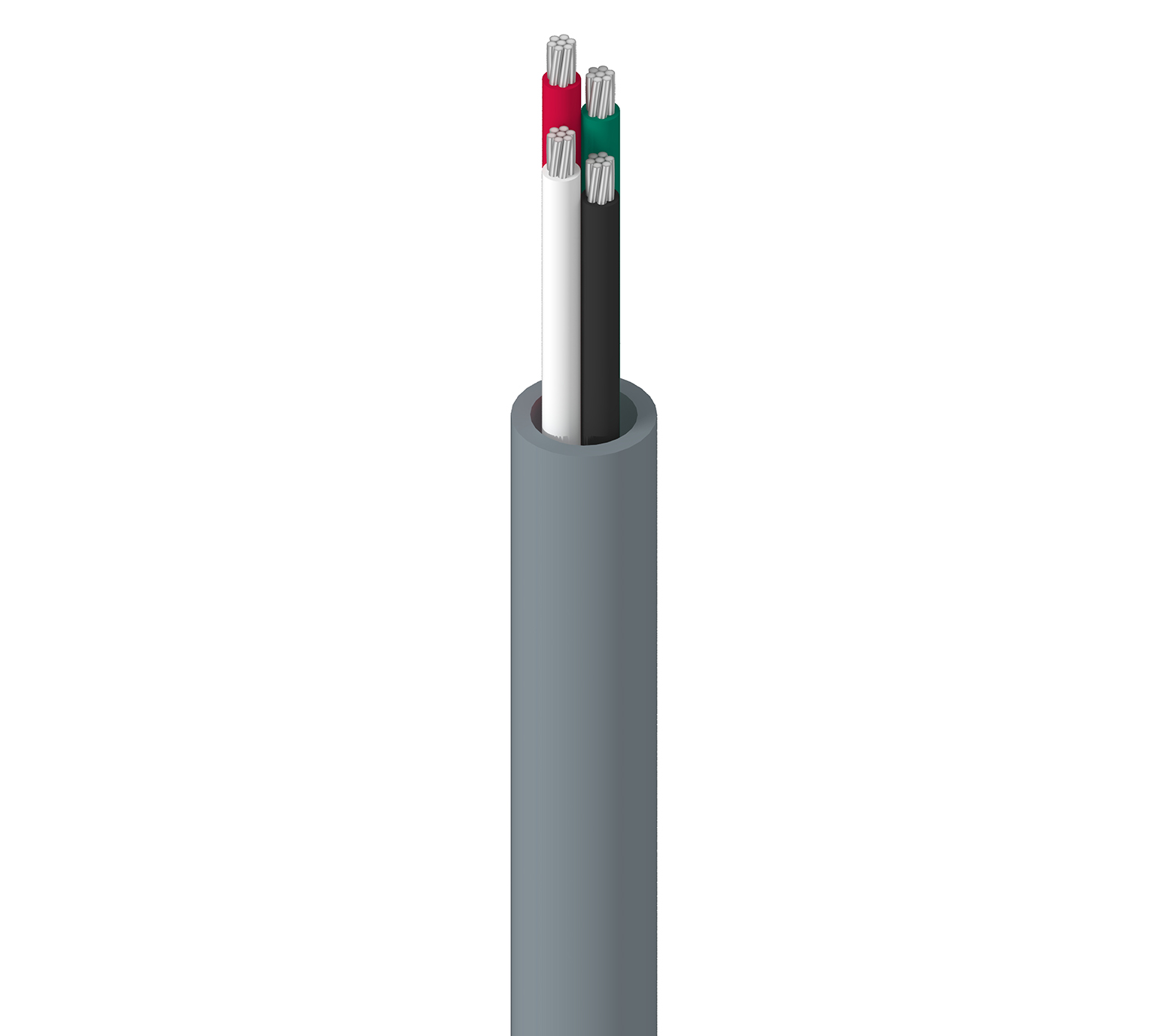

Electronic, 4 C #22 Str TC, PO Ins, LSZH Jkt, CMG
Electronic, 4 Conductor 22AWG (7x30) Tinned Copper, PO Insulation, LSZH Outer Jacket, CMG
- Availability
- Global
- Status
- Active
- Orderable items
- 2
Part numbers
8444ZH is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.
| Item # | Color | UPC | Order |
|---|---|---|---|
| 8444ZH 0101000 | Black | 612825382256 | Order online |
| 8444ZH 010500 | Black | 612825382263 | Order online |
Specifications
Construction Details
| Overall Cable Diameter (Nominal) | 0.185 in |
|---|
Conductor
| Element | Conductor(s) |
|---|---|
| No. of Elements | 4 |
| Size | 22 AWG |
| Stranding | 7x30 |
| Material | TC - Tinned Copper |
Insulation
| Element | Conductor(s) |
|---|---|
| Material | PP - Polypropylene |
| Nom. Thickness | 0.011 in (0.28 mm) |
| Nom. Insulation Diameter | 0.050 in (1.3 mm) |
| Color Code | Black, White, Red, Green |
Outer Shield
| Shield Type | No Shield |
|---|---|
| Material | No Shield |
Outer Jacket
| Material | LSZH - Low Smoke Zero Halogen (Flame Retardant) |
|---|---|
| Nom. Thickness | 0.032 in (0.81 mm) |
| Nom. Diameter | 0.185 in |
Electrical Characteristics
Electricals
| Nom. Conductor DCR | 17.8 Ohm/1000ft |
|---|---|
| Nom. Capacitance Cond-to-Cond | 15 pF/ft (49 pF/m) |
| Nom. Inductance | 0.17 μH/ft (0.56 μH/m) |
| Max. Current | 2.32 Amps per Conductor at 25oC |
Voltage
| UL Voltage Rating | 300 V |
|---|
Mechanical Characteristics
| Max. Pull Tension | 36.4 lbs (16.5 kg) |
|---|---|
| Bulk Cable Weight | 20 lbs/1000ft |
Temperature
| UL Temperature | 75°C |
|---|---|
| Operating | -20°C To +75°C |
Bend Radius
| Stationary Min. | 1.85 in (47.0 mm) |
|---|---|
| Installation Min. | 1.85 in |
Standards and Compliance
| Environmental Suitability | Indoor, Non-Halogenated |
|---|---|
| Flammability / Reaction to Fire | UL 1685 FT4 Loading, FT4 |
| NEC / UL Compliance | Article 800, CMG |
| AWM Compliance | AWM 21307 |
| CEC / C(UL) Compliance | CMG. |
| European Directive Compliance | EU CE Mark, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
| APAC Compliance | China RoHS II (GB/T 26572-2011) |
History
| Update and Revision | Revision Number: 0.287 Revision Date: 09-07-2025 |
|---|
