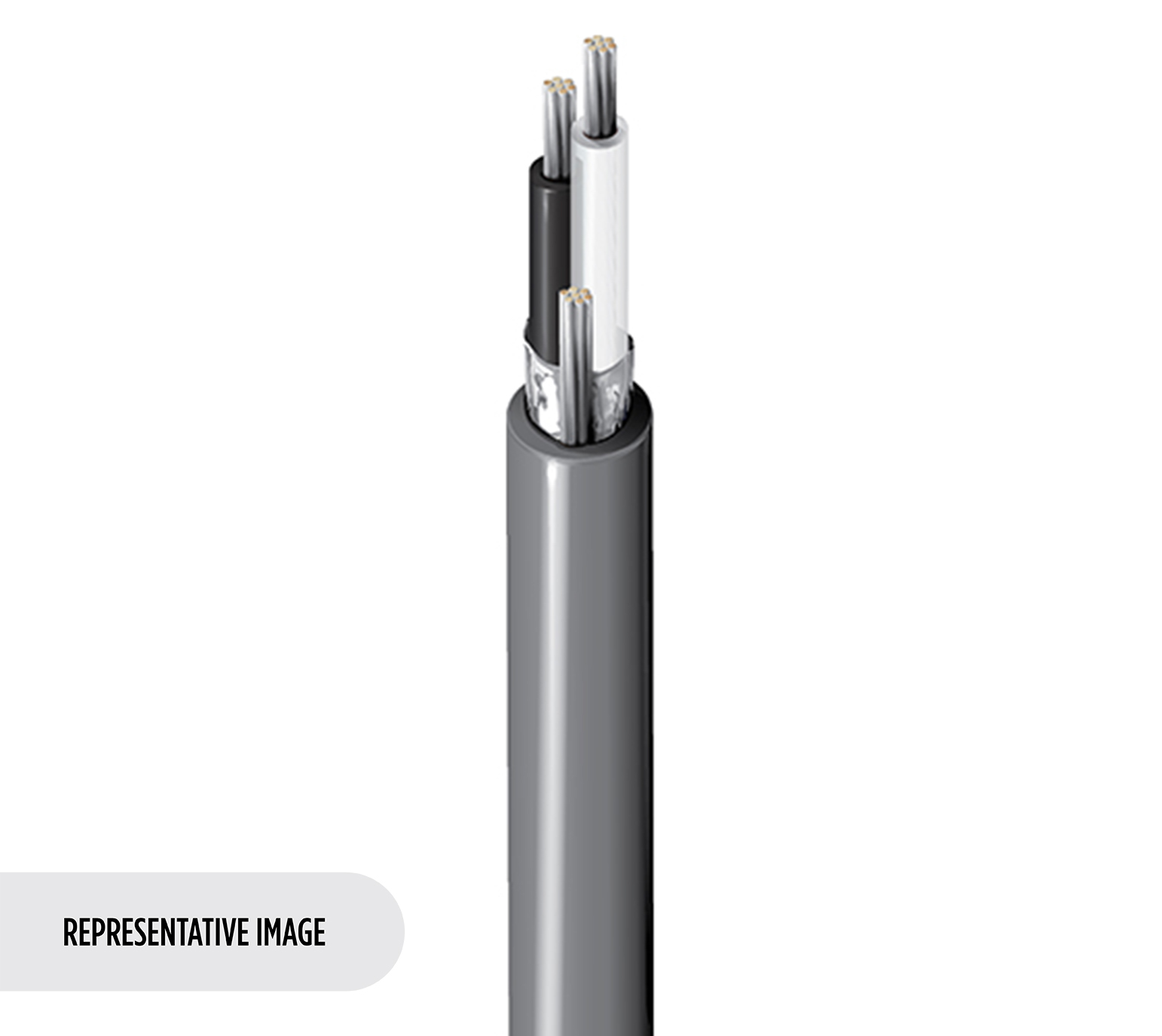

Electronic, 3 C #22 Str TC, PO Ins, LSZH Jkt, CMG
Electronic, 3 Conductor 22AWG (7x30) Tinned Copper, PO Insulation, LSZH Outer Jacket, CMG
- Availability
- Global
- Status
- Active
- Orderable items
- 2
Part numbers
8443ZH is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.
| Item # | Color | Put-Up Type | Length | UPC | Order |
|---|---|---|---|---|---|
| 8443ZH 010500 | Black | Reel | 500 ft | 612825382249 | Order online |
| 8443ZH 0101000 | Black | Reel | 1,000 ft | 612825382232 | Order online |
Specifications
Physical Characteristics (Overall)
| Conductor Count | 3 |
|---|
Conductor
| AWG | 22 |
|---|---|
| Stranding | 7x30 |
| Material | TC - Tinned Copper |
| No. of Conductors | 3 |
Insulation
| Material | PP - Polypropylene |
|---|---|
| Nominal Wall Thickness | 0.011 in |
Color Chart
| Color |
|---|
| Black |
| Red |
| Green |
Outer Shield
| Type | No Shield |
|---|---|
| Material | No Shield |
Outer Jacket
| Material | Nominal Diameter | Nominal Wall Thickness |
|---|---|---|
| LSZH - Low Smoke Zero Halogen (Flame Retardant) | 0.172 | 0.032 mm |
| 0.172 mm |
Electrical Characteristics
| Electrical Characteristics Notes | 2.9 Amps per conductor @ 25°C |
|---|
Conductor DCR
| Nominal Conductor DCR | 15.6 Ohm/1000ft |
|---|
Capacitance
| Nom. Capacitance Conductor to Conductor | 15 pF/ft |
|---|
Inductance
| Nominal Inductance | 0.17 μH/ft |
|---|
Voltage
| UL Voltage Rating | 300 V RMS |
|---|
Temperature Range
| UL Temperature Rating | 75°C |
|---|---|
| Operating Temperature Range | -20C° to 80°C |
Mechanical Characteristics
| Maximum Recommended Pulling Tension | 27 lbs |
|---|---|
| Minimum Minor Axis Bend Radius | 1.650 in |
Standards
| NEC/(UL) Compliance | CMG |
|---|---|
| CEC/C(UL) Compliance | CMG |
| UL AWM Style Compliance | AWM 21307 |
Applicable Environmental and Other Programs
| EU Directive 2000/53/EC (ELV) | Yes |
|---|---|
| EU Directive 2003/96/EC (BFR) | Yes |
| EU Directive 2011/65/EU (RoHS 2) | Yes |
| EU Directive 2012/19/EU (WEEE) | Yes |
| EU Directive Compliance | Yes |
| EU CE Mark | Yes |
Suitability
| Suitability - Indoor | Yes |
|---|
Flammability, LS0H, Toxicity Testing
| UL Flammability | UL1685 FT4 Loading |
|---|---|
| UL voltage rating | 300 V RMS |
History
| Update and Revision | Revision Number: 0.161 Revision Date: 05-05-2023 |
|---|
