Product Number: 83752

Electronic, 2 C #14 Str TC, FEP Ins, OS+TC Brd, Red FEP Jkt, CMP FPLP

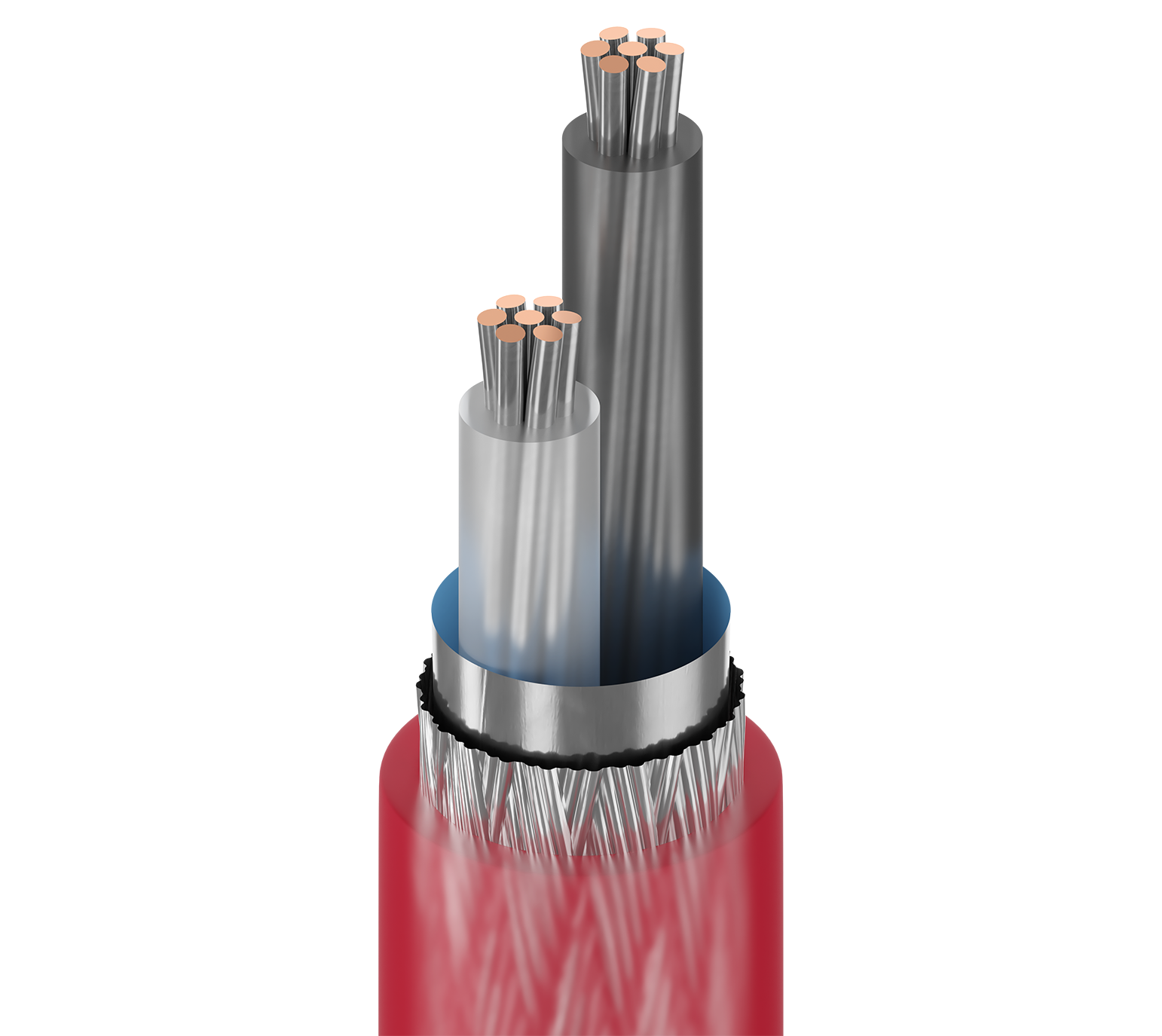

High Temperature Electronic, 2 Conductor 14AWG (7x22) Tinned Copper, FEP Insulation, Overall Beldfoil®+Tinned Copper Braid(85%) Shield, Red FEP Outer Jacket, CMP FPLP

Availability: Global
Status: Active
Orderable items: 2

Ships from and sold by A5 IT.

Part numbers

83752 is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.

Item #	Color	Putup Type	Length	UPC	Footnote	Order
83752 002500	Red	Reel	500 ft	612825205678	C	Order online
83752 0021000	Red	Reel	1,000 ft	612825205661	C	Order online

Specifications

Product Overview

Suitable Applications	fire alarms; extreme high/low temperature environments; indoor/outdoor applications; low voltage analog signals (4-20ma, 0-10v, ...); low voltage control (24v, ...)

Construction Details

Overall Cable Diameter (Nominal)	0.267 in (6.78 mm)

Conductor

Element	Conductor(s)
No. of Elements	2
Size	14 AWG
Stranding	7x22
Material	TC - Tinned Copper

Insulation

Element	Conductor(s)
Material	FEP - Fluorinated Ethylene Propylene
Nom. Thickness	0.016 in (0.41 mm)
Nom. Insulation Diameter	0.105 in (2.67 mm)
Color Code	Black, White

Outer Shield

Shield Type	Material	Coverage
Tape	Bi-Laminate (Alum+Poly)	100%
Braid	Tinned Copper (TC)	85%

Outer Jacket

Material	FEP - Fluorinated Ethylene Propylene
Nom. Thickness	0.015 in (0.38 mm)
Nom. Diameter	0.267 in (6.78 mm)

Electrical Characteristics

Nom Outer Shield DCR	6.1 Ohm/1000ft (20 Ohm/km)

Electricals

Element	Conductor(s)
Nom. Conductor DCR	2.78 Ohm/1000ft
Nom. Capacitance Cond-to-Cond	30 pF/ft (98 pF/m)
Nom. Capacitance Cond-to-Other (Conds + Shield)	52 pF/ft (170 pF/m)
Nom. Inductance	0.16 μH/ft (0.52 μH/m)
Max. Current	18 Amps per Conductor at 25oC

Voltage

UL Voltage Rating	300 V

Mechanical Characteristics

Max. Pull Tension	153 lbs (69.4 kg)
Bulk Cable Weight	56 lbs/1000ft

Temperature

UL Temperature	200°C
Operating	-70°C to +200°C

Bend Radius

Stationary Min.	2.7 in (69 mm)
Installation Min.	2.7 in (69 mm)

Standards and Compliance

Environmental Suitability	Indoor, Outdoor, Oil Resistance, Burial
Sustainability	CA Prop 65
Flammability / Reaction to Fire	NFPA 262 (UL 910), FT6
NEC / UL Compliance	Article 760, Article 800
CEC / C(UL) Compliance	CMP.
European Directive Compliance	EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), REACH, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
APAC Compliance	China RoHS II (GB/T 26572-2011)
