Product Number: 83712

Electronic, 12 C #16 Str TC, FEP Ins, OS+TC Brd, FEP Jkt, CMP

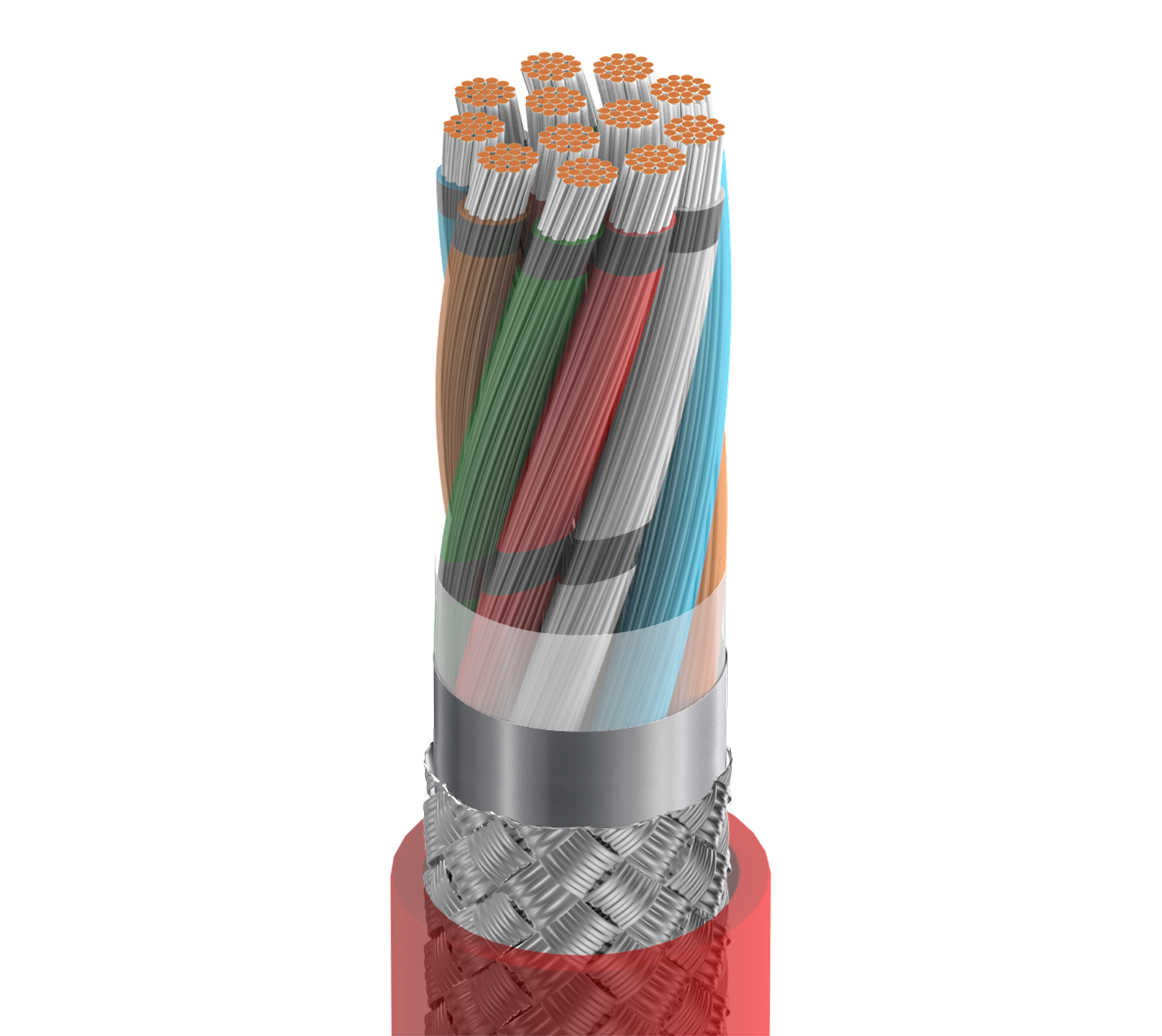

High Temperature Electronic, 12 Conductor 16AWG (19x29) Tinned Copper, FEP Insulation, Overall Beldfoil®+Tinned Copper Braid(85%) Shield, FEP Outer Jacket, CMP

Availability: Global
Status: Active
Orderable items: 2

Ships from and sold by A5 IT.

Part numbers

83712 is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.

Item #	Color	Putup Type	Length	UPC	Footnote	Order
83712 002500	Red	Reel	500 ft	612825205616	C	Order online
83712 0021000	Red	Reel	1,000 ft	612825205609	C	Order online

Specifications

Product Overview

Suitable Applications	extreme high/low temperature environments; chemical resistant; outdoor and burial applications; low voltage analog signals (4-20ma, 0-10v, ...); low voltage control (24v, ...); line level audio; voice communications; panel wiring

Construction Details

Overall Cable Diameter (Nominal)	0.355 in (9.02 mm)

Conductor

Element	Conductor(s)
No. of Elements	12
Size	16 AWG
Stranding	19x29
Material	TC - Tinned Copper

Insulation

Element	Conductor(s)
Material	FEP - Fluorinated Ethylene Propylene
Nom. Thickness	0.007 in (0.18 mm)
Nom. Insulation Diameter	0.069 in (1.8 mm)
Color Code	Black, White, Red, Green, Orange, Blue, White/Black Stripe, Red/Black Stripe, Green/Black Stripe, Orange/Black Stripe, Blue/Black Stripe, Black/White Stripe

Outer Shield

Shield Type	Material	Coverage
Tape	Bi-Laminate (Alum+Poly)	100%
Braid	Tinned Copper (TC)	85%

Outer Jacket

Material	FEP - Fluorinated Ethylene Propylene
Nom. Thickness	0.014 in (0.36 mm)
Nom. Diameter	0.355 in (9.02 mm)

Electrical Characteristics

Nom Outer Shield DCR	3.5 Ohm/1000ft (11 Ohm/km)

Electricals

Element	Conductor(s)
Nom. Conductor DCR	4.43 Ohm/1000ft
Nom. Capacitance Cond-to-Cond	35 pF/ft (110 pF/m)
Nom. Capacitance Cond-to-Other (Conds + Shield)	63 pF/ft (210 pF/m)
Max. Current	4.5 Amps per Conductor at 25oC

Voltage

UL Voltage Rating	300 V

Mechanical Characteristics

Max. Pull Tension	539 lbs (244 kg)
Bulk Cable Weight	148 lbs/1000ft

Temperature

UL Temperature	150°C
Operating	-70°C to +200°C

Bend Radius

Stationary Min.	3.5 in (89 mm)
Installation Min.	3.5 in (89 mm)

Standards and Compliance

Environmental Suitability	Indoor, Outdoor, Oil Resistance, Burial
Sustainability	CA Prop 65
Flammability / Reaction to Fire	NFPA 262 (UL 910), FT6, IEC 60332-1-2
NEC / UL Compliance	Article 800, CMP
CEC / C(UL) Compliance	CMP.
European Directive Compliance	EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), REACH, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
APAC Compliance	China RoHS II (GB/T 26572-2011)
