Product Number: 83569

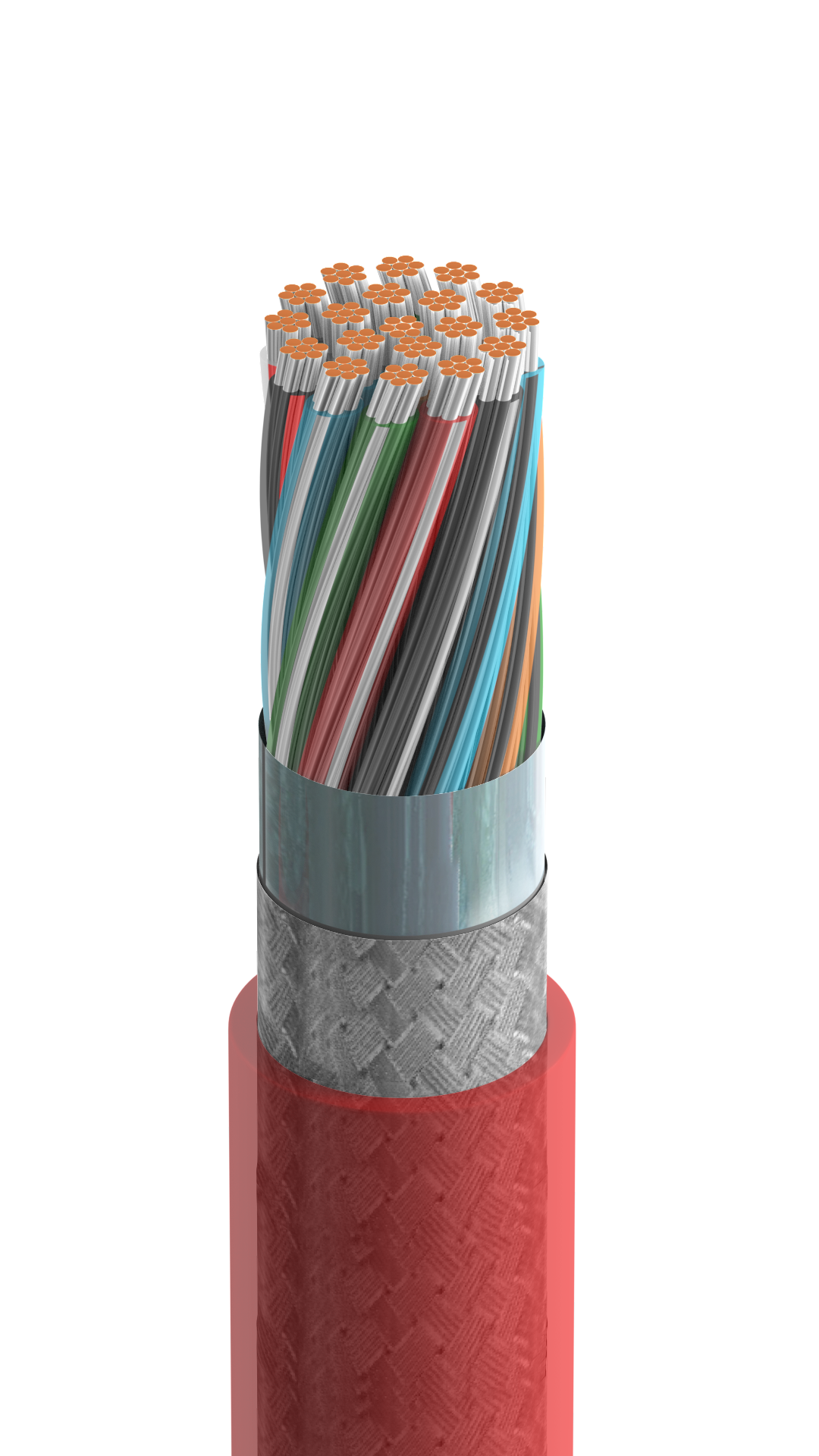

Electronic, 19 C #22 Str TC, FEP Ins, OS+TC Brd, FEP Jkt, CMP

High Temperature Electronic, 19 Conductor 22AWG (7x30) Tinned Copper, FEP Insulation, Overall Beldfoil®+Tinned Copper Braid(85%) Shield, FEP Outer Jacket, CMP

Availability: Global
Status: Active
Orderable items: 1

Ships from and sold by A5 IT.

Part numbers

83569 is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.

Item #	Color	Putup Type	Length	UPC	Footnote	Order
83569 0021000	Red	Reel	1,000 ft	612825205067	C	Order online

Specifications

Product Overview

Suitable Applications	extreme high/low temperature environments; chemical resistant; outdoor and burial applications; low voltage analog signals (4-20ma, 0-10v, ...); low voltage control (24v, ...); line level audio; voice communications; panel wiring

Construction Details

Overall Cable Diameter (Nominal)	0.269 in (6.83 mm)

Conductor

Element	Conductor(s)
No. of Elements	19
Size	22 AWG
Stranding	7x30
Material	TC - Tinned Copper

Insulation

Element	Conductor(s)
Material	FEP - Fluorinated Ethylene Propylene
Nom. Thickness	0.007 in (0.18 mm)
Nom. Insulation Diameter	0.042 in (1.1 mm)
Color Code	Black, White, Red, Green, Orange, Blue, White/Black Stripe, Red/Black Stripe, Green/Black Stripe, Orange/Black Stripe, Blue/Black Stripe, Black/White Stripe, Red/White Stripe, Green/White Stripe, Blue/White Stripe, Black/Red Stripe, White/Red Stripe, Orange/Red Stripe, Blue/Red Stripe

Outer Shield

Shield Type	Material	Coverage
Tape	Bi-Laminate (Alum+Poly)	100%
Braid	Tinned Copper (TC)	85%

Outer Jacket

Material	FEP - Fluorinated Ethylene Propylene
Nom. Thickness	0.015 in (0.38 mm)
Nom. Diameter	0.269 in (6.83 mm)

Electrical Characteristics

Nom Outer Shield DCR	18 Ohm/1000ft (59 Ohm/km)

Electricals

Element	Conductor(s)
Nom. Conductor DCR	15.5 Ohm/1000ft
Nom. Capacitance Cond-to-Cond	23 pF/ft (75 pF/m)
Nom. Capacitance Cond-to-Other (Conds + Shield)	40 pF/ft (130 pF/m)
Max. Current	1.4 Amps per Conductor at 25oC

Voltage

UL Voltage Rating	300 V (CMP)

Mechanical Characteristics

Max. Pull Tension	225 lbs (102 kg)
Bulk Cable Weight	81 lbs/1000ft

Temperature

UL Temperature	150°C
Operating	-70°C to +200°C

Bend Radius

Stationary Min.	2.69 in (68.3 mm)
Installation Min.	2.69 in (68.3 mm)

Standards and Compliance

Environmental Suitability	Indoor - Plenum, Indoor, Outdoor, Sunlight Resistance, Oil Resistance
Sustainability	CA Prop 65
Flammability / Reaction to Fire	NFPA 262, UL 910 (Plenum), FT6
NEC / UL Compliance	Article 800, CMP
CEC / C(UL) Compliance	CMP.
European Directive Compliance	EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), REACH, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
APAC Compliance	China RoHS II (GB/T 26572-2011)
