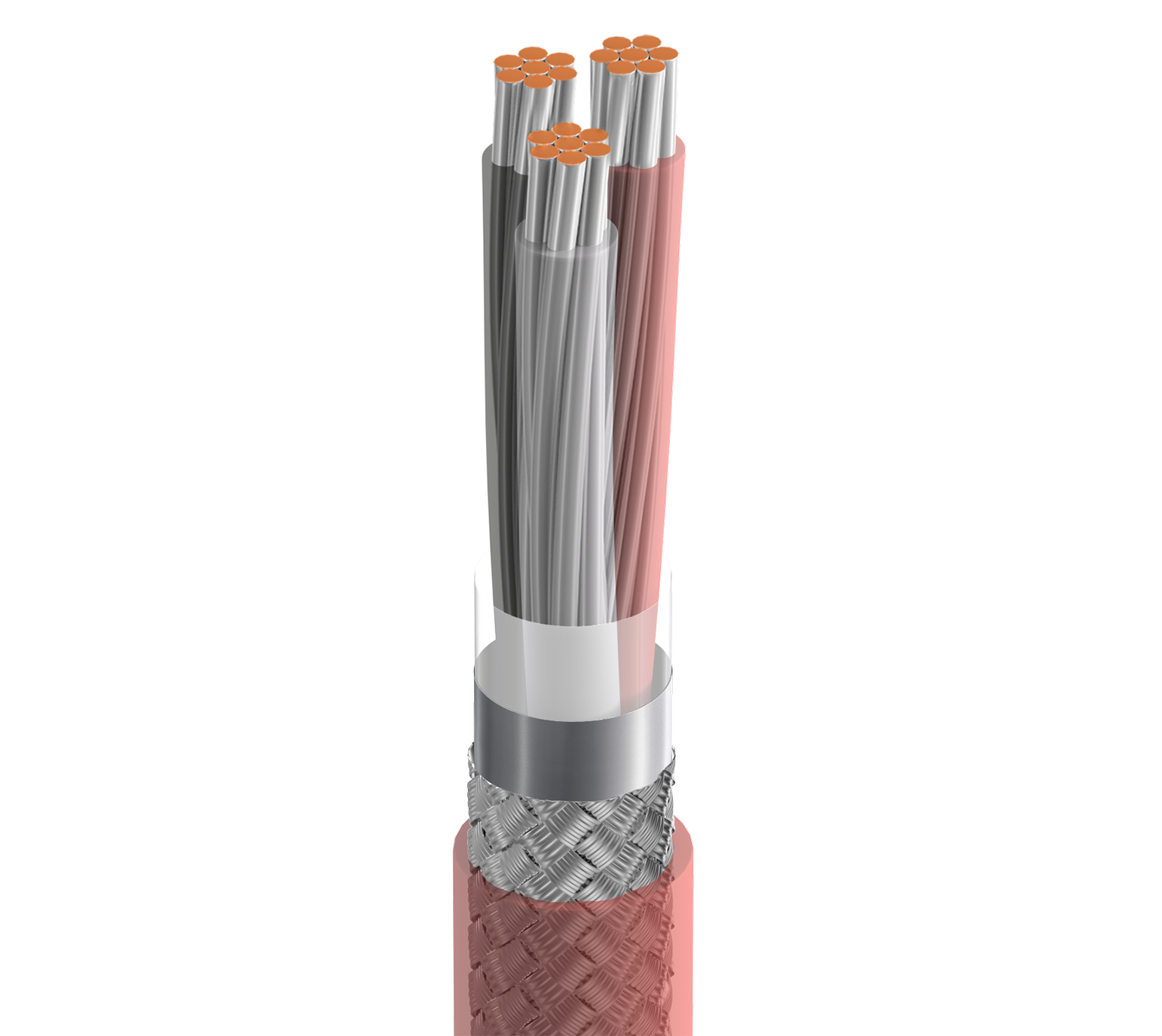

Product Number: 83503

Electronic, 3 C #24 Str TC, FEP Ins, OS+TC Brd, FEP Jkt, CMP

High Temperature Electronic, 3 Conductor 24AWG (7x32) Tinned Copper, FEP Insulation, Overall Beldfoil®+Tinned Copper Braid(85%) Shield, FEP Outer Jacket, CMP

Availability: Global
Status: Active
Orderable items: 2

Ships from and sold by A5 IT.

Part numbers

83503 is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.

Item #	Color	Putup Type	Length	UPC	Footnote	Order
83503 002500	Red	Reel	500 ft	612825204763	C	Order online
83503 0021000	Red	Reel	1,000 ft	612825204756	C	Order online

Specifications

Product Overview

Suitable Applications	extreme high/low temperature environments; chemical resistant; outdoor and burial applications; low voltage analog signals (4-20ma, 0-10v, ...); low voltage control (24v, ...); line level audio; voice communications; panel wiring

Construction Details

Overall Cable Diameter (Nominal)	0.137 in (3.48 mm)

Conductor

Element	Conductor(s)
No. of Elements	3
Size	24 AWG
Stranding	7x32
Material	TC - Tinned Copper

Insulation

Element	Conductor(s)
Material	FEP - Fluorinated Ethylene Propylene
Nom. Thickness	0.006 in (0.15 mm)
Nom. Insulation Diameter	0.036 in (0.91 mm)
Color Code	Black, White, Red

Outer Shield

Shield Type	Material	Coverage
Tape	Bi-Laminate (Alum+Poly)	100%
Braid	Tinned Copper (TC)	85%

Outer Jacket

Material	FEP - Fluorinated Ethylene Propylene
Nom. Thickness	0.014 in (0.36 mm)
Nom. Diameter	0.137 in (3.48 mm)

Electrical Characteristics

Nom Outer Shield DCR	28.3 Ohm/1000ft (92.8 Ohm/km)

Electricals

Element	Conductor(s)
Nom. Conductor DCR	24 Ohm/1000ft
Nom. Capacitance Cond-to-Cond	20 pF/ft (66 pF/m)
Nom. Capacitance Cond-to-Other (Conds + Shield)	36 pF/ft (120 pF/m)
Max. Current	2 Amps per Conductor at 25oC

Voltage

UL Voltage Rating	300 V (CMP)

Mechanical Characteristics

Max. Pull Tension	16 lbs (7.3 kg)
Bulk Cable Weight	16 lbs/1000ft

Temperature

UL Temperature	150°C
Operating	-70°C to +200°C

Bend Radius

Stationary Min.	1.37 in (34.8 mm)
Installation Min.	1.37 in (34.8 mm)

Standards and Compliance

Environmental Suitability	Indoor - Plenum, Indoor, Outdoor, Sunlight Resistance, Oil Resistance
Sustainability	CA Prop 65
Flammability / Reaction to Fire	NFPA 262, UL 910 (Plenum), FT6
NEC / UL Compliance	Article 800, CMP
CEC / C(UL) Compliance	CMP.
European Directive Compliance	EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), REACH, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
APAC Compliance	China RoHS II (GB/T 26572-2011)
