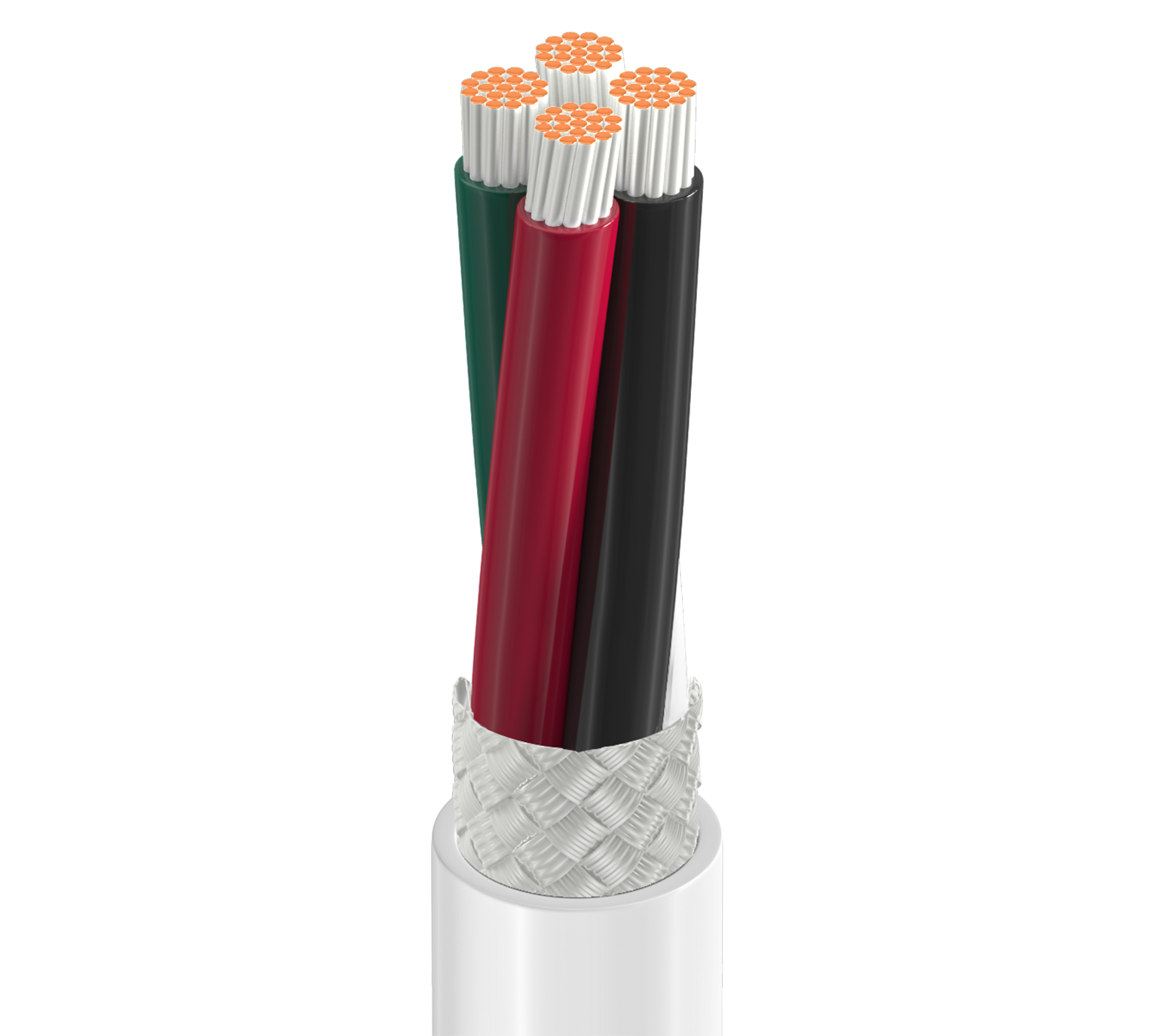

Product Number: 83351E

Electronic, 4 C #18 Str SPC, TFE Ins, OA SPC Brd, TFE Jkt, MIL-W-16878/4 (Type E)

High Temperature Electronic, 4 Conductor 18AWG (19x30) Silver Plated Copper, TFE Insulation, Overall Silver Plated Copper Braid(85%) Shield, TFE Outer Jacket, MIL-W-16878/4 (Type E)

Availability: Global
Status: Active
Orderable items: 3

Ships from and sold by A5 IT.

Part numbers

83351E is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.

Item #	Color	Putup Type	Length	UPC	Footnote	Order
83351E 009100	White	Reel	100 ft	612825204459	E - MAY CONTAIN MORE THAN 1 PIECE. MINIMUM LENGTH OF ANY ONE PIECE IS 25'. LENGTH 100 FT, TOLERANCE: EXACT, MAX # OF PIECES: 2, MIN LENGTH EACH PIECE: 25 FT	Order online
83351E 009500	White	Reel	500 ft	612825204473	E - MAY CONTAIN MORE THAN 1 PIECE. MINIMUM LENGTH OF ANY ONE PIECE IS 25'. LENGTH 500 FT, TOLERANCE: EXACT, MAX # OF PIECES: 3, MIN LENGTH EACH PIECE: 25 FT	Order online
83351E 0091000	White	Reel	1,000 ft	612825204466	E - MAY CONTAIN MORE THAN 1 PIECE. MINIMUM LENGTH OF ANY ONE PIECE IS 25'. LENGTH 1000 FT, TOLERANCE: EXACT, MAX # OF PIECES: 6, MIN LENGTH EACH PIECE: 25 FT	Order online

Specifications

Product Overview

Suitable Applications	MIL-W-16878/4 (Type E) Spec; Extreme High/Low Temperature Environments; up to 600V analog signals & voltage control

Construction Details

Overall Cable Diameter (Nominal)	0.207 in (5.26 mm)

Conductor

Element	Conductor(s)
No. of Elements	4
Size	18 AWG
Stranding	19x30
Material	SC - Silvered Copper

Insulation

Element	Conductor(s)
Material	PTFE - Polytetrafluoroethylene
Nom. Thickness	0.0105 in (0.267 mm)
Nom. Insulation Diameter	0.068 in (1.7 mm)
Color Code	White, Black, Red, Green

Outer Shield

Shield Type	Braid
Material	Silvered Copper (SC)
Coverage	85%

Outer Jacket

Material	PTFE - Polytetrafluoroethylene
Nom. Thickness	0.011 in (0.28 mm)
Nom. Diameter	0.207 in (5.26 mm)

Electrical Characteristics

Nom Outer Shield DCR	8.3 Ohm/1000ft (27 Ohm/km)

Electricals

Element	Conductor(s)
Nom. Conductor DCR	5.7 Ohm/1000ft
Nom. Capacitance Cond-to-Cond	31 pF/ft (100 pF/m)
Nom. Capacitance Cond-to-Other (Conds + Shield)	52.8 pF/ft (173 pF/m)
Nom. Inductance	0.126 μH/ft (0.413 μH/m)
Max. Current	8.1 Amps per conductor @ 25°C

Voltage

Voltage Rating	600 V

Mechanical Characteristics

Max. Pull Tension	98.8 lbs (44.8 kg)
Bulk Cable Weight	47 lbs/1000ft

Temperature

UL Temperature	200°C
Operating	-65°C to +200°C

Bend Radius

Stationary Min.	2.07 in (52.6 mm)
Installation Min.	2.07 in (52.6 mm)

Standards and Compliance

Sustainability	CA Prop 65
CPR Compliance	CPR Euroclass: Eca
NEMA Compliance	NEMA HP3
Military Compliance	MIL-W-16878/4 (Type E except stranding), (insulated conductors)
European Directive Compliance	EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
UK Regulation Compliance	UKCA Mark
APAC Compliance	China RoHS II (GB/T 26572-2011)

Product Notes

Notes	Teflon® is a registered trademark of E. I. duPont de Nemours and Co. used under license by Belden, Inc.

History

Update and Revision	Revision Number: 0.572 Revision Date: 09-07-2025
Footnote	E - MAY CONTAIN MORE THAN 1 PIECE. MINIMUM LENGTH OF ANY ONE PIECE IS 25'. LENGTH 100 FT, TOLERANCE: EXACT, MAX # OF PIECES: 2, MIN LENGTH EACH PIECE: 25 FT LENGTH 500 FT, TOLERANCE: EXACT, MAX # OF PIECES: 3, MIN LENGTH EACH PIECE: 25 FT LENGTH 1000 FT, TOLERANCE: EXACT, MAX # OF PIECES: 6, MIN LENGTH EACH PIECE: 25 FT
