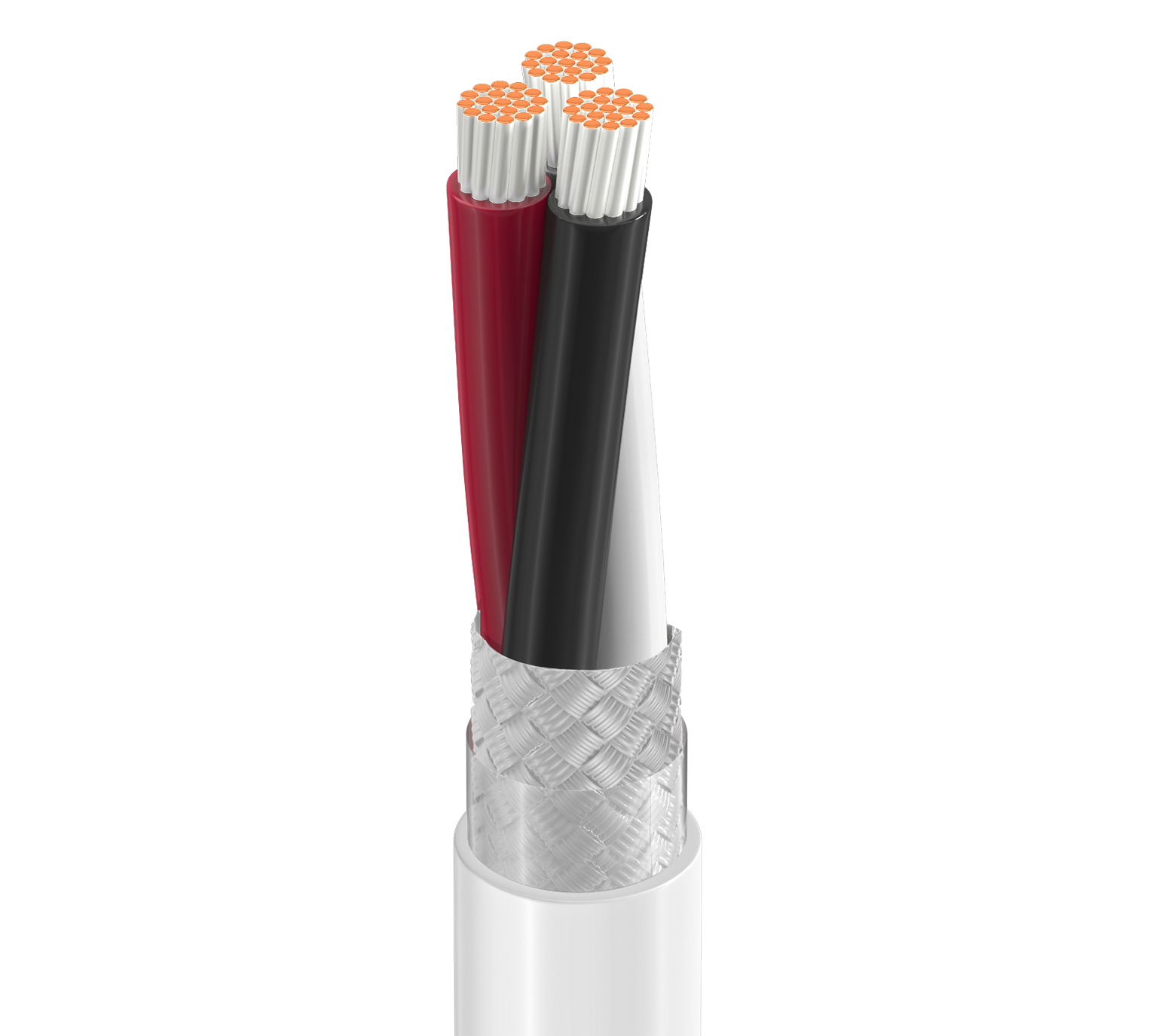

Product Number: 83336E

Electronic, 3 C #18 Str SPC, TFE Ins, OA SPC Brd, TFE Jkt, MIL-W-16878/4 (Type E)

High Temperature Electronic, 3 Conductor 18AWG (19x30) Silver Plated Copper, TFE Insulation, Overall Silver Plated Copper Braid(85%) Shield, TFE Outer Jacket, MIL-W-16878/4 (Type E)

Availability: Global
Status: Active
Orderable items: 3

Ships from and sold by A5 IT.

Part numbers

83336E is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.

Item #	Color	UPC	Footnote	Order
83336E 009500	White	612825204251	E	Order online
83336E 009100	White	612825347538	E	Order online
83336E 0091000	White	612825204244	E	Order online

Specifications

Product Overview

Suitable Applications	MIL-W-16878/4 (Type E) Spec; Extreme High/Low Temperature Environments; up to 600V analog signals & voltage control

Construction Details

Overall Cable Diameter (Nominal)	0.189 in (4.80 mm)

Conductor

Element	Conductor(s)
No. of Elements	3
Size	18 AWG
Stranding	19x30
Material	SC - Silvered Copper

Insulation

Element	Conductor(s)
Material	PTFE - Polytetrafluoroethylene
Nom. Thickness	0.0105 in (0.267 mm)
Nom. Insulation Diameter	0.068 in (1.7 mm)
Color Code	White, Black, Red

Outer Shield

Shield Type	Braid
Material	Silvered Copper (SC)
Coverage	85%

Outer Jacket

Material	PTFE - Polytetrafluoroethylene
Nom. Thickness	0.011 in (0.28 mm)
Nom. Diameter	0.189 in (4.80 mm)

Electrical Characteristics

Nom Outer Shield DCR	8.11 Ohm/1000ft (26.6 Ohm/km)

Electricals

Element	Conductor(s)
Nom. Conductor DCR	5.7 Ohm/1000ft
Nom. Capacitance Cond-to-Cond	31 pF/ft (100 pF/m)
Nom. Capacitance Cond-to-Other (Conds + Shield)	52.8 pF/ft (173 pF/m)
Nom. Inductance	0.114 μH/ft (0.374 μH/m)
Max. Current	8.2 Amps per conductor @ 25°C

Voltage

Voltage Rating	600 V

Mechanical Characteristics

Max. Pull Tension	74.1 lbs (33.6 kg)
Bulk Cable Weight	37 lbs/1000ft

Temperature

UL Temperature	200°C
Operating	-65°C to +200°C

Bend Radius

Stationary Min.	1.89 in (48.0 mm)
Installation Min.	1.89 in (48.0 mm)

Standards and Compliance

Sustainability	CA Prop 65
NEMA Compliance	NEMA HP3
Military Compliance	MIL-W-16878/4 (Type E except stranding), (insulated conductors)
European Directive Compliance	EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
APAC Compliance	China RoHS II (GB/T 26572-2011)
