Product Number: 83308E

Electronic, 1 C #16 Str SPC, TFE Ins, OA SPC Brd, TFE Tape Jkt, MIL-W-16878/4 (Type E)

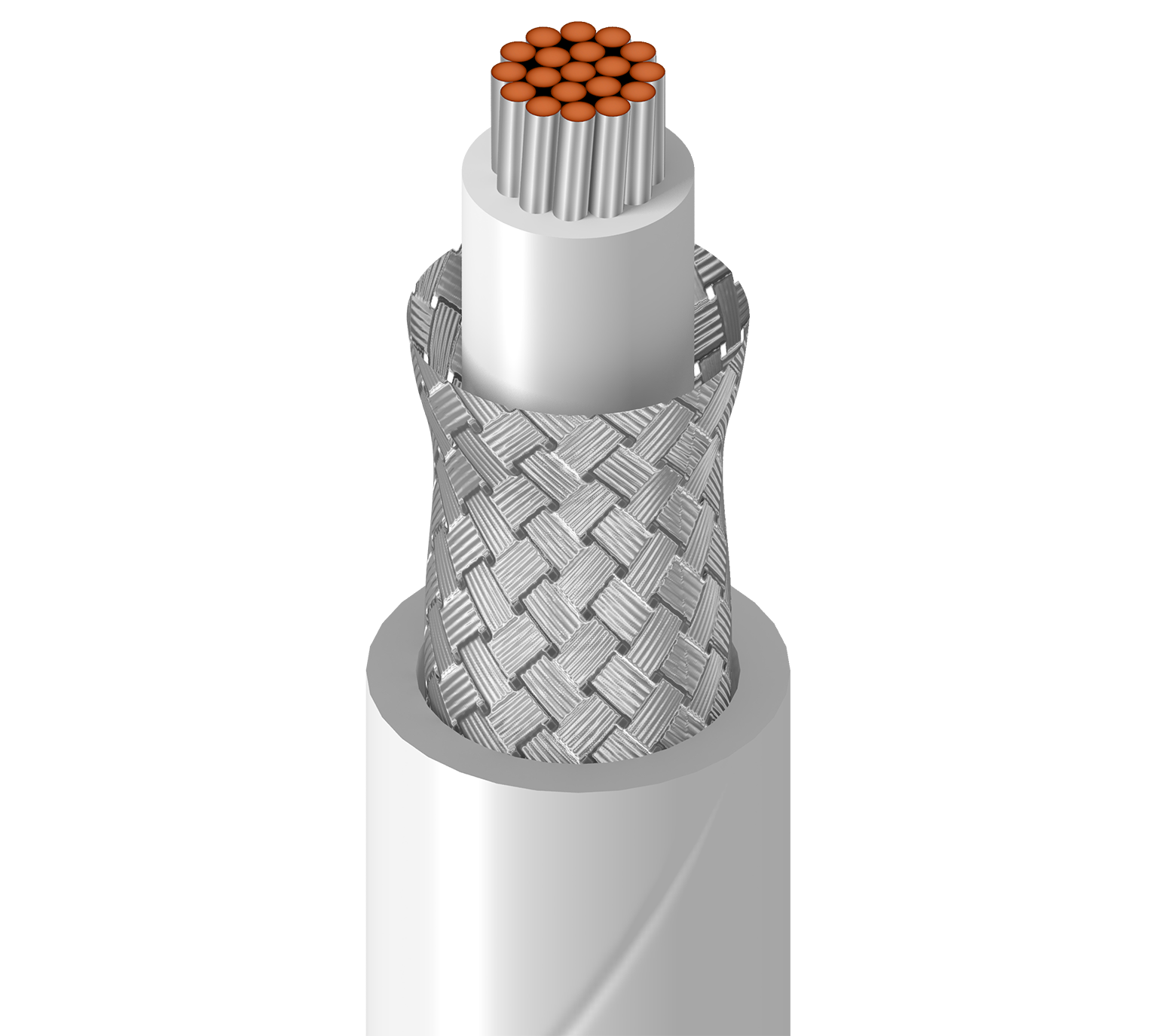

High Temperature Electronic, 1 Conductor 16AWG (19x29) Silver Plated Copper, TFE Insulation, Overall Silver Plated Copper Braid(85%) Shield, TFE Tape Outer Jacket, MIL-W-16878/4 (Type E)

Availability: Global
Status: Active
Orderable items: 2

Ships from and sold by A5 IT.

Part numbers

83308E is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.

Item #	Color	Putup Type	Length	UPC	Footnote	Order
83308E 009500	White	Reel	500 ft	612825203919	E	Order online
83308E 0091000	White	Reel	1,000 ft	612825203902	E	Order online

Specifications

Product Overview

Suitable Applications	MIL-W-16878/4 (Type E) Spec; Extreme High/Low Temperature Environments; up to 600V analog signals & voltage control

Construction Details

Overall Cable Diameter (Nominal)	0.120 in (3.05 mm)

Conductor

Element	Conductor(s)
No. of Elements	1
Size	16 AWG
Stranding	19x29
Material	SC - Silvered Copper

Insulation

Element	Conductor(s)
Material	PTFE - Polytetrafluoroethylene
Nom. Thickness	0.011 in (0.28 mm)
Color Code	White

Outer Shield

Shield Type	Braid
Material	Silvered Copper (SC)
Coverage	85%

Outer Jacket

Material	PTFE - Polytetrafluoroethylene
Nom. Thickness	0.011 in (0.28 mm)
Nom. Diameter	0.120 in (3.05 mm)

Electrical Characteristics

Nom Outer Shield DCR	8.3 Ohm/1000ft (27 Ohm/km)

Electricals

Element	Conductor(s)
Nom. Conductor DCR	4.4 Ohm/1000ft (14 Ohm/km)
Nom. Capacitance Cond-to-Shield	72.5 pF/ft (238 pF/m)
Nom. Inductance	0.155 μH/ft (0.509 μH/m)
Max. Current	11 Amps per conductor @ 25°C

Voltage

Voltage Rating	600 V

Mechanical Characteristics

Max. Pull Tension	50.2 lbs (22.8 kg)
Bulk Cable Weight	18 lbs/1000ft (27 kg/km)

Temperature

Operating	-65°C to +200°C

Standards and Compliance

Sustainability	CA Prop 65
Flammability / Reaction to Fire	IEC 60332-1-2
NEMA Compliance	NEMA HP3
Military Compliance	MIL-W-16878/4 (Type E except stranding), (insulated conductors)
European Directive Compliance	EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
APAC Compliance	China RoHS II (GB/T 26572-2011)
