Product Number: 8325

RS-232, Low Cap, #22-25pr, SR-PVC, O/A Foil+Braid, PVC Jkt, CMG

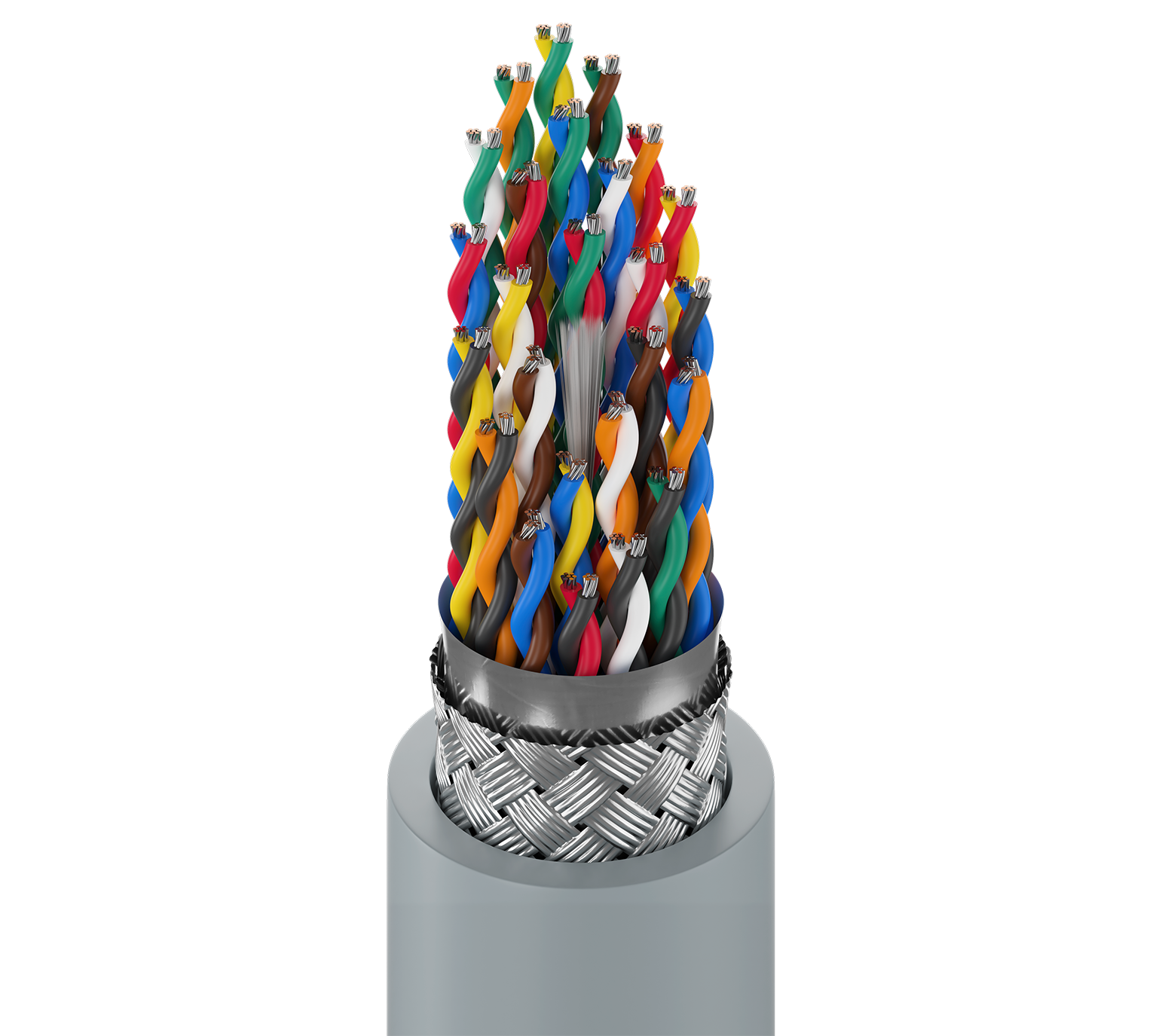

Computer EIA RS-232 Cable, 22 AWG stranded (7x30) tinned copper conductors, semi-rigid PVC insulation, 25 twisted pairs, overall Beldfoil® (100% coverage) + tinned copper braid shield (65% coverage), PVC jacket.

Availability: Global
Status: Active
Orderable items: 2

Ships from and sold by A5 IT.

Part numbers

8325 is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.

Item #	Color	Putup Type	Length	UPC	Footnote	Order
8325 060500	Chrome	Reel	500 ft	612825203643	C	Order online
8325 0601000	Chrome	Reel	1,000 ft	612825203636	C	Order online

Specifications

Product Overview

Suitable Applications	RS-232 Extended Distance Applications; Computer Communications; Low Voltage Analog Signals (4-20ma, 0-10v, ...); Low Voltage Digital Control (24v, ...); Line Level Audio; Panel Wiring

Construction Details

Overall Cable Diameter (Nominal)	0.620 in (15.7 mm)

Conductor

Element	Pair(s)
No. of Elements	25
Size	22 AWG
Stranding	7x30
Material	TC - Tinned Copper

Insulation

Element	Pair(s)
Material	SR-PVC - Polyvinyl Chloride (Semi-Rigid)
Nom. Thickness	0.011 in (0.28 mm)
Nom. Insulation Diameter	0.051 in (1.3 mm)
Color Code	Black & Red, Black & White, Black & Green, Black & Blue, Black & Yellow, Black & Brown, Black & Orange, Red & White, Red & Green, Red & Blue, Red & Yellow, Red & Brown, Red & Orange, Green & White, Green & Blue, Green & Yellow, Green & Brown, Green & Orange, White & Blue, White & Yellow, White & Brown, White & Orange, Blue & Yellow, Blue & Brown, Blue & Orange

Outer Shield

Shield Type	Material	Coverage
Tape	Bi-Laminate (Alum+Poly)	100%
Braid	Tinned Copper (TC)	65%

Outer Jacket

Material	PVC - Polyvinyl Chloride
Nom. Thickness	0.045 in (1.1 mm)
Nom. Diameter	0.620 in (15.7 mm)

Electrical Characteristics

Nom Outer Shield DCR	4.2 Ohm/1000ft (14 Ohm/km)

Electricals

Element	Pair(s)
Nom. Conductor DCR	18.2 Ohm/1000ft
Nom. Capacitance Cond-to-Cond	35 pF/ft (110 pF/m)
Nom. Capacitance Cond-to-Other (Conds + Shield)	63 pF/ft (210 pF/m)
Nom. Velocity of Prop.	60%
Max. Current	1.4 Amps per Conductor at 25oC

Voltage

UL Voltage Rating	300 V (CMG), 300 V (UL AWM 2464)

Mechanical Characteristics

Max. Pull Tension	455 lbs (206 kg)
Bulk Cable Weight	233 lbs/1000ft

Temperature

UL Temperature	80°C
Operating	-30°C to +80°C

Bend Radius

Stationary Min.	6.2 in (160 mm)
Installation Min.	6.2 in (160 mm)

Standards and Compliance

Environmental Suitability	Indoor
Flammability / Reaction to Fire	UL 1685 FT4 Loading, FT4
CPR Compliance	CPR Euroclass: Eca
NEC / UL Compliance	Article 800, CMG
AWM Compliance	AWM 2464
CEC / C(UL) Compliance	CMG.
European Directive Compliance	EU CE Mark, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
UK Regulation Compliance	UKCA Mark
APAC Compliance	China RoHS II (GB/T 26572-2011)
