Product Number: 8110NH

RS232/422 Low Cap, #24-10pr, FPO, O/A Foil+Braid, LSZH Jkt, Dca, 100Ω

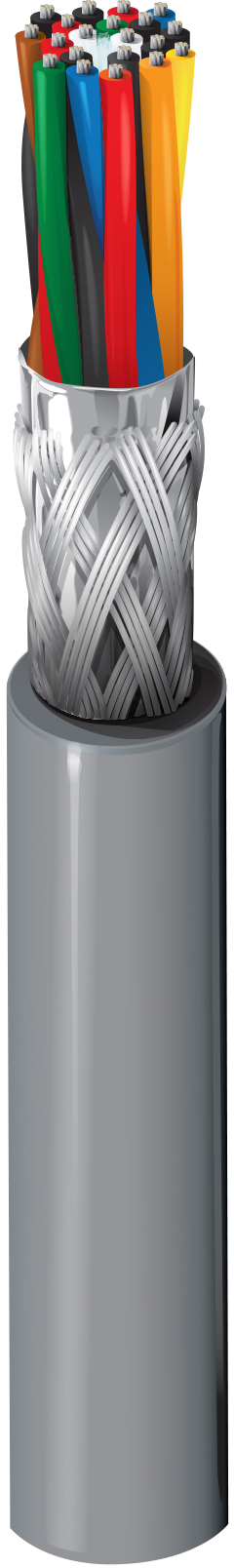

10-Pair, 24 AWG stranded (7x32) TC conductors, Datalene® insulation, twisted pairs, overall Beldfoil® (100% coverage) + TC braid shield (65% coverage), 24 AWG stranded TC drain wire, LSZH jacket, Flame resistance EC 60332-3C

Availability: Global
Status: Active
Orderable items: 3

Ships from and sold by A5 IT.

Part numbers

8110NH is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.

Item #	Color	Putup Type	Length	EAN	Order
8110NH.00152	Chrome	Reel	152 m	8719605017895	Order online
8110NH.00305	Chrome	Reel	305 m	8719605017901	Order online
8110NH.00500	Chrome	Reel	500 m	8719605017918	Order online

Specifications

Product Overview

Suitable Applications	Instrumentation and computer cable; For data transmission applications

Construction Details

Conductor

Size	24
Stranding	7x32
Material	TC - Tinned Copper

Insulation

Material	PE - Polyethylene (Foam)
Nom. Insulation Diameter	1.24 mm (0.0488 in)
Color Code	White/Blue & Blue/White, White/Orange & Orange/White, White/Green & Green/White, White/Brown & Brown/White, White/Gray & Gray/White, Red/Blue & Blue/Red, Red/Orange & Orange/Red, Red/Green & Green/Red, Red/Brown & Brown/Red, Red/Gray & Gray/Red

Outer Shield

Shield Type	Material
Tape	Bi-Laminate (Alum+Poly)
Braid	Tinned Copper (TC)

Outer Jacket

Material	LSZH - Low Smoke Zero Halogen (Flame Retardant)
Nom. Diameter	10.29 mm (0.4051 in)

Electrical Characteristics

Nom Outer Shield DCR	8.5 Ohm/km (2.6 Ohm/1000ft)

Electricals

Nom. Conductor DCR	78.7 Ohm/km (24.0 Ohm/1000ft)
Nom. Capacitance Cond-to-Cond	41 pF/m (12 pF/ft)
Nom. Capacitance Cond-to-Other (Conds + Shield)	72.2 pF/m (22.0 pF/ft)
Nom. Characteristic Impedence	100 Ohm
Nom. Velocity of Prop.	78%
Max. Current	1.5 Amps per Conductor

Mechanical Characteristics

Max. Pull Tension	400 N (90 lbf)

Temperature

Storage	-45°C To +80°C

Bend Radius

Installation Min.	102.9 mm (4.051 in)

Standards and Compliance

Environmental Suitability	Indoor/Outdoor, Indoor, Outdoor, Non-Halogenated, Sunlight Resistance - UL 1581 sec 1200 Black Only
Flammability / Reaction to Fire	IEC 60332-3-24
CENELEC Compliance	EN 50290-2-20
European Halogen Free Standards	IEC 62821-1 Halogen Free Compliance = Yes, IEC 60754-1 - Halogen Amount = Zero, IEC 60754-2 - Halogen Acid Gas Amount - Max. Conductivity = 2.5 μS/mm, IEC 60754-2 - Halogen Acid Gas Amount - Min. pH = 4.3, IEC 61034-2 - Smoke Density Min. Transmittance = 60%
