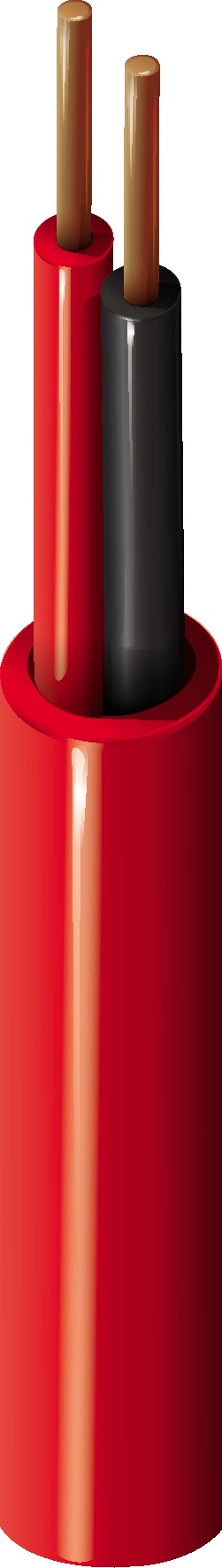

Product Number: 5020UME

Safe-T-Line, 2 C #12 Sol BC, Silicone Ins, LSZH Jkt, FPLR, CWZ, PH120

Safe-T-Line TW Pair x AWG12 (Solid SBC) Fire resistant Multi-conductor, BS 6387 CWZ, EN 50200 PH120, EN60331-2 , Unshielded, Ceramifiable Silicone insulation, Low Smoke Zero Halogen Jacket

Availability: Global
Status: Active

Ships from and sold by A5 IT.

Specifications

Product Overview

Suitable Applications	Fire Resistant Applications With Industrial Control, Raceways Cable trays and ducts, Digital Control, Instruments (4-20ma, 0-10v, ...),low voltage digital control (24v, ...), encoders, control circuits, distributed control system (DCS),programmable logic controller (PLC), Solenoids, Valves, Actuators, Positioners

Construction Details

Outer Jacket1 Table Notes	Highly Flame Retardant Non-Halogenated Polyolefin

Conductor

Element	Pair(s)
Size	12 AWG
Stranding	Solid
Material	BC - Bare Copper

Insulation

Element	Pair(s)
Material	Silicone Rubber
Nom. Thickness	0.034 in (0.86 mm)
Nom. Insulation Diameter	0.151 in (3.84 mm)
Color Code	Black, Red

Outer Jacket

Material	PO - Polyolefin
Nom. Thickness	0.045 in (1.1 mm)
Nom. Diameter	0.392 in (9.96 mm)

Electrical Characteristics

Electricals

Nom. Conductor DCR	1.65 Ohm/1000ft (5.41 Ohm/km)
Max. Current	30 Amps per Conductor at 30oC

Voltage

UL Voltage Rating	300 V

Mechanical Characteristics

Max. Pull Tension	158 lbs (71.7 kg)
Bulk Cable Weight	88 lbs/1000ft (130 kg/km)

Temperature

UL Temperature	105°C
Operating	-20°C to +105°C

Bend Radius

Stationary Min.	1.568 in (39.83 mm)
Installation Min.	1.568 in (39.83 mm)
Flexing Min.	3.136 in (79.65 mm)

Standards and Compliance

Environmental Suitability	Indoor Riser, Indoor, Outdoor, Non-Halogenated, Sunlight Resistance
Flammability / Reaction to Fire	UL 1666 Riser, 1202, IEC 60331-21, BS EN 50200 PH120
NEC / UL Compliance	Article 760, FPLR, ITC, PLTC
European Directive Compliance	EU Directive 2011/65/EU (RoHS 2)
APAC Compliance	China RoHS II (GB/T 26572-2011)
Other Standard Compliance(s)	BS 6387 CWZ, EN50200 PH120
Plenum Number	No
