Product Number: 5020FME

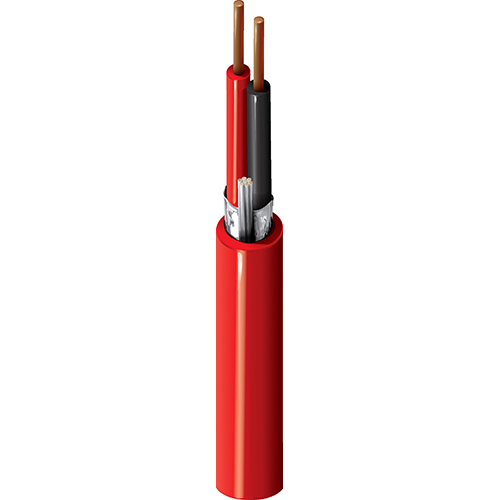

Safe-T-Line, 1 p #12 Str BC, Silicone Ins, OS, LSZH Jkt, FPLR, CWZ, PH120

Safe-T-Line 1 Pair x AWG12 (Solid SBC) Fire resistant Multi-conductor, BS 6387 CWZ, EN 50200 PH120, EN60331-2 , Shielded, Ceramifiable Silicone insulation, Low Smoke Zero Halogen Jacket

Availability: Global
Status: Active

Ships from and sold by A5 IT.

Specifications

Product Overview

Suitable Applications	Fire Resistant Applications With Industrial Control, Raceways Cable trays and ducts, Digital Control, Instruments (4-20ma, 0-10v, ...),low voltage digital control (24v, ...), encoders, control circuits, distributed control system (DCS),programmable logic controller (PLC), Solenoids, Valves, Actuators, Positioners

Construction Details

Outer Jacket1 Table Notes	Highly Flame Retardant Non-Halogenated Polyolefin

Conductor

Element	Pair(s)
Size	12 AWG
Stranding	Solid
Material	BC - Bare Copper

Insulation

Element	Pair(s)
Material	Silicone Rubber
Nom. Thickness	0.034 in (0.86 mm)
Nom. Insulation Diameter	0.151 in (3.84 mm)
Color Code	Red, Black

Outer Shield

Shield Type	Tape
Material	Bi-Laminate (Alum+Poly)
Coverage	100%
Drainwire Type	14 AWG (7x22) TC

Outer Jacket

Material	PO - Polyolefin
Nom. Thickness	0.045 in (1.1 mm)
Nom. Diameter	0.395 in (10.0 mm)

Electrical Characteristics

Electricals

Nom. Conductor DCR	1.65 Ohm/1000ft (5.41 Ohm/km)
Max. Current	30 Amps per Conductor at 30oC

Voltage

UL Voltage Rating	300 V

Mechanical Characteristics

Max. Pull Tension	213 lbs (96.6 kg)
Bulk Cable Weight	104 lbs/1000ft (155 kg/km)

Temperature

UL Temperature	105°C
Operating	-20°C to +105°C

Bend Radius

Stationary Min.	3.95 in (100 mm)
Installation Min.	3.95 in (100 mm)
Flexing Min.	5.925 in (150.5 mm)

Standards and Compliance

Environmental Suitability	Indoor Riser, Indoor, Outdoor, Non-Halogenated, Sunlight Resistance
Flammability / Reaction to Fire	UL 1666 Riser, 1202, IEC 60331-21, BS EN 50200 PH120
NEC / UL Compliance	Article 760, FPLR, ITC, PLTC
European Directive Compliance	EU Directive 2011/65/EU (RoHS 2)
APAC Compliance	China RoHS II (GB/T 26572-2011)
Other Standard Compliance(s)	BS 6387 CWZ, EN50200 PH120
Plenum Number	No
