Product Number: 5002FME

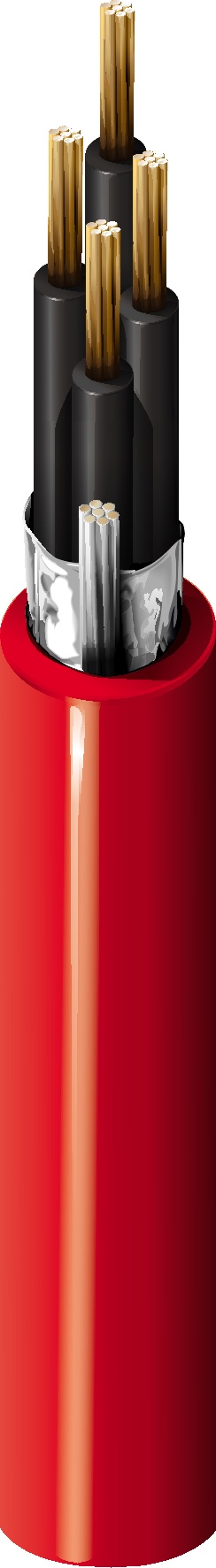

Safe-T-Line, 4 C #12 Str BC, Silicone Ins, OS, LSZH Jkt, FPLR, CWZ, PH120

Safe-T-Line 4 Conductor x AWG12 (7x20 SBC) Fire resistant Multi-conductor, BS 6387 CWZ, EN 50200 PH120, EN60331-2 , Shielded, Ceramifiable Silicone insulation, Low Smoke Zero Halogen Jacket

Availability: Global
Status: Active

Ships from and sold by A5 IT.

Specifications

Product Overview

Suitable Applications	Fire Resistant Applications With Industrial Control, Raceways Cable trays and ducts, Digital Control, Instruments (4-20ma, 0-10v, ...),low voltage digital control (24v, ...), encoders, control circuits, distributed control system (DCS),programmable logic controller (PLC), Solenoids, Valves, Actuators, Positioners

Construction Details

Outer Jacket1 Table Notes	Highly Flame Retardant Non-Halogenated Polyolefin

Conductor

Element	Conductor(s)
No. of Elements	4
Size	12 AWG
Stranding	7x20
Material	BC - Bare Copper

Insulation

Element	Conductor(s)
Material	Silicone Rubber
Nom. Thickness	0.034 in (0.86 mm)
Nom. Insulation Diameter	0.161 in (4.09 mm)
Color Code	Red, Black, Black #3, Black #4

Outer Shield

Shield Type	Tape
Material	Bi-Laminate (Alum+Poly)
Coverage	100%
Drainwire Type	14 AWG (7x22) TC

Outer Jacket

Material	PO - Polyolefin
Nom. Thickness	0.045 in (1.1 mm)
Nom. Diameter	0.484 in (12.3 mm)
Ripcord	Yes

Electrical Characteristics

Electricals

Nom. Conductor DCR	1.68 Ohm/1000ft (5.51 Ohm/km)
Max. Current	24 Amps per Conductor at 30oC

Voltage

UL Voltage Rating	300 V

Mechanical Characteristics

Max. Pull Tension	402 lbs (182 kg)
Bulk Cable Weight	182 lbs/1000ft (271 kg/km)

Temperature

UL Temperature	105°C
Operating	-20°C to +105°C

Bend Radius

Stationary Min.	4.84 in (123 mm)
Installation Min.	4.84 in (123 mm)
Flexing Min.	7.26 in (184 mm)

Standards and Compliance

Environmental Suitability	Indoor Riser, Indoor, Outdoor, Non-Halogenated, Sunlight Resistance
Flammability / Reaction to Fire	UL 1666 Riser, 1202, IEC 60331-23, BS EN 50200 PH120
NEC / UL Compliance	Article 760, FPLR, ITC, PLTC
European Directive Compliance	EU Directive 2011/65/EU (RoHS 2)
APAC Compliance	China RoHS II (GB/T 26572-2011)
Other Standard Compliance(s)	BS 6387 CWZ, EN50200 PH120
Plenum Number	No
