Product Number: 5000FME

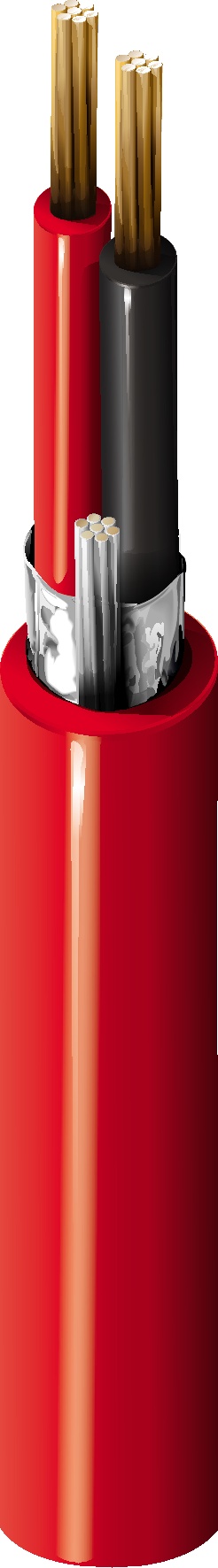

Safe-T-Line, 1 Pair #12 Str BC, Silicone Ins, OS, LSZH Jkt, FPLR, CWZ, PH120

Safe-T-Line 1 Pair x AWG12 (7x22 SBC) Fire resistant Multi-conductor, BS 6387 CWZ, EN 50200 PH120, EN60331-2 , Shielded, Ceramifiable Silicone insulation, Low Smoke Zero Halogen Jacket

Availability: Global
Status: Active

Ships from and sold by A5 IT.

Specifications

Product Overview

Suitable Applications	Fire Resistant Applications With Industrial Control, Raceways Cable trays and ducts, Digital Control, Instruments (4-20ma, 0-10v, ...),low voltage digital control (24v, ...), encoders, control circuits, distributed control system (DCS),programmable logic controller (PLC), Solenoids, Valves, Actuators, Positioners

Construction Details

Overall Cable Diameter (Nominal)	0.417 in (10.6 mm)

Conductor

Element	Pair(s)
No. of Elements	1
Size	12 AWG
Stranding	7x20
Material	BC - Bare Copper

Insulation

Element	Pair(s)
Material	Silicone Rubber
Nom. Thickness	0.034 in (0.86 mm)
Nom. Insulation Diameter	0.161 in (4.09 mm)
Color Code	Red, Black

Outer Shield

Shield Type	Tape
Material	Bi-Laminate (Alum+Poly)
Coverage	100%
Drainwire Type	14 AWG (7x22) TC

Inner Jacket

Nom. Diameter	0.417 in (10.6 mm)

Outer Jacket

Material	LSZH - Low Smoke Zero Halogen (Flame Retardant)
Nom. Thickness	0.045 in (1.1 mm)
Nom. Diameter	0.417 in

Electrical Characteristics

Electricals

Element	Pair(s)
Nom. Conductor DCR	1.72 Ohm/1000ft
Max. Current	21 Amps per Conductor at 25oC

Voltage

UL Voltage Rating	300 V

Mechanical Characteristics

Max. Pull Tension	182 lbs (82.6 kg)
Bulk Cable Weight	109 lbs/1000ft

Temperature

UL Temperature	105°C
Operating	-20°C To 105°C

Bend Radius

Stationary Min.	4.17 in (106 mm)
Installation Min.	4.17 in (106 mm)

Standards and Compliance

Environmental Suitability	Indoor, Outdoor, Sunlight Resistance
Flammability / Reaction to Fire	UL 1666 riser, 1202, IEC 60331-23, BS EN 50200 PH120
NEC / UL Compliance	Article 760, FPLR, ITC, PLTC
European Directive Compliance	EU Directive 2011/65/EU (RoHS 2)
APAC Compliance	China RoHS II (GB/T 26572-2011)
Other Standard Compliance(s)	EN50200 (PH120)
Plenum Number	No
