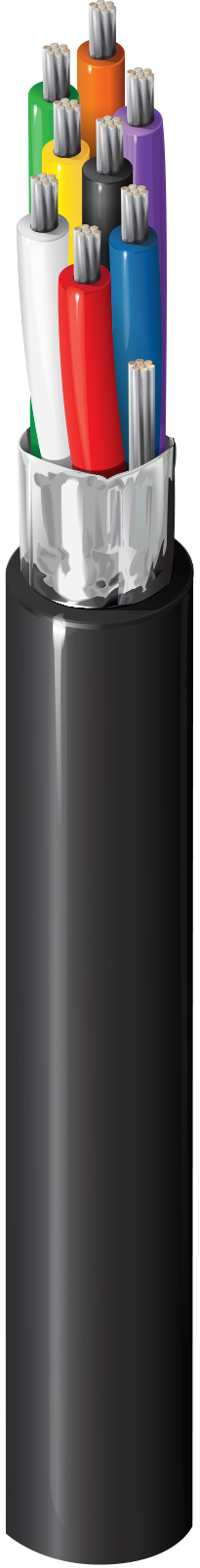

Product Number: 1213A

Instrument Medical Interconnect, #26-8c, TC, PVC, O/A Foil, PVC Jkt, CL2X

Computer, Instrument & Medical Interconnect, 26 AWG stranded (7x34) tinned copper conductors, PVC insulation, Duofoil® shield (100% coverage), 26 AWG stranded tinned copper drain wire, PVC jacket.

Availability: Global
Status: Active
Orderable items: 2

Ships from and sold by A5 IT.

Part numbers

1213A is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.

Item #	Color	Putup Type	Length	UPC	Order
1213A 010500	Black	Reel	500 ft	612825108672	Order online
1213A 0101000	Black	Reel	1,000 ft	612825108665	Order online

Specifications

Product Overview

Suitable Applications	for use with Molex SEMMCONN/AMP SDL connectors; computer communications; medical electronics interconnects; low voltage analog signals (4-20ma, 0-10v, ...); low voltage digital control (24v, ...); line level audio; panel wiring

Construction Details

Conductor

Element	Conductor(s)
No. of Elements	8
Size	26
Stranding	7x34
Material	TC - Tinned Copper

Insulation

Material	PVC - Polyvinyl Chloride
Nom. Thickness	0.015 in (0.38 mm)
Nom. Insulation Diameter	0.048 in (1.2 mm)
Color Code	Black, Purple, Red, Blue, Green, Orange, Yellow, White

Outer Shield

Shield Type	Tape
Material	Tri-Laminate (Alum+Poly+Alum)
Coverage	100%
Drainwire Type	26 AWG (7x34) TC

Outer Jacket

Material	PVC - Polyvinyl Chloride
Nom. Thickness	0.0385 in (0.978 mm)
Nom. Diameter	0.239 in (6.07 mm)

Electrical Characteristics

Nom Outer Shield DCR	15.5 Ohm/1000ft (50.9 Ohm/km)

Electricals

Nom. Conductor DCR	44.4 Ohm/1000ft
Nom. Capacitance Cond-to-Cond	26 pF/ft (85 pF/m)
Nom. Velocity of Prop.	60%
Max. Current	1.12 Amps per Conductor at 25oC

Voltage

UL Voltage Rating	300 V

Mechanical Characteristics

Max. Pull Tension	28.8 lbs (13.1 kg)
Bulk Cable Weight	21 lbs/1000ft

Temperature

UL Temperature	90°C
Operating	-20°C To +90°C

Bend Radius

Stationary Min.	2.39 in (60.7 mm)
Installation Min.	2.39 in (60.7 mm)

Standards and Compliance

Environmental Suitability	Sunlight Resistance, Burial
Flammability / Reaction to Fire	VW-1
CPR Compliance	CPR Euroclass: Eca
NEC / UL Compliance	Article 725, CL2X
AWM Compliance	AWM 2464
European Directive Compliance	EU CE Mark
UK Regulation Compliance	UKCA Mark
