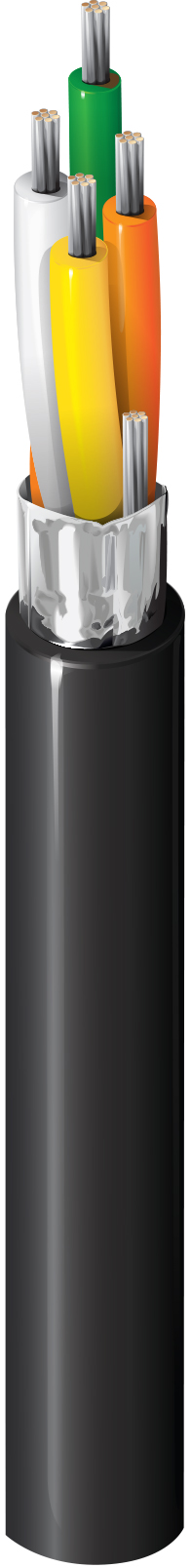

Product Number: 1211A

Instrument Medical Interconnect, #26-4c, TC, PVC, O/A Foil, PVC Jkt, CL2X

Computer, Instrument & Medical Interconnect, 26 AWG stranded (7x34) tinned copper conductors, PVC insulation, Duofoil® shield (100% coverage), 26 AWG stranded tinned copper drain wire, PVC jacket.

Availability: Global
Status: Active
Orderable items: 2

Ships from and sold by A5 IT.

Part numbers

1211A is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.

Item #	Color	UPC	Footnote	Order
1211A 0101000	Black	612825108443	C	Order online
1211A 010500	Black	612825108450	—	Order online

Specifications

Product Overview

Suitable Applications	for use with Molex SEMMCONN/AMP SDL connectors; computer communications; medical electronics interconnects; low voltage analog signals (4-20ma, 0-10v, ...); low voltage digital control (24v, ...); line level audio; panel wiring

Construction Details

Overall Cable Diameter (Nominal)	0.195 in (4.95 mm)

Conductor

Element	Conductor(s)
No. of Elements	4
Size	26 AWG
Stranding	7x34
Material	TC - Tinned Copper

Insulation

Element	Conductor(s)
Material	PVC - Polyvinyl Chloride
Nom. Thickness	0.015 in (0.38 mm)
Nom. Insulation Diameter	0.048 in mm
Color Code	White, Yellow, Orange, Green

Outer Shield

Shield Type	Tape
Material	Tri-Laminate (Alum+Poly+Alum)
Coverage	100%
Drainwire Type	26 AWG (7x34) TC

Outer Jacket

Material	PVC - Polyvinyl Chloride
Nom. Thickness	0.036 in (0.91 mm)
Nom. Diameter	0.195 in (4.95 mm)

Electrical Characteristics

Nom Outer Shield DCR	16.51 Ohm/1000ft (54.17 Ohm/km)

Electricals

Nom. Conductor DCR	44.4 Ohm/1000ft
Nom. Capacitance Cond-to-Cond	26 pF/ft (85 pF/m)
Nom. Velocity of Prop.	60%
Max. Current	1.8 Amps per Conductor at 25oC

Voltage

UL Voltage Rating	300 V

Mechanical Characteristics

Max. Pull Tension	14 lbs (6.4 kg)
Bulk Cable Weight	21 lbs/1000ft

Temperature

UL Temperature	90°C
Operating	-20°C To +90°C

Bend Radius

Stationary Min.	1.95 in (49.5 mm)
Installation Min.	1.95 in (49.5 mm)

Standards and Compliance

Environmental Suitability	Indoor
Flammability / Reaction to Fire	VW-1
CPR Compliance	CPR Euroclass: Eca
NEC / UL Compliance	Article 725, CL2X
AWM Compliance	AWM 2464
European Directive Compliance	EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
UK Regulation Compliance	UKCA Mark
APAC Compliance	China RoHS II (GB/T 26572-2011)
