Product Number: RTB8C0.5

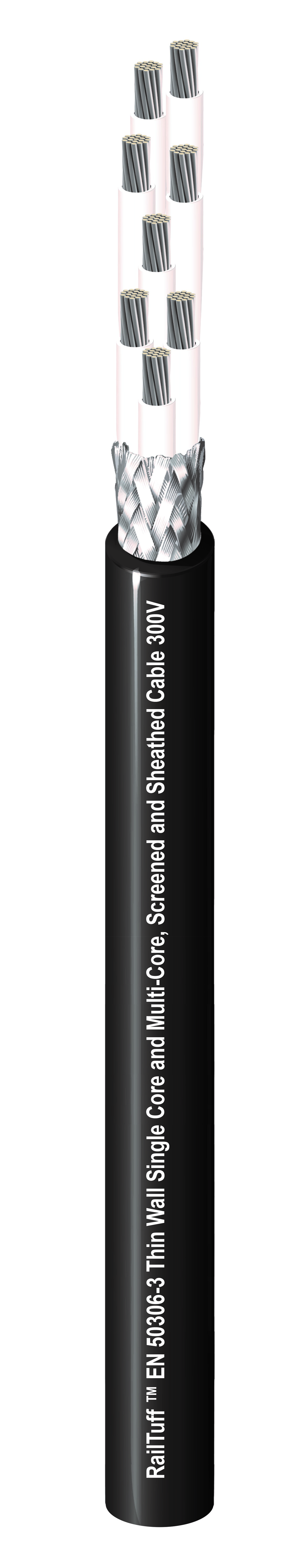

RailTuffTM Thin wall cable 300V 8 C 0.5 mm2 TC, XLPO Ins, TCBS, XLPO Outer Jkt

Name: Belden RTB8C0.5
Brand: Belden
SKU: RTB8C0.5

RailTuffTM Thin wall cable 300V 8 Cores 0.5 mm2 Tinned Copper, XLPO Insulation, Tinned Copper Braid Shield, XLPO Outer Jacket

Ships from and sold by A5 IT.

Specifications

Suitable Applications	Applicable for fixed or moderate flexing wiring inside Railway Rolling Stock like High-Speed Trains (CRH, Shinkansen, ICE, TGV), Metro, locomotives, and trolley buses, etc

Overall Cable Diameter (Nominal)	6.35 ± 0.25 mm

Size	0.5 mm2
Material	TC - Tinned Copper

Material	XLP, XLPO, XLPE
Nom. Insulation Diameter	1.42 mm (0.0559 in)
Color Code	White#1, White#2, White#3, White#4, White#5, White#6, White#7, White#8

Shield Type	Braid
Material	Tinned Copper (TC)

Material	XLP, XLPO, XLPE
Nom. Diameter	6.35 mm (0.250 in)

Bulk Cable Weight	79.1 kg/km (53.2 lbs/1000ft)

Operating	-40°C to +90°C

Stationary Min.	64 mm (2.5 in)
Installation Min.	64 mm (2.5 in)

Environmental Suitability	Indoor, Outdoor, Non-Halogenated
Flammability / Reaction to Fire	IEC 60332-1-2, IEC 60332-2-25, EN 50305
European Halogen Free Standards	IEC 60754-2 - Halogen Acid Gas Amount - Max. Conductivity = 10 μS/mm, IEC 60754-2 - Halogen Acid Gas Amount - Min. pH = 4.3, IEC 61034-2 - Smoke Density Min. Transmittance = 70%
