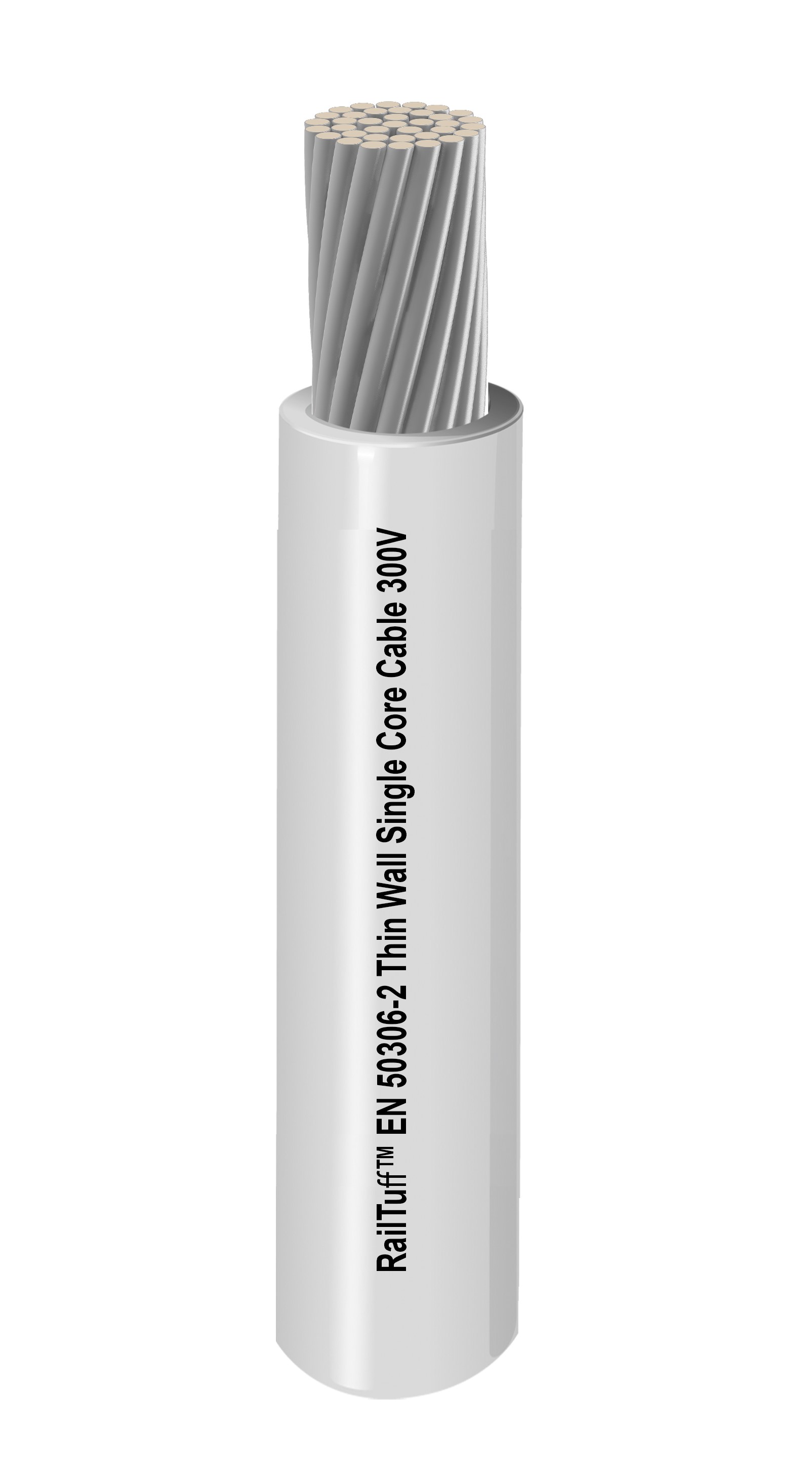

RailTuffTM Thin wall cable 300V 1 C 0.75 mm2 Str TC, XLPO Ins
RailTuffTM Thin wall cable 300V 1 Core 0.75 mm2 Stranded Tinned Copper, XLPO Insulation
- Availability
- Global
- Status
- Active
Specifications
Product Overview
| Suitable Applications | Applicable for fixed or moderate flexing wiring inside Railway Rolling Stock like High-Speed Trains (CRH, Shinkansen, ICE, TGV), Metro, locomotives, and trolley buses, etc |
|---|
Construction Details
| Insulation Table Notes | D.C. stability at 300Vdc in 3% NaCl solution at (85±2)°C for 240h : No breakdown |
|---|---|
| Overall Cable Diameter (Nominal) | 1.62 ± 0.03 mm |
Conductor
| Size | 0.75 mm2 |
|---|---|
| Stranding | 37x0.16 mm |
| Material | TC - Tinned Copper |
Insulation
| Material | XLP, XLPO, XLPE |
|---|---|
| Nom. Thickness | 0.27 mm (0.011 in) |
| Nom. Insulation Diameter | 1.62 mm (0.0638 in) |
| Color Code | White#1 |
Electrical Characteristics
Voltage
| Breakdown Voltage | 2.5kVac/5min |
|---|
Mechanical Characteristics
| Bulk Cable Weight | 8.4 kg/km (5.6 lbs/1000ft) |
|---|
Temperature
| Operating | -40°C to +120°C |
|---|
Bend Radius
| Stationary Min. | 6 mm (0.24 in) |
|---|---|
| Installation Min. | 5 mm (0.20 in) |
Standards and Compliance
| Flammability / Reaction to Fire | IEC 60332-1-2, EN 50305 |
|---|---|
| European Halogen Free Standards | IEC 60754-2 - Halogen Acid Gas Amount - Max. Conductivity = 10 μS/mm, IEC 60754-2 - Halogen Acid Gas Amount - Min. pH = 4.3, IEC 61034-2 - Smoke Density Min. Transmittance = 70% |
History
| Update and Revision | Revision Number: 0.33 Revision Date: 07-15-2024 |
|---|
