Product Number: RMF1C6

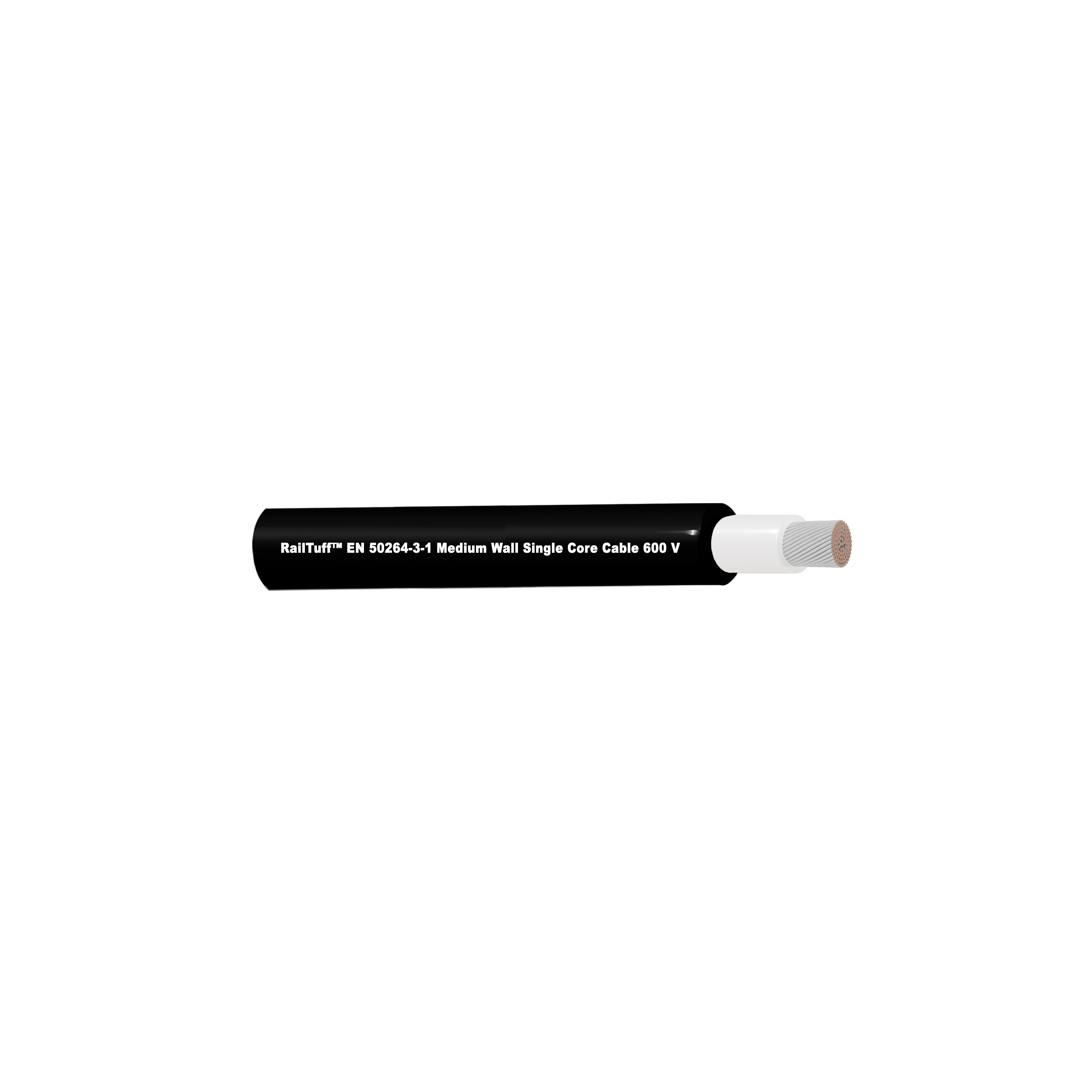

RailTuffTM Medium wall cable 600V 1 C 6 mm2 Str TC,XLPO Ins

Name: Belden RMF1C6
Brand: Belden
SKU: RMF1C6

RailTuffTM Medium wall cable 600V 1 Core 6 mm2 Stranded Tinned Copper, XLPO Insulation

Ships from and sold by A5 IT.

Specifications

Suitable Applications	Applicable for fixed or moderate flexing wiring inside Railway Rolling Stock like High-Speed Trains (CRH, Shinkansen, ICE, TGV), Metro, locomotives, and trolley buses, etc

Insulation Table Notes	D.C. stability at 1.5kVdc in 3% NaCl solution at (85±2)°C for 240h : No breakdown
Overall Cable Diameter (Nominal)	4.65 ± 0.15 mm

Breakdown Voltage	3.5kVac/5min

Bulk Cable Weight	63.7 kg/km (42.8 lbs/1000ft)

Operating	-40°C to +90°C

Stationary Min.	19 mm (0.75 in)
Installation Min.	14 mm (0.55 in)

Flammability / Reaction to Fire	IEC 60332-1-2/EN 50265-2-1 & EN 50305 Clause 9.1.2
CENELEC Compliance	EN 50264-3-1, EN 45545-2
European Halogen Free Standards	IEC 60754-2 - Halogen Acid Gas Amount - Max. Conductivity = 10 μS/mm, IEC 60754-2 - Halogen Acid Gas Amount - Min. pH = 4.3, IEC 61034-2 - Smoke Density Min. Transmittance = 70%
Other Standard Compliance(s)	TJ/CL 313
