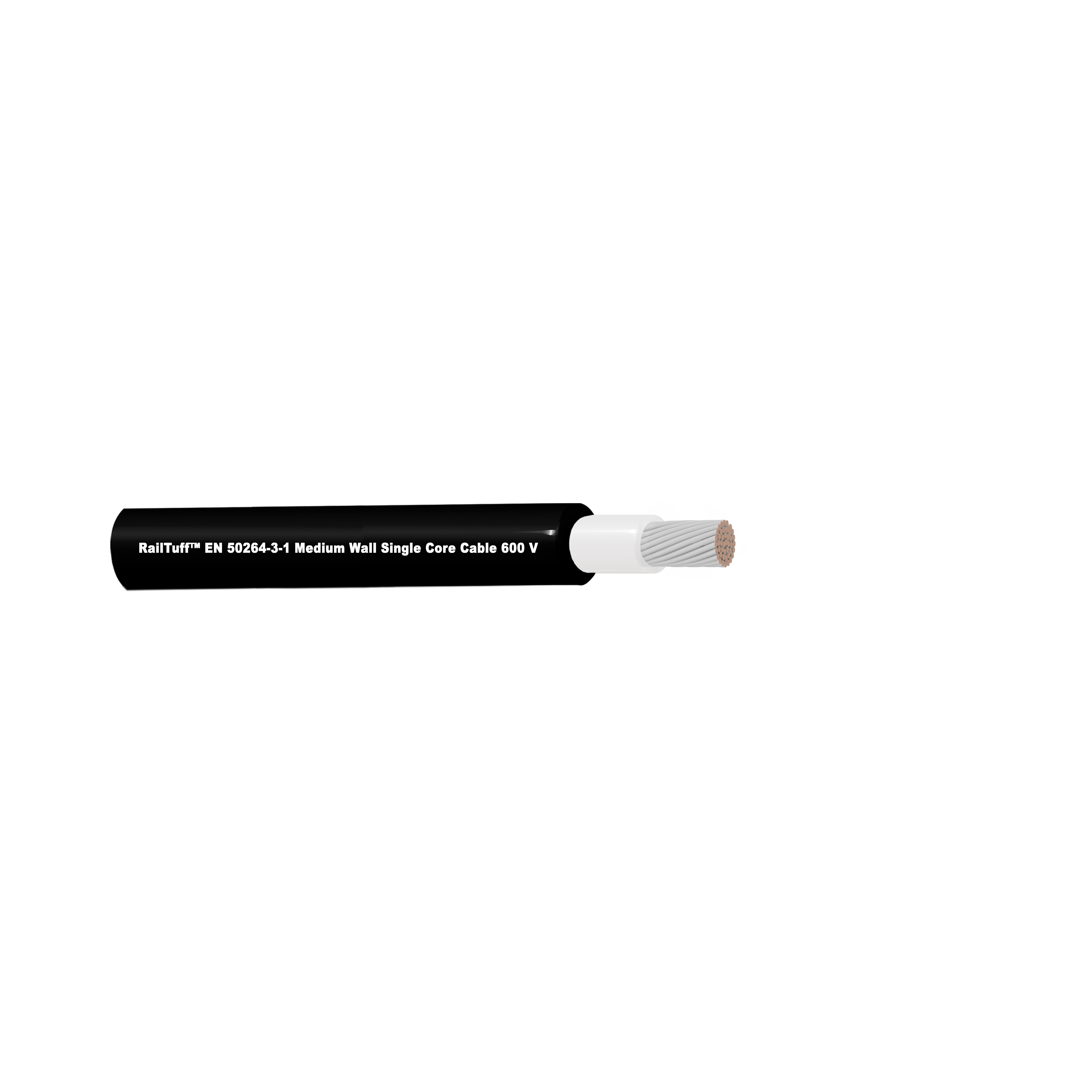

RailTuffTM Medium wall cable 600V 1 C 240 mm2 Str TC,XLPO Ins
RailTuffTM Medium wall cable 600V 1 Core 240 mm2 Stranded Tinned Copper, XLPO Insulation
- Availability
- Global
- Status
- Active
Specifications
Product Overview
| Suitable Applications | Applicable for fixed or moderate flexing wiring inside Railway Rolling Stock like High-Speed Trains (CRH, Shinkansen, ICE, TGV), Metro, locomotives, and trolley buses, etc |
|---|
Construction Details
| Insulation Table Notes | D.C. stability at 1.5kVdc in 3% NaCl solution at (85±2)°C for 240h : No breakdown |
|---|---|
| Overall Cable Diameter (Nominal) | 25 ± 0.50 mm |
Conductor
| Size | 240 mm2 |
|---|---|
| Stranding | 1813x0.40 mm |
| Stranding Class | Class 5 |
| Material | TC - Tinned Copper |
Insulation
| Material | XLP, XLPO, XLPE |
|---|---|
| Nom. Thickness | 1.70 mm (0.0669 in) |
| Nom. Insulation Diameter | 25.00 mm (0.9843 in) |
| Color Code | Black#1 |
Electrical Characteristics
Voltage
| Breakdown Voltage | 3.5kVac/5min |
|---|
Mechanical Characteristics
| Bulk Cable Weight | 2173 kg/km (1460 lbs/1000ft) |
|---|
Temperature
| Operating | -40°C to +90°C |
|---|
Bend Radius
| Stationary Min. | 125 mm (4.92 in) |
|---|---|
| Installation Min. | 100 mm (3.9 in) |
Standards and Compliance
| Flammability / Reaction to Fire | IEC 60332-1-2/EN 50265-2-1 & IEC 60332-3-24/EN 50266-2-4 |
|---|---|
| CENELEC Compliance | EN 50264-3-1, EN 45545-2 |
| European Halogen Free Standards | IEC 60754-2 - Halogen Acid Gas Amount - Max. Conductivity = 10 μS/mm, IEC 60754-2 - Halogen Acid Gas Amount - Min. pH = 4.3, IEC 61034-2 - Smoke Density Min. Transmittance = 70% |
| Other Standard Compliance(s) | TJ/CL 313 |
Product Notes
| Notes | EMEA PN: RMF1C240; |
|---|
History
| Update and Revision | Revision Number: 0.53 Revision Date: 04-15-2026 |
|---|
