Lead Wire, #8 Str TC, PVC Ins, AWM 1034
UL AWM ST 10434 VW-1 8AWG / 168x30 T
- Availability
- EMEA
- Status
- Active
- Orderable items
- 1
Part numbers
BE43780 is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.
| Item # | Color | Putup Type | Length | EAN | Order |
|---|---|---|---|---|---|
| BE43780.001000 | Beige | Reel | 1,000 m | 8719605026538 | Order online |
Specifications
Product Overview
| Suitable Applications | Rated temperature UL max 80 C and CSA max 105 C; Rated voltage max 600 V ac, 750 V dc and 2500 Volts peak for electronic use only; Interal Wiring of Applicances; or Internal Wiring of Appliances where exposed to oil at a temperature not exceeding 60 C |
|---|

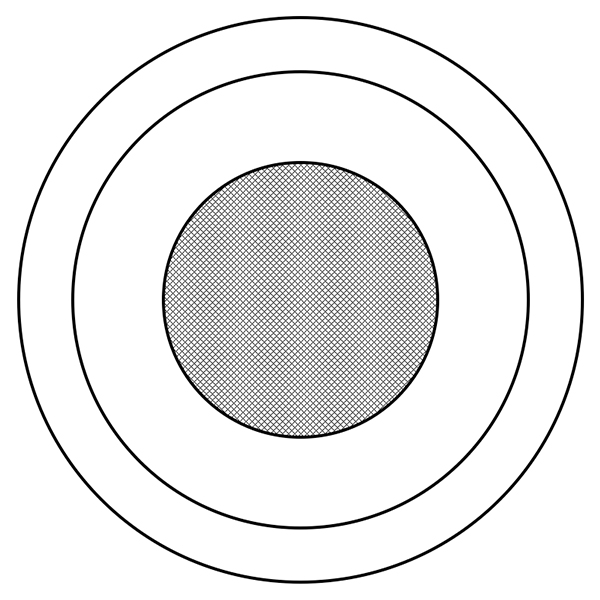

Construction Details
Conductor
| Size | 8 |
|---|---|
| Stranding | 168x30 |
| Material | TC - Tinned Copper |
Insulation
| Material | Nom. Thickness | Nom. Insulation Diameter | Color Code |
|---|---|---|---|
| PVC - Polyvinyl Chloride | 6.8 mm (0.27 in) | Yellow/Green | |
| PVC - Polyvinyl Chloride | 0.6 mm (0.024 in) | 8 mm (0.31 in) |
Mechanical Characteristics
Temperature
| UL Temperature | 80°C |
|---|
Standards and Compliance
| Environmental Suitability | Indoor |
|---|---|
| AWM Compliance | AWM 10434 |
History
| Update and Revision | Revision Number: 0.150 Revision Date: 09-07-2025 |
|---|
