Lead Wire, #8 Str BC, PVC Ins, AWM 1017
UL AWM ST1017 VW1 8AWG/168X30B CSA TEW FT1
- Availability
- EMEA
- Status
- Active
- Orderable items
- 12
Part numbers
BE41508 is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.
| Item # | Color | Putup Type | Length | EAN | Order |
|---|---|---|---|---|---|
| BE41508.00300 | Black | Reel | 300 m | 8719605026170 | Order online |
| BE41508.001500 | Black | Reel | 1,500 m | 8719605026163 | Order online |
| BE41508.05300 | Blue | Reel | 300 m | 8719605026279 | Order online |
| BE41508.051500 | Blue | Reel | 1,500 m | 8719605026262 | Order online |
| BE41508.03300 | Brown | Reel | 300 m | 8719605026231 | Order online |
| BE41508.031500 | Brown | Reel | 1,500 m | 8719605026224 | Order online |
| BE41508.04300 | Red | Reel | 300 m | 8719605026255 | Order online |
| BE41508.041500 | Red | Reel | 1,500 m | 8719605026248 | Order online |
| BE41508.02300 | Violet | Reel | 300 m | 8719605026217 | Order online |
| BE41508.021500 | Violet | Reel | 1,500 m | 8719605026200 | Order online |
| BE41508.01300 | Yellow, Green Ring | Reel | 300 m | 8719605026194 | Order online |
| BE41508.011500 | Yellow, Green Ring | Reel | 1,500 m | 8719605026187 | Order online |
Specifications
Product Overview
| Suitable Applications | UL Appliance Wiring Material Subject 758 Style 1017, 80C, 600 Vac.; CSA Type TEW, FT1 |
|---|

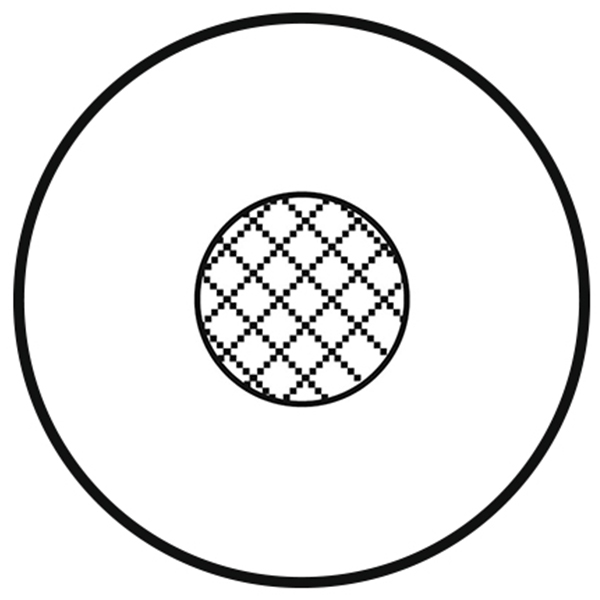

Construction Details
Conductor
| Size | 8 |
|---|---|
| Stranding | Stranded |
| Material | BC - Bare Copper |
Insulation
| Material | PVC - Polyvinyl Chloride |
|---|---|
| Nom. Thickness | 1.14 mm (0.0449 in) |
| Nom. Insulation Diameter | 6.7 mm (0.26 in) |
Electrical Characteristics
Electricals
| Max. Conductor DCR | 2.06 Ohm/km |
|---|
Voltage
| UL Voltage Rating | 600 V |
|---|
Mechanical Characteristics
Temperature
| UL Temperature | 80°C |
|---|
Standards and Compliance
| Environmental Suitability | Indoor |
|---|---|
| Flammability / Reaction to Fire | VW-1 |
| AWM Compliance | AWM 1017 |
| CEC / C(UL) Compliance | TEW. |
| European Directive Compliance | EU CE Mark |
History
| Update and Revision | Revision Number: 0.169 Revision Date: 09-07-2025 |
|---|
