Lead Wire, #12 Str TC, PVC Ins, AWM 1015
UL AWM ST1015 VW1 12AWG/56X29T CSA TR32
- Availability
- EMEA
- Status
- Active
- Orderable items
- 7
Part numbers
BE41490 is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.
| Item # | Color | Putup Type | Length | Order |
|---|---|---|---|---|
| BE41490.00300 | Black | Reel | 300 m | Order online |
| BE41490.05300 | Blue | Reel | 300 m | Order online |
| BE41490.04300 | Gray | Reel | 300 m | Order online |
| BE41490.06300 | Purple | Reel | 300 m | Order online |
| BE41490.03300 | Red | Reel | 300 m | Order online |
| BE41490.02300 | Yellow | Reel | 300 m | Order online |
| BE41490.01300 | Yellow, Green Stripe | Reel | 300 m | Order online |
Specifications
Product Overview
| Suitable Applications | UL Appliance Wiring Material Subject 758 Style 1015, 80C, 600 volt.; IEC-65 Internal wiring; CSA-C22.2 no. 16 Type TR-32 90C, 1400 volt peak |
|---|

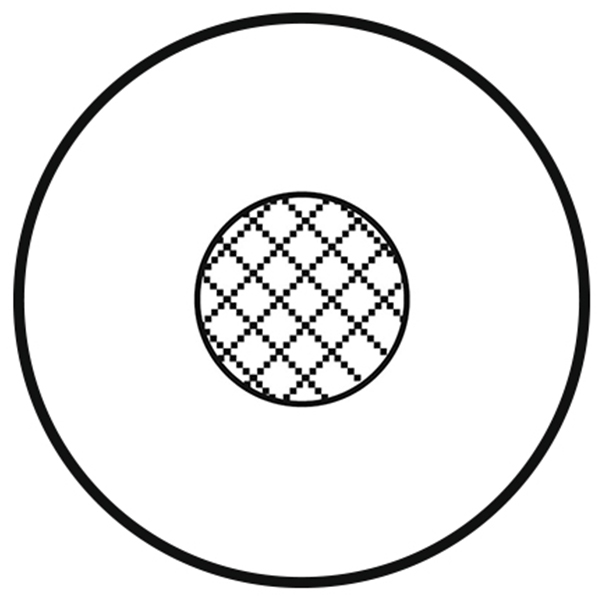

Construction Details
Conductor
| Size | 12 |
|---|---|
| Stranding | Stranded |
| Material | TC - Tinned Copper |
Insulation
| Material | PVC - Polyvinyl Chloride |
|---|---|
| Nom. Thickness | 0.79 mm (0.031 in) |
| Nom. Insulation Diameter | 4.22 mm (0.166 in) |
Electrical Characteristics
Electricals
| Max. Conductor DCR | 5.1 Ohm/km |
|---|
Voltage
| UL Voltage Rating | 600 V |
|---|
Mechanical Characteristics
Temperature
| UL Temperature | 80°C |
|---|
Standards and Compliance
| Environmental Suitability | Indoor |
|---|---|
| Flammability / Reaction to Fire | VW-1 |
| AWM Compliance | AWM 1015 |
| European Directive Compliance | EU CE Mark |
History
| Update and Revision | Revision Number: 0.160 Revision Date: 09-07-2025 |
|---|
