Lead Wire, 0.75mm2 Str BC, PVC Ins, 70°C
24x0.2B PVC VDMS 70C
- Availability
- EMEA
- Status
- Active
- Orderable items
- 10
Part numbers
BE41424 is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.
| Item # | Color | Putup Type | Length | EAN | Order |
|---|---|---|---|---|---|
| BE41424.004000 | Black | Reel | 4,000 m | 8719605025685 | Order online |
| BE41424.094000 | Blue | Reel | 4,000 m | 8719605025777 | Order online |
| BE41424.044000 | Brown | Reel | 4,000 m | 8719605025722 | Order online |
| BE41424.084000 | Gray | Reel | 4,000 m | 8719605025760 | Order online |
| BE41424.054000 | Green | Reel | 4,000 m | 8719605025739 | Order online |
| BE41424.064000 | Orange | Reel | 4,000 m | 8719605025746 | Order online |
| BE41424.074000 | Red | Reel | 4,000 m | 8719605025753 | Order online |
| BE41424.034000 | Violet | Reel | 4,000 m | 8719605025715 | Order online |
| BE41424.014000 | White | Reel | 4,000 m | 8719605025692 | Order online |
| BE41424.024000 | Yellow | Reel | 4,000 m | 8719605025708 | Order online |
Specifications
Product Overview
| Suitable Applications | IEC 189-3, VMDS 70C |
|---|

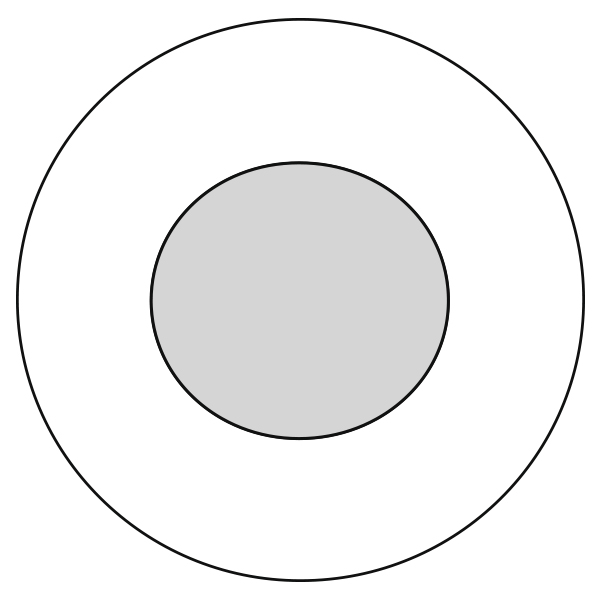

Construction Details
| Insulation Table Notes | TI1 |
|---|
Conductor
| Stranding | Stranded |
|---|---|
| Material | BC - Bare Copper |
Insulation
| Material | PVC - Polyvinyl Chloride |
|---|---|
| Nom. Insulation Diameter | 1.77 mm (0.0697 in) |
Electrical Characteristics
Electricals
| Max. Conductor DCR | 26 Ohm/km |
|---|
Standards and Compliance
| Environmental Suitability | Indoor |
|---|---|
| European Directive Compliance | EU CE Mark |
History
| Update and Revision | Revision Number: 0.148 Revision Date: 02-20-2026 |
|---|
