Lead Wire, 0.2mm2 Str BC, PVC Ins, 70°C
7x0.2B PVC VDMS 70C
- Availability
- EMEA
- Status
- Active
- Orderable items
- 11
Part numbers
BE41230 is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.
| Item # | Color | Putup Type | Length | EAN | Order |
|---|---|---|---|---|---|
| BE41230.002400 | Black | Reel | 2,400 m | 8719605025135 | Order online |
| BE41230.005000 | Black | Reel | 5,000 m | 8719605025142 | Order online |
| BE41230.092400 | Blue | Reel | 2,400 m | 8719605025234 | Order online |
| BE41230.042400 | Brown | Reel | 2,400 m | 8719605025180 | Order online |
| BE41230.082400 | Gray | Reel | 2,400 m | 8719605025227 | Order online |
| BE41230.052400 | Green | Reel | 2,400 m | 8719605025197 | Order online |
| BE41230.062400 | Orange | Reel | 2,400 m | 8719605025203 | Order online |
| BE41230.072400 | Red | Reel | 2,400 m | 8719605025210 | Order online |
| BE41230.032400 | Violet | Reel | 2,400 m | 8719605025173 | Order online |
| BE41230.012400 | White | Reel | 2,400 m | 8719605025159 | Order online |
| BE41230.022400 | Yellow | Reel | 2,400 m | 8719605025166 | Order online |
Specifications
Product Overview
| Suitable Applications | IEC 189-3, VMDS 70C |
|---|

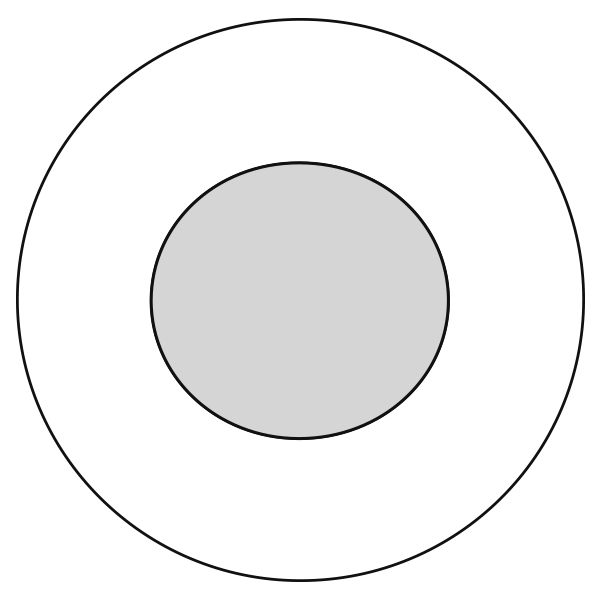

Construction Details
Conductor
| Stranding | Stranded |
|---|---|
| Material | BC - Bare Copper |
Insulation
| Material | PVC - Polyvinyl Chloride |
|---|---|
| Nom. Insulation Diameter | 1.7 mm (0.067 in) |
Electrical Characteristics
Electricals
| Max. Conductor DCR | 87.2 Ohm/km |
|---|
Standards and Compliance
| Environmental Suitability | Indoor |
|---|---|
| European Directive Compliance | EU CE Mark |
History
| Update and Revision | Revision Number: 0.153 Revision Date: 09-07-2025 |
|---|
