Lead Wire, 0.4mm2 Str BC, PVC Ins, 70°C
14x0.2B PVC VMDS 70C
- Availability
- EMEA
- Status
- Active
- Orderable items
- 10
Part numbers
BE41206 is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.
| Item # | Color | Putup Type | Length | EAN | Order |
|---|---|---|---|---|---|
| BE41206.004000 | Black | Reel | 4,000 m | 8719605025036 | Order online |
| BE41206.084000 | Blue | Reel | 4,000 m | 8719605025098 | Order online |
| BE41206.184000 | Brown | Reel | 4,000 m | 8719605025128 | Order online |
| BE41206.074000 | Gray | Reel | 4,000 m | 8719605025081 | Order online |
| BE41206.044000 | Green | Reel | 4,000 m | 8719605025050 | Order online |
| BE41206.124000 | Orange | Reel | 4,000 m | 8719605025104 | Order online |
| BE41206.174000 | Red | Reel | 4,000 m | 8719605025111 | Order online |
| BE41206.064000 | Violet | Reel | 4,000 m | 8719605025074 | Order online |
| BE41206.014000 | White | Reel | 4,000 m | 8719605025043 | Order online |
| BE41206.054000 | Yellow | Reel | 4,000 m | 8719605025067 | Order online |
Specifications
Product Overview
| Suitable Applications | VMDS 70C |
|---|

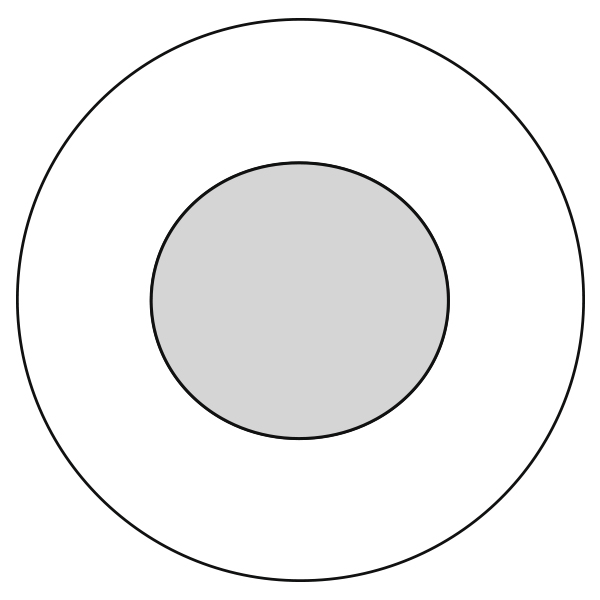

Construction Details
Conductor
| Stranding | Stranded |
|---|---|
| Material | BC - Bare Copper |
Insulation
| Material | PVC - Polyvinyl Chloride |
|---|---|
| Nom. Insulation Diameter | 1.85 mm (0.0728 in) |
Electrical Characteristics
Electricals
| Max. Conductor DCR | 45.5 Ohm/km |
|---|
Standards and Compliance
| Environmental Suitability | Indoor |
|---|
History
| Update and Revision | Revision Number: 0.148 Revision Date: 09-07-2025 |
|---|
