BE41203

Product Number: BE41203

Lead Wire, #24 Str TC, PVC Ins, AWM 1007

UL AWM ST1007 VW1 20AWG/16x32T CSA TR 64

Availability
EMEA
Status
Active
Orderable items
12
Request a quoteOrder options (12)

Ships from and sold by A5 IT.

Part numbers

BE41203 is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.

Item #ColorPutup TypeLengthOrder
BE41203.001850BlackReel1,850 mOrder online
BE41203.111850BlueReel1,850 mOrder online
BE41203.051850BrownReel1,850 mOrder online
BE41203.091850GrayReel1,850 mOrder online
BE41203.061850GreenReel1,850 mOrder online
BE41203.071850OrangeReel1,850 mOrder online
BE41203.101850PinkReel1,850 mOrder online
BE41203.081850RedReel1,850 mOrder online
BE41203.041850VioletReel1,850 mOrder online
BE41203.021850WhiteReel1,850 mOrder online
BE41203.031850YellowReel1,850 mOrder online
BE41203.011850Yellow, Green RingReel1,850 mOrder online

Specifications

Product Overview

Suitable ApplicationsUL Appliance Wiring Material Subject 758 Style 1007, 80C, 300 Volt.; CSA-C22.2 no. 16 Type TR-64 90C, 600 Volt peak.

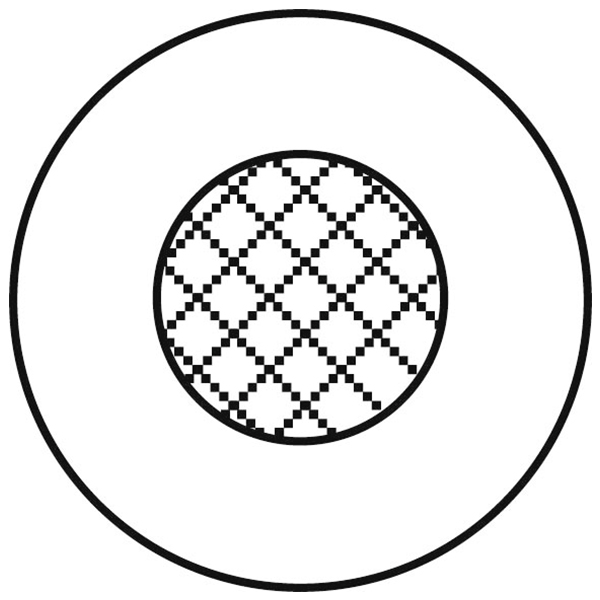

Construction Details

Conductor

Size20
StrandingStranded
MaterialTC - Tinned Copper

Insulation

MaterialPVC - Polyvinyl Chloride
Nom. Thickness0.38 mm (0.015 in)
Nom. Insulation Diameter1.9 mm (0.075 in)

Electrical Characteristics

Electricals

Max. Conductor DCR34.6 Ohm/km

Voltage

UL Voltage Rating300 V

Mechanical Characteristics

Temperature

UL Temperature80°C

Standards and Compliance

Environmental SuitabilityIndoor
Flammability / Reaction to FireVW-1
AWM ComplianceAWM 1007
European Directive ComplianceEU CE Mark

History

Update and RevisionRevision Number: 0.156 Revision Date: 09-07-2025

Resources

Belden BE41203 technical datasheetCabling Solutions for Industrial ApplicationsConduit Capacity CalculatorDate: 2005-01-01
