Product Number: 9983

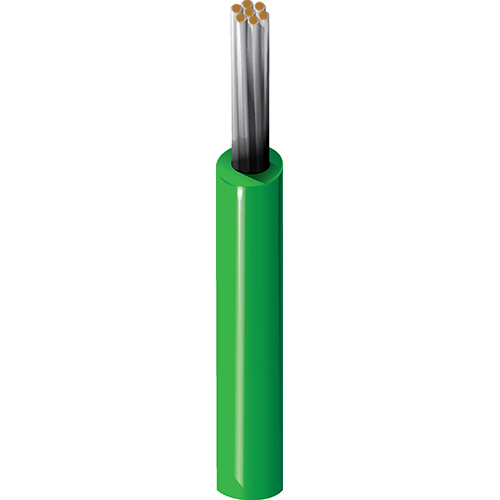

Lead Wire, #22 Str TC, PVC Ins, AWM 1061

Name: Belden 9983
Brand: Belden
SKU: 9983

Low Temp Plastic Lead Wire, 22AWG (7x30) Tinned Copper, PVC Insulation, AWM 1061 CSA AWM 300V 80C

Ships from and sold by A5 IT.

Part numbers

9983 is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.

Item #	Color	Putup Type	Length	UPC	Order
9983 010100	Black	Reel	100 ft	612825349921	Order online
9983 0101000	Black	Reel	1,000 ft	612825266815	Order online
9983 01010000	Black	Reel	10,000 ft	612825266822	Order online
9983 013100	Blue, Dark	Reel	100 ft	612825266853	Order online
9983 0131000	Blue, Dark	Reel	1,000 ft	612825266860	Order online
9983 001100	Brown	Reel	100 ft	612825266570	Order online
9983 0011000	Brown	Reel	1,000 ft	612825266587	Order online
9983 0081000	Gray	Reel	1,000 ft	612825266747	Order online
9983 005100	Green, Dark	Reel	100 ft	612825266693	Order online
9983 0051000	Green, Dark	Reel	1,000 ft	612825266709	Order online
9983 003100	Orange	Reel	100 ft	612825266648	Order online
9983 0031000	Orange	Reel	1,000 ft	612825266655	Order online
9983 002100	Red	Reel	100 ft	612825266617	Order online
9983 0021000	Red	Reel	1,000 ft	612825266624	Order online
9983 0071000	Violet	Reel	1,000 ft	612825266723	Order online
9983 009100	White	Reel	100 ft	612825266778	Order online
9983 0091000	White	Reel	1,000 ft	612825266785	Order online
9983 004100	Yellow	Reel	100 ft	612825266679	Order online
9983 0041000	Yellow	Reel	1,000 ft	612825266686	Order online

Suitable Applications	inter-connection circuits, internal wiring of computer and electronic equipments

Overall Cable Diameter (Nominal)	0.05 in (1.3 mm)

Nom. Conductor DCR	18.1 Ohm/1000ft
Max. Current	Single conductor in free air @ 30oC: 3.3 A

Nom. Insertion Loss (Attenuation)	6.5 dB/100m

UL Voltage Rating	300 V RMS

Max. Pull Tension	9 lbs (4.1 kg)
Bulk Cable Weight	3 lbs/1000ft

UL Temperature	105°C
Operating	-25°C To +105°C

Stationary Min.	0.5 in (13 mm)
Installation Min.	0.5 in (13 mm)

Environmental Suitability	Indoor
Sustainability	CA Prop 65
Flammability / Reaction to Fire	VW-1
AWM Compliance	AWM 1061, AWM I A/B
CEC / C(UL) Compliance	LL7874.
Military Compliance	Mil-W-16878/4
European Directive Compliance	EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)

Update and Revision	Revision Number: 0.507 Revision Date: 02-20-2026
Footnote	P - STRIPE COLORS ON STOCK SOLID COLORS. STRIPING ADDER OF $8.00/M= FOR 1 OR 2 STRIPES. 10,000' MINIMUM ORDER FOR COLOR COMBINATION. PUT-UP WILL BE SUBJECT TO TWO PIECES (+ OR -) 10% PER SPOOL, WITH A MINIMUM LENGTH OF 100'., C - CRATE REEL PUT-UP.
