Product Number: 9910

Lead Wire, #10 Str TC, PVC Ins, AWM 1015 AWM 1230

Name: Belden 9910
Brand: Belden
SKU: 9910

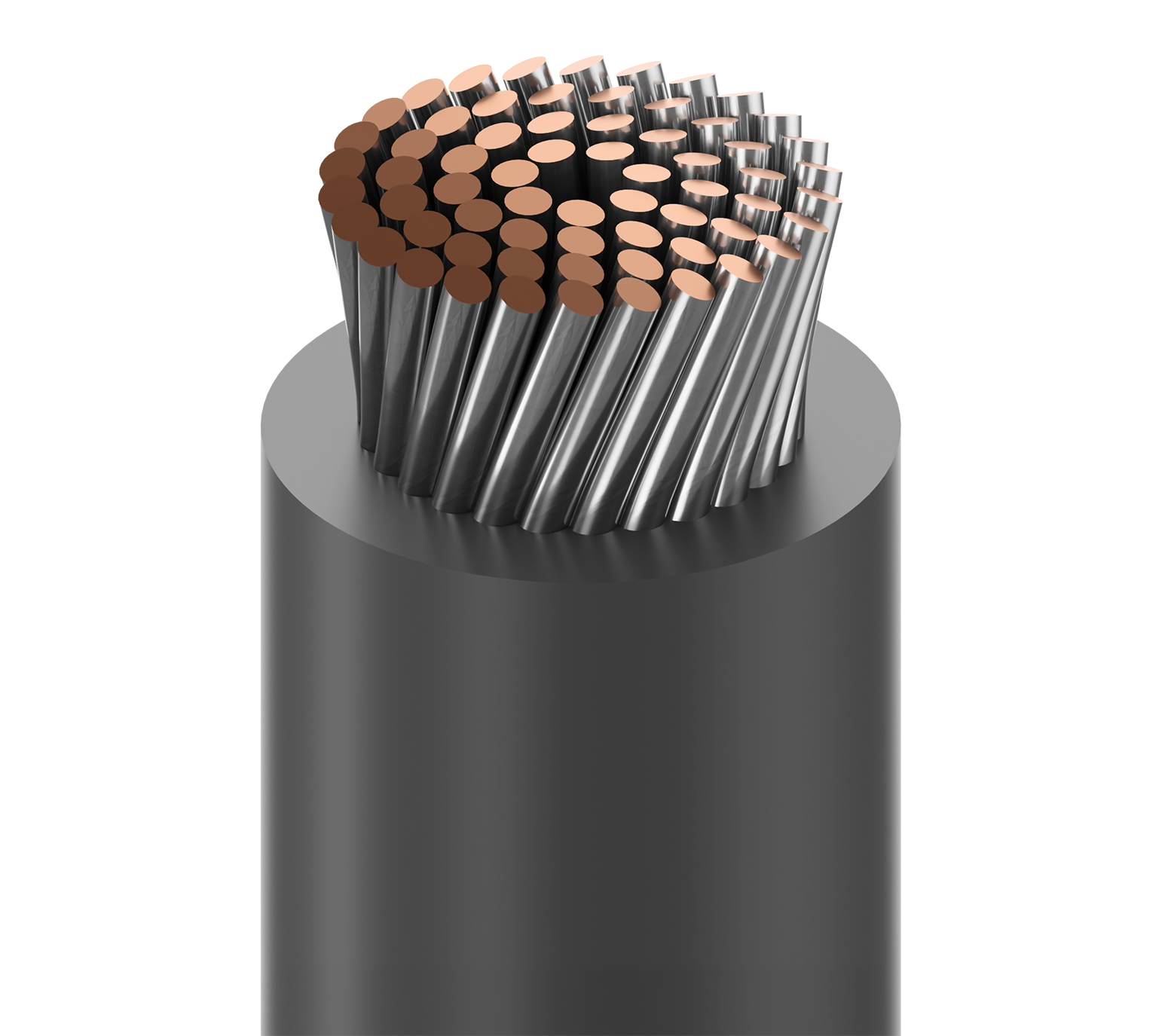

Low Temp Plastic Lead Wire, 10AWG (65x28) Tinned Copper, PVC Insulation, AWM 1015 AWM 1230 CSA TYPE TEW JQA-F 600V 105C

Ships from and sold by A5 IT.

Part numbers

9910 is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.

Item #	Color	Putup Type	Length	UPC	Order
9910 010100	Black	Reel	100 ft	612825260790	Order online
9910 010250	Black	Reel	250 ft	612825260813	Order online
9910 0102000	Black	Reel	2,000 ft	612825260806	Order online
9910 002100	Red	Reel	100 ft	612825260714	Order online
9910 002250	Red	Reel	250 ft	612825260738	Order online
9910 0022000	Red	Reel	2,000 ft	612825260721	Order online
9910 009100	White	Reel	100 ft	612825260769	Order online
9910 009250	White	Reel	250 ft	612825260783	Order online
9910 0092000	White	Reel	2,000 ft	612825260776	Order online
9910 004100	Yellow	Reel	100 ft	612825260745	Order online
9910 004250	Yellow	Reel	250 ft	612825260752	Order online

Suitable Applications	inter-connection circuits, internal wiring of computer and electronic equipments, internal wiring of appliances, machine tool wire

Overall Cable Diameter (Nominal)	0.18 in (4.6 mm)

Nom Outer Shield DCR	6 Ohm/km (1.8 Ohm/1000ft)

Nom. Conductor DCR	6.5 Ohm/1000ft
Max. Current	Single conductor in free air @ 30oC: 6.5 A

UL Voltage Rating	600 V RMS

Max. Pull Tension	115 lbs (52.2 kg)
Bulk Cable Weight	43 lbs/1000ft

UL Temperature	105°C
Operating	-30°C To +105°C

Stationary Min.	1.8 in (46 mm)
Installation Min.	1.8 in (46 mm)

Environmental Suitability	Indoor, Outdoor
Sustainability	CA Prop 65
Flammability / Reaction to Fire	VW-1
NEC / UL Compliance	Article 310, MTW or TW
AWM Compliance	AWM 1015, AWM 1230, CSA AWM I A/B
CEC / C(UL) Compliance	TEW.
European Directive Compliance	EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
