Product Number: 9899

Lead Wire, #18 Str TC, PVC Ins, AWM 1855

Name: Belden 9899
Brand: Belden
SKU: 9899

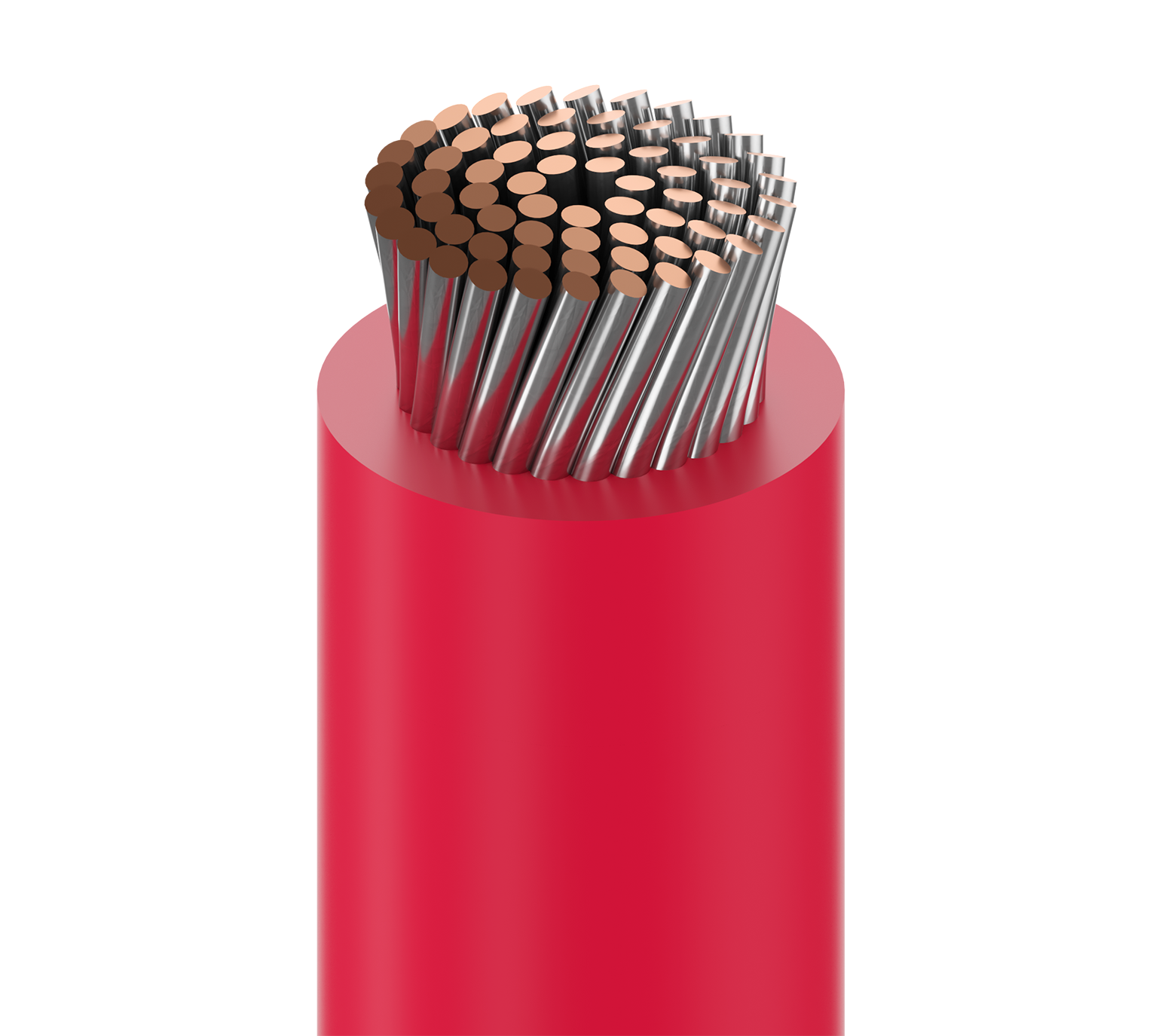

Low Temp Plastic Lead Wire, 18AWG (65x36) Tinned Copper, PVC Insulation, AWM 1855 5000V 80C

Ships from and sold by A5 IT.

Part numbers

9899 is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.

Item #	Color	Putup Type	Length	UPC	Order
9899 010100	Black	Reel	100 ft	612825260219	Order online
9899 010500	Black	Reel	500 ft	612825260233	Order online
9899 0101000	Black	Reel	1,000 ft	612825260226	Order online
9899 005500	Green, Dark	Reel	500 ft	612825260196	Order online
9899 002100	Red	Reel	100 ft	612825260165	Order online
9899 002500	Red	Reel	500 ft	612825260189	Order online
9899 0021000	Red	Reel	1,000 ft	612825260172	Order online
9899 009500	White	Reel	500 ft	612825260202	Order online

Suitable Applications	used as test probe lead for electrical and electronic measuring for test equipment

Overall Cable Diameter (Nominal)	0.144 in (3.66 mm)

Nom. Conductor DCR	6.5 Ohm/1000ft
Max. Current	Single conductor in free air @ 30oC: 6.5 A

Typical Unbalanced NEXT %	6 MHz

UL Voltage Rating	5000 V RMS

Max. Pull Tension	37 lbs (17 kg)
Bulk Cable Weight	14 lbs/1000ft

UL Temperature	80°C
Operating	-50°C To +80°C

Stationary Min.	1.44 in (36.6 mm)
Installation Min.	1.44 in (36.6 mm)

Environmental Suitability	Outdoor
Sustainability	CA Prop 65
AWM Compliance	AWM 1855
European Directive Compliance	EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
