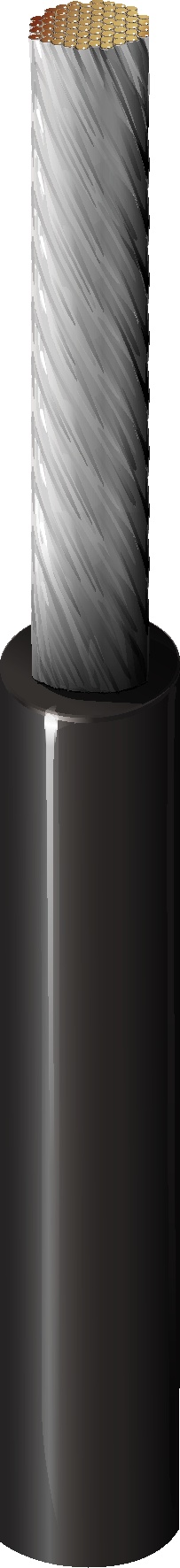

Lead Wire, #14 Str TC, PO Ins
Low Temp Plastic Lead Wire, 14AWG (104x34) Tinned Copper, PO Insulation
- Availability
- Global
- Status
- Active
- Orderable items
- 1
Part numbers
9438 is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.
| Item # | Color | Putup Type | Length | UPC | Footnote | Order |
|---|---|---|---|---|---|---|
| 9438 0101000 | Black | Reel | 1,000 ft | 612825248392 | C | Order online |
Specifications
Product Overview
| Suitable Applications | direct burial , roadway loop cables |
|---|
Construction Details
| Overall Cable Diameter (Nominal) | 0.139 in (3.53 mm) |
|---|
Conductor
| Element | Conductor(s) |
|---|---|
| No. of Elements | 1 |
| Size | 14 AWG |
| Stranding | 104x34 |
| Material | TC - Tinned Copper |
Insulation
| Material | PE - Polyethylene |
|---|---|
| Nom. Thickness | 0.032 in (0.81 mm) |
| Nom. Insulation Diameter | 0.139 in (3.53 mm) |
| Notes | HDPE |
Electrical Characteristics
Electricals
| Nom. Conductor DCR | 2.7 Ohm/1000ft |
|---|---|
| Max. Current | Single conductor in free air @ 30oC: 20 A |
Voltage
| Voltage Rating | 600 V RMS |
|---|
Mechanical Characteristics
| Max. Pull Tension | 48 lbs (22 kg) |
|---|---|
| Bulk Cable Weight | 18 lbs/1000ft |
Temperature
| UL Temperature | 80°C |
|---|---|
| Operating | -50°C To +80°C |
Bend Radius
| Stationary Min. | 1.39 in (35.3 mm) |
|---|---|
| Installation Min. | 1.39 in (35.3 mm) |
Standards and Compliance
| Environmental Suitability | Outdoor |
|---|---|
| Sustainability | CA Prop 65 |
| European Directive Compliance | EU Directive 2012/19/EU (WEEE) |
History
| Update and Revision | Revision Number: 0.475 Revision Date: 02-20-2026 |
|---|---|
| Footnote | C - CRATE REEL PUT-UP. |
