8920

Product Number: 8920

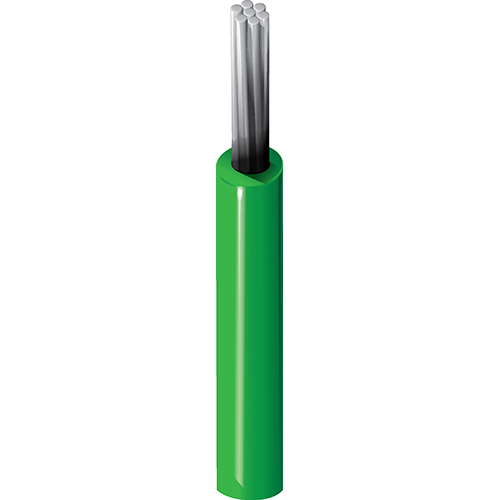

Lead Wire, #22 Str TC, PVC Ins, AWM 1015 AWM 1230

Low Temp Plastic Lead Wire, 22AWG (7x30) Tinned Copper, PVC Insulation, AWM 1015 AWM 1230 CSA TYPE TEW JQA-F 600V 105C

Availability
Global
Status
Active
Orderable items
17
Request a quoteOrder options (17)

Ships from and sold by A5 IT.

Part numbers

8920 is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.

Item #ColorPut-Up TypeLengthUPCOrder
8920 010100BlackReel100 ft612825220688Order online
8920 0101000BlackReel1,000 ft612825220695Order online
8920 0105000BlackReel5,000 ft612825220701Order online
8920 013100Blue, DarkReel100 ft612825220732Order online
8920 0131000Blue, DarkReel1,000 ft612825220749Order online
8920 0011000BrownReel1,000 ft612825220466Order online
8920 0081000GrayReel1,000 ft612825220619Order online
8920 0051000Green, DarkReel1,000 ft612825348047Order online
8920 0031000OrangeReel1,000 ft612825220534Order online
8920 002100RedReel100 ft612825220497Order online
8920 0021000RedReel1,000 ft612825220503Order online
8920 0025000RedReel5,000 ft612825220510Order online
8920 0071000VioletReel1,000 ft612825220596Order online
8920 009100WhiteReel100 ft612825220640Order online
8920 0091000WhiteReel1,000 ft612825220657Order online
8920 004100YellowReel100 ft612825220558Order online
8920 0041000YellowReel1,000 ft612825220565Order online

Specifications

Product Overview

Suitable Applicationsinter-connection circuits, internal wiring of computer and electronic equipments, internal wiring of appliances, machine tool wire

Physical Characteristics (Overall)

Conductor Count1

Conductor

AWG22
Stranding7x30
MaterialTC - Tinned Copper
No. of Conductors1

Insulation

MaterialPVC - Polyvinyl Chloride
Nominal Diameter0.093 in
Nominal Wall Thickness0.03 in

Electrical Characteristics

Voltage

UL Voltage Rating600 V RMS

Temperature Range

Non-UL Temp Rating105°C
UL Temperature Rating105°C

Mechanical Characteristics

Bulk Cable Weight5.8 lbs/1000ft
Minimum Minor Axis Bend Radius0.38 in

Standards

NEC ArticlesArticle 310
NEC/(UL) ComplianceMTW
UL AWM Style ComplianceAWM 1015, AWM 1230
CSA Rating600 V, 105°C
CSA AWM ComplianceCSA AWM I A/B
CSA TypeAWM I A/B or TEW

Applicable Environmental and Other Programs

EU Directive 2000/53/EC (ELV)Yes
EU Directive 2003/96/EC (BFR)Yes
EU Directive 2011/65/EU (RoHS 2)Yes
EU Directive 2012/19/EU (WEEE)Yes
EU Directive 2015/863/EU (RoHS 2 amendment)Yes
EU Directive ComplianceEU Directive 2003/11/EC (BFR)
EU CE MarkYes
CA Prop 65Yes
MII Order #39 (China RoHS)Yes

Flammability, LS0H, Toxicity Testing

UL FlammabilityVW-1
CSA FlammabilityFT1
UL voltage rating600 V RMS

Plenum/Non-Plenum

Plenum (Y/N)No

Related Part Numbers

FootnoteC - CRATE REEL PUT-UP., P - STRIPE COLORS ON STOCK SOLID COLORS. STRIPING ADDER OF $8.00/M= FOR 1 OR 2 STRIPES. 10,000' MINIMUM ORDER FOR COLOR COMBINATION. PUT-UP WILL BE SUBJECT TO TWO PIECES (+ OR -) 10% PER SPOOL, WITH A MINIMUM LENGTH OF 100'.
