Product Number: 8918

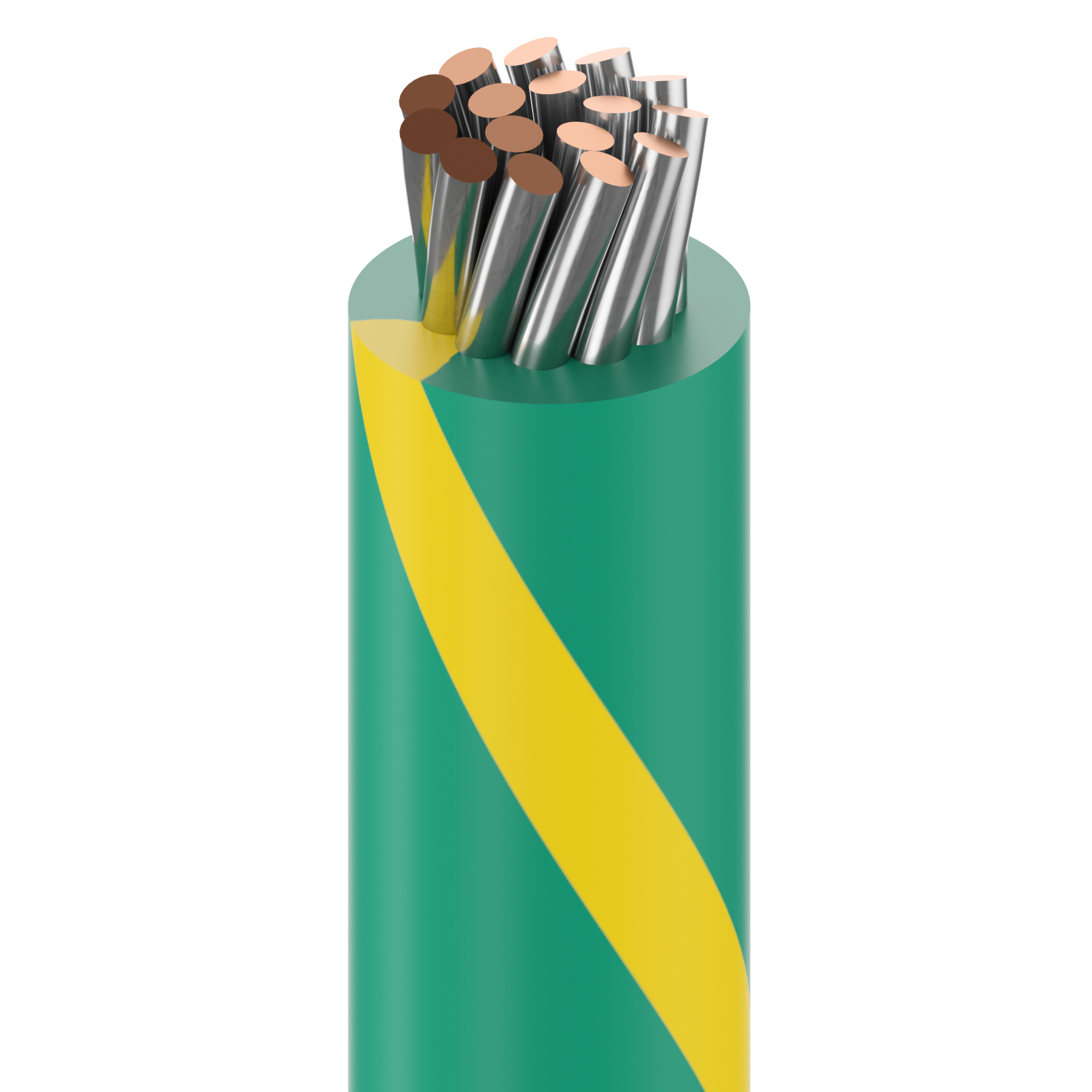

Lead Wire, #18 Str TC, PVC Ins, AWM 1015 AWM 1230

Name: Belden 8918
Brand: Belden
SKU: 8918

Low Temp Plastic Lead Wire, 18AWG (16x30) Tinned Copper, PVC Insulation, AWM 1015 AWM 1230 CSA TYPE TEW JQA-F 600V 105C

Ships from and sold by A5 IT.

Part numbers

8918 is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.

Item #	Color	Putup Type	Length	UPC	Order
8918 010100	Black	Reel	100 ft	612825219989	Order online
8918 0101000	Black	Reel	1,000 ft	612825219996	Order online
8918 0105000	Black	Reel	5,000 ft	612825220008	Order online
8918 013100	Blue, Dark	Reel	100 ft	612825220060	Order online
8918 0131000	Blue, Dark	Reel	1,000 ft	612825220077	Order online
8918 0135000	Blue, Dark	Reel	5,000 ft	612825220084	Order online
8918 001100	Brown	Reel	100 ft	612825219606	Order online
8918 0011000	Brown	Reel	1,000 ft	612825219613	Order online
8918 0081000	Gray	Reel	1,000 ft	612825219866	Order online
8918 0085000	Gray	Reel	5,000 ft	612825219873	Order online
8918 005100	Green, Dark	Reel	100 ft	612825219804	Order online
8918 0051000	Green, Dark	Reel	1,000 ft	612825219811	Order online
8918 0055000	Green, Dark	Reel	5,000 ft	—	Order online
8918 189100	Green, Yellow Stripe	Reel	100 ft	612825220107	Order online
8918 1891000	Green, Yellow Stripe	Reel	1,000 ft	612825348030	Order online
8918 003100	Orange	Reel	100 ft	612825219699	Order online
8918 0031000	Orange	Reel	1,000 ft	612825219705	Order online
8918 002100	Red	Reel	100 ft	612825219637	Order online
8918 0021000	Red	Reel	1,000 ft	612825219644	Order online
8918 0025000	Red	Reel	5,000 ft	612825219651	Order online
8918 0071000	Violet	Reel	1,000 ft	612825219842	Order online
8918 009100	White	Reel	100 ft	612825219903	Order online
8918 0091000	White	Reel	1,000 ft	612825219910	Order online
8918 0095000	White	Reel	5,000 ft	612825219927	Order online
8918 004100	Yellow	Reel	100 ft	612825219743	Order online
8918 0041000	Yellow	Reel	1,000 ft	612825219750	Order online
8918 0045000	Yellow	Reel	5,000 ft	612825219767	Order online

Suitable Applications	inter-connection circuits, internal wiring of computer and electronic equipments, internal wiring of appliances, machine tool wire

Overall Cable Diameter (Nominal)	0.11 in (2.8 mm)

Nom. Conductor DCR	6.5 Ohm/1000ft
Max. Current	Single conductor in free air @ 30oC: 20 A

UL Voltage Rating	600 V RMS

Max. Pull Tension	27 lbs (12 kg)
Bulk Cable Weight	10 lbs/1000ft

UL Temperature	105°C
Operating	-30°C To +105°C

Stationary Min.	1.1 in (28 mm)
Installation Min.	1.1 in (28 mm)

Environmental Suitability	Indoor, Outdoor
Sustainability	CA Prop 65
Flammability / Reaction to Fire	VW-1
NEC / UL Compliance	Article 310, MTW
AWM Compliance	AWM 1015, AWM 1230, CSA AWM I A/B
CEC / C(UL) Compliance	TEW.
European Directive Compliance	EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
APAC Compliance	China RoHS II (GB/T 26572-2011)

Update and Revision	Revision Number: 0.489 Revision Date: 02-20-2026
Footnote	C - CRATE REEL PUT-UP., P - STRIPE COLORS ON STOCK SOLID COLORS. STRIPING ADDER OF $8.00/M= FOR 1 OR 2 STRIPES. 10,000' MINIMUM ORDER FOR COLOR COMBINATION. PUT-UP WILL BE SUBJECT TO TWO PIECES (+ OR -) 10% PER SPOOL, WITH A MINIMUM LENGTH OF 100'., A - STOCKED STRIPE COLORS.
