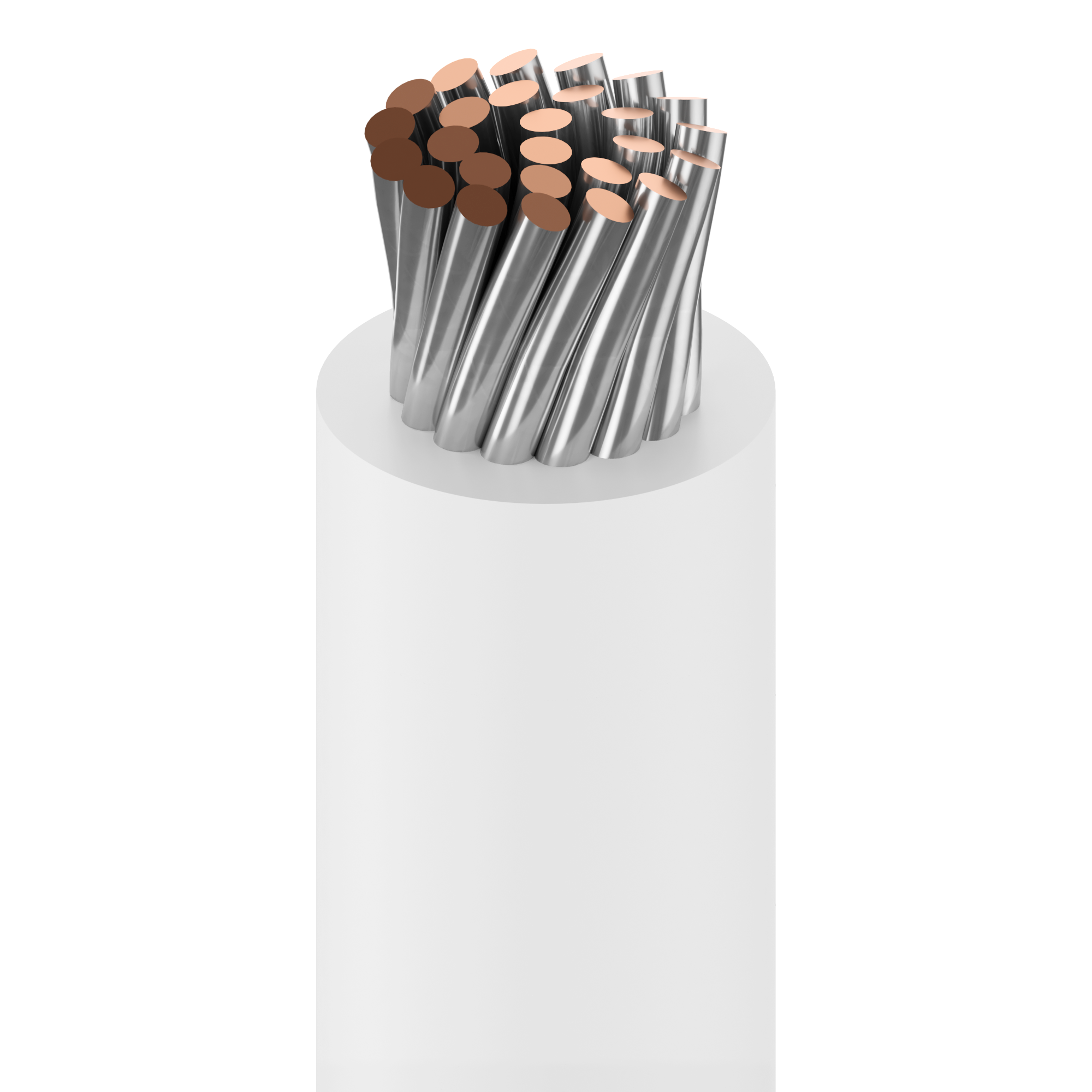

Product Number: 8917

Lead Wire, #16 Str TC, PVC Ins, AWM 1015 AWM 1230

Low Temp Plastic Lead Wire, 16AWG (26x30) Tinned Copper, PVC Insulation, AWM 1015 AWM 1230 CSA TYPE TEW JQA-F 600V 105C

Availability: Global
Status: Active
Orderable items: 29

Ships from and sold by A5 IT.

Part numbers

8917 is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.

Item #	Color	Putup Type	Length	UPC	Order
8917 010100	Black	Reel	100 ft	612825219392	Order online
8917 010500	Black	Reel	500 ft	612825348009	Order online
8917 0101000	Black	Reel	1,000 ft	612825219408	Order online
8917 0105000	Black	Reel	5,000 ft	612825219415	Order online
8917 013100	Blue, Dark	Reel	100 ft	612825219453	Order online
8917 013500	Blue, Dark	Reel	500 ft	612825219477	Order online
8917 0131000	Blue, Dark	Reel	1,000 ft	612825219460	Order online
8917 0135000	Blue, Dark	Reel	5,000 ft	612825219484	Order online
8917 001100	Brown	Reel	100 ft	612825219019	Order online
8917 0011000	Brown	Reel	1,000 ft	612825219026	Order online
8917 0081000	Gray	Reel	1,000 ft	612825219286	Order online
8917 005100	Green, Dark	Reel	100 ft	612825219194	Order online
8917 005500	Green, Dark	Reel	500 ft	612825219217	Order online
8917 0051000	Green, Dark	Reel	1,000 ft	612825219200	Order online
8917 189100	Green, Yellow Stripe	Reel	100 ft	612825219521	Order online
8917 1891000	Green, Yellow Stripe	Reel	1,000 ft	612825219538	Order online
8917 003100	Orange	Reel	100 ft	612825219118	Order online
8917 0031000	Orange	Reel	1,000 ft	612825219125	Order online
8917 002100	Red	Reel	100 ft	612825219071	Order online
8917 002500	Red	Reel	500 ft	612825219095	Order online
8917 0021000	Red	Reel	1,000 ft	612825219088	Order online
8917 0025000	Red	Reel	5,000 ft	612825219101	Order online
8917 0071000	Violet	Reel	1,000 ft	612825219248	Order online
8917 009100	White	Reel	100 ft	612825219316	Order online
8917 009500	White	Reel	500 ft	612825219330	Order online
8917 0091000	White	Reel	1,000 ft	612825219323	Order online
8917 0095000	White	Reel	5,000 ft	612825219347	Order online
8917 004100	Yellow	Reel	100 ft	612825219156	Order online
8917 0041000	Yellow	Reel	1,000 ft	612825219163	Order online

Specifications

Product Overview

Suitable Applications	inter-connection circuits, internal wiring of computer and electronic equipments, internal wiring of appliances, machine tool wire

Construction Details

Overall Cable Diameter (Nominal)	0.123 in (3.12 mm)

Conductor

Element	Conductor(s)
No. of Elements	1
Size	16 AWG
Stranding	26x30
Material	TC - Tinned Copper

Insulation

Material	PVC - Polyvinyl Chloride
Nom. Thickness	0.032 in (0.81 mm)
Nom. Insulation Diameter	0.123 in (3.12 mm)

Electrical Characteristics

Electricals

Nom. Conductor DCR	4.0 Ohm/1000ft
Max. Current	Single conductor in free air @ 30oC: 26 A

Voltage

UL Voltage Rating	600 V RMS

Mechanical Characteristics

Max. Pull Tension	37 lbs (17 kg)
Bulk Cable Weight	14 lbs/1000ft

Temperature

UL Temperature	105°C
Operating	-30°C To +105°C

Bend Radius

Stationary Min.	1.23 in (31.2 mm)
Installation Min.	1.23 in (31.2 mm)

Standards and Compliance

Environmental Suitability	Indoor, Outdoor
Sustainability	CA Prop 65
Flammability / Reaction to Fire	VW-1
NEC / UL Compliance	Article 310, MTW
AWM Compliance	AWM 1015, AWM 1230, CSA AWM I A/B
CEC / C(UL) Compliance	TEW.
European Directive Compliance	EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
APAC Compliance	China RoHS II (GB/T 26572-2011)

History

Update and Revision	Revision Number: 0.510 Revision Date: 02-20-2026
Footnote	C - CRATE REEL PUT-UP., A - STOCKED STRIPE COLORS., P - STRIPE COLORS ON STOCK SOLID COLORS. STRIPING ADDER OF $8.00/M= FOR 1 OR 2 STRIPES. 10,000' MINIMUM ORDER FOR COLOR COMBINATION. PUT-UP WILL BE SUBJECT TO TWO PIECES (+ OR -) 10% PER SPOOL, WITH A MINIMUM LENGTH OF 100'.
