Product Number: 8916

Lead Wire, #14 Str TC, PVC Ins, AWM 1015 AWM 1230

Name: Belden 8916
Brand: Belden
SKU: 8916

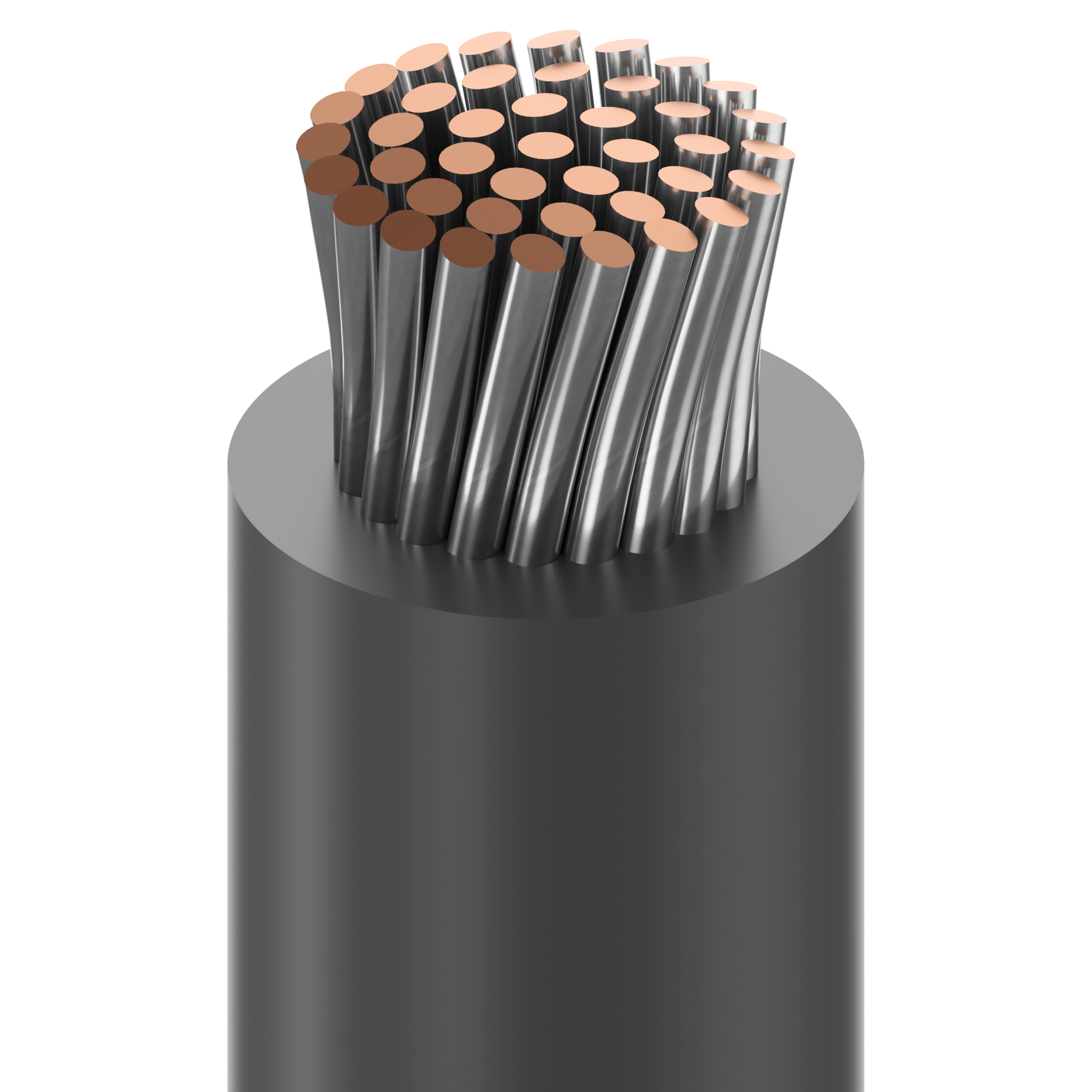

Low Temp Plastic Lead Wire, 14AWG (41x30) Tinned Copper, PVC Insulation, AWM 1015 AWM 1230 CSA TYPE TEW JQA-F 600V 105C

Ships from and sold by A5 IT.

Part numbers

8916 is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.

Item #	Color	Putup Type	Length	UPC	Order
8916 010100	Black	Reel	100 ft	612825218869	Order online
8916 010500	Black	Reel	500 ft	612825218883	Order online
8916 0104000	Black	Reel	4,000 ft	612825218876	Order online
8916 013100	Blue, Dark	Reel	100 ft	612825218913	Order online
8916 013500	Blue, Dark	Reel	500 ft	612825218920	Order online
8916 001100	Brown	Reel	100 ft	612825218487	Order online
8916 001500	Brown	Reel	500 ft	612825218500	Order online
8916 0014000	Brown	Reel	4,000 ft	612825218494	Order online
8916 008500	Gray	Reel	500 ft	612825218739	Order online
8916 005100	Green, Dark	Reel	100 ft	612825218692	Order online
8916 005500	Green, Dark	Reel	500 ft	612825218715	Order online
8916 0054000	Green, Dark	Reel	4,000 ft	612825218708	Order online
8916 189100	Green, Yellow Stripe	Reel	100 ft	612825347996	Order online
8916 189500	Green, Yellow Stripe	Reel	500 ft	612825218968	Order online
8916 003100	Orange	Reel	100 ft	612825218609	Order online
8916 003500	Orange	Reel	500 ft	612825218616	Order online
8916 002100	Red	Reel	100 ft	612825218555	Order online
8916 002500	Red	Reel	500 ft	612825218579	Order online
8916 0024000	Red	Reel	4,000 ft	612825218562	Order online
8916 007500	Violet	Reel	500 ft	612825218722	Order online
8916 009100	White	Reel	100 ft	612825218784	Order online
8916 009500	White	Reel	500 ft	612825218791	Order online
8916 004100	Yellow	Reel	100 ft	612825218647	Order online
8916 004500	Yellow	Reel	500 ft	612825218654	Order online

Suitable Applications	inter-connection circuits, internal wiring of computer and electronic equipments, internal wiring of appliances, machine tool wire

Overall Cable Diameter (Nominal)	0.138 in (3.51 mm)

Nom. Conductor DCR	2.7 Ohm/1000ft
Max. Current	Single conductor in free air @ 30oC: 39 A

UL Voltage Rating	600 V RMS

Max. Pull Tension	51 lbs (23 kg)
Bulk Cable Weight	19 lbs/1000ft

UL Temperature	105°C
Operating	-30°C To +105°C

Stationary Min.	1.38 in (35.1 mm)
Installation Min.	1.38 in (35.1 mm)

Environmental Suitability	Indoor, Outdoor
Sustainability	CA Prop 65
Flammability / Reaction to Fire	VW-1
NEC / UL Compliance	Article 310, MTW or TW
AWM Compliance	AWM 1015, AWM 1230, CSA AWM I A/B
CEC / C(UL) Compliance	TEW.
European Directive Compliance	EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
APAC Compliance	China RoHS II (GB/T 26572-2011)

Update and Revision	Revision Number: 0.502 Revision Date: 02-20-2026
Footnote	P - STRIPE COLORS ON STOCK SOLID COLORS. STRIPING ADDER OF $8.00/M= FOR 1 OR 2 STRIPES. 10,000' MINIMUM ORDER FOR COLOR COMBINATION. PUT-UP WILL BE SUBJECT TO TWO PIECES (+ OR -) 10% PER SPOOL, WITH A MINIMUM LENGTH OF 100'., C - CRATE REEL PUT-UP., A - STOCKED STRIPE COLORS.
