Product Number: 8868

Lead Wire, #22 Str TC, Conductive PO/PO Ins, PVC Jkt, 25kV

Name: Belden 8868
Brand: Belden
SKU: 8868

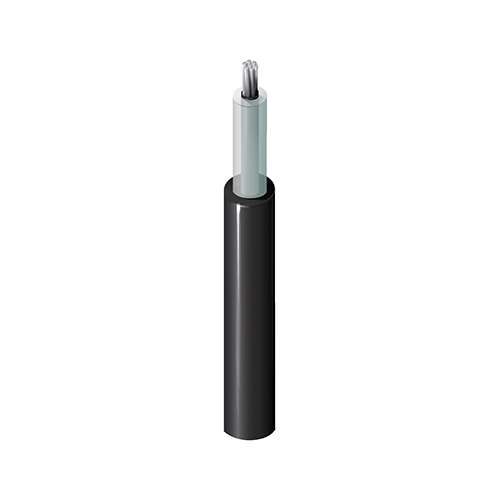

Low Temp Plastic Lead Wire, 22AWG (7x30) Tinned Copper, Conductive PO/PO Insulation, PVC Outer Jacket, 25kV

Ships from and sold by A5 IT.

Part numbers

8868 is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.

Item #	Color	Put-Up Type	Length	UPC	Order
8868 002500	Red	Reel	500 ft	612825217138	Order online
8868 002U500	Red	Reel	500 ft	612825217121	Order online

Suitable Applications	internal wiring of electronic equipments, high voltage applications

Conductor Count	1
Insulation Table Notes	.003 in. conductive polyethylene over stranding.

Material	PE - Polyethylene
Nominal Wall Thickness	0.044 in

Material	Nominal Diameter	Nominal Wall Thickness
PVC - Polyvinyl Chloride	0.15 in	0.015 in
	0.15 in

Breakdown Voltage	Non-UL Description	Non-UL Voltage Rating
48,000 V (DC)		24,000 V DC
	AC (60 Hertz)	9000 V RMS

Non-UL Temp Rating	80°C

Bulk Cable Weight	10 lbs/1000ft
Minimum Minor Axis Bend Radius	2.25 in

EU Directive 2000/53/EC (ELV)	Yes
EU Directive 2003/96/EC (BFR)	Yes
EU Directive 2011/65/EU (RoHS 2)	Yes
EU Directive 2012/19/EU (WEEE)	Yes
EU Directive 2015/863/EU (RoHS 2 amendment)	Yes
EU Directive Compliance	EU Directive 2003/11/EC (BFR)
EU CE Mark	Yes
CA Prop 65	Yes
MII Order #39 (China RoHS)	Yes

Plenum (Y/N)	No

Notes	*This cable is recommended for applications in which the source is power limited so that if a cable failure occurs the source limits the energy transfer to a value of less than that required to raise the conductor temperature to 90°C.
