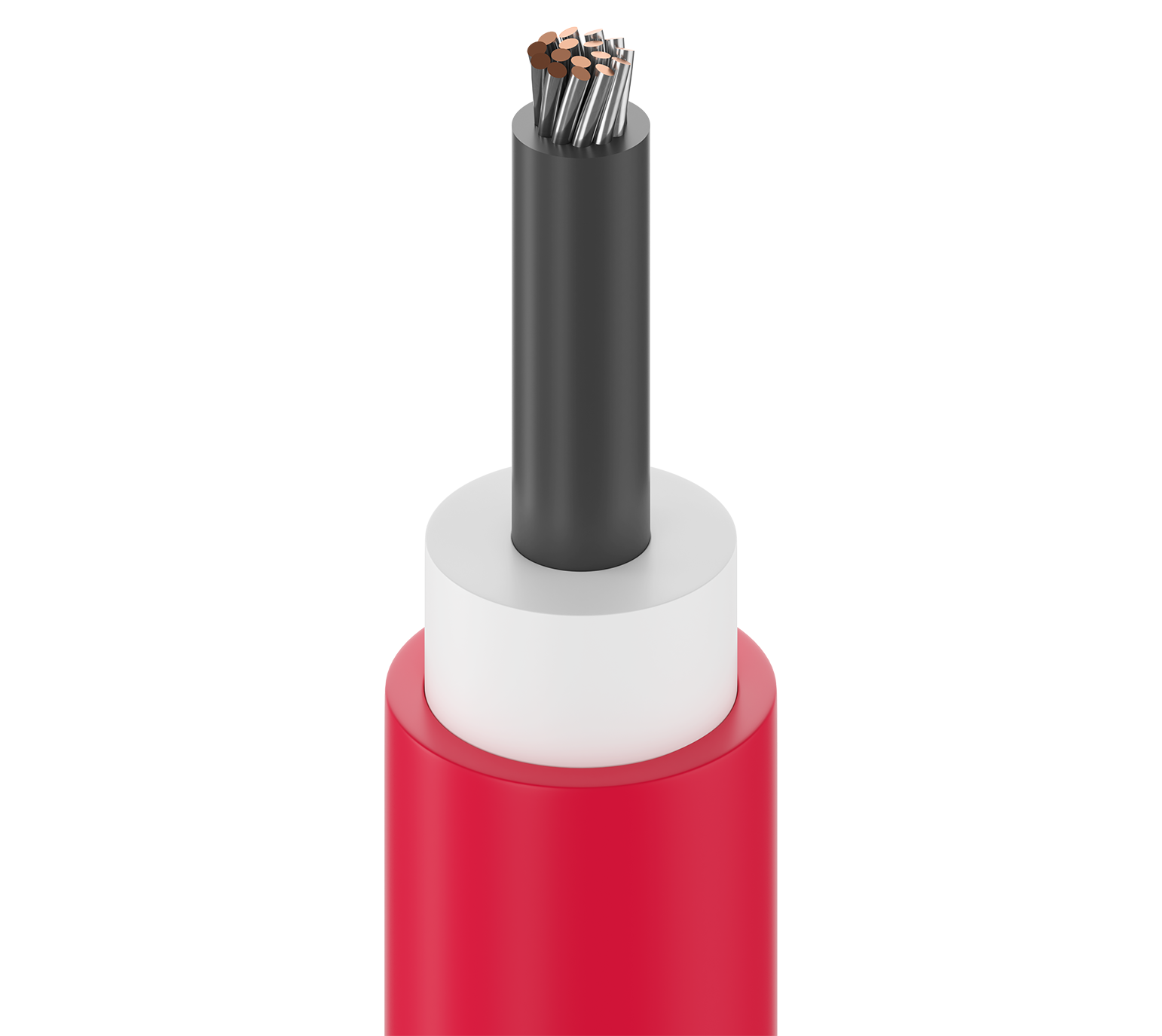

Lead Wire, #18 Str TC, Conductive PO/PO Ins, PVC Jkt, 40kV
Low Temp Plastic Lead Wire, 18AWG (16x30) Tinned Copper, Conductive PO/PO Insulation, PVC Outer Jacket, 40kV
- Availability
- Global
- Status
- Active
- Orderable items
- 3
Part numbers
8866 is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.
| Item # | Color | Putup Type | Length | UPC | Order |
|---|---|---|---|---|---|
| 8866 002100 | Red | Reel | 100 ft | 612825217091 | Order online |
| 8866 002500 | Red | Reel | 500 ft | 612825217107 | Order online |
| 8866 002U500 | Red | Reel | 500 ft | 612825217084 | Order online |
Specifications
Product Overview
| Suitable Applications | internal wiring of electronic equipments, high voltage applications |
|---|
Construction Details
| Insulation Table Notes | .008 in. conductive polyethylene over stranding. |
|---|---|
| Overall Cable Diameter (Nominal) | 0.208 in (5.28 mm) |
Conductor
| Element | Conductor(s) |
|---|---|
| No. of Elements | 1 |
| Size | 18 AWG |
| Stranding | 16x30 |
| Material | TC - Tinned Copper |
Insulation
| Material | PO - Polyolefin |
|---|---|
| Nom. Thickness | 0.057 in (1.4 mm) |
| Nom. Insulation Diameter | 0.178 in (4.52 mm) |
Outer Jacket
| Material | PVC - Polyvinyl Chloride |
|---|---|
| Nom. Thickness | 0.015 in (0.38 mm) |
| Nom. Diameter | 0.208 in (5.28 mm) |
Electrical Characteristics
Electricals
| Nom. Conductor DCR | 1.25 Ohm/1000ft |
|---|---|
| Max. Current | Single conductor in free air @ 30oC: 62.0 A |
Voltage
| Voltage Rating | 40,000 V DC, 11,000 V RMS (AC (60 Hertz)) |
|---|---|
| Breakdown Voltage | 80,000 V (DC) |
Mechanical Characteristics
| Max. Pull Tension | 53 lbs (24 kg) |
|---|---|
| Bulk Cable Weight | 20 lbs/1000ft |
Temperature
| UL Temperature | 80°C |
|---|---|
| Operating | -40°C To +80°C |
Bend Radius
| Stationary Min. | 2.08 in (52.8 mm) |
|---|---|
| Installation Min. | 2.08 in (52.8 mm) |
Standards and Compliance
| Environmental Suitability | Outdoor |
|---|---|
| Sustainability | CA Prop 65 |
| European Directive Compliance | EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
History
| Update and Revision | Revision Number: 0.478 Revision Date: 02-20-2026 |
|---|---|
| Footnote | C - CRATE REEL PUT-UP. |
