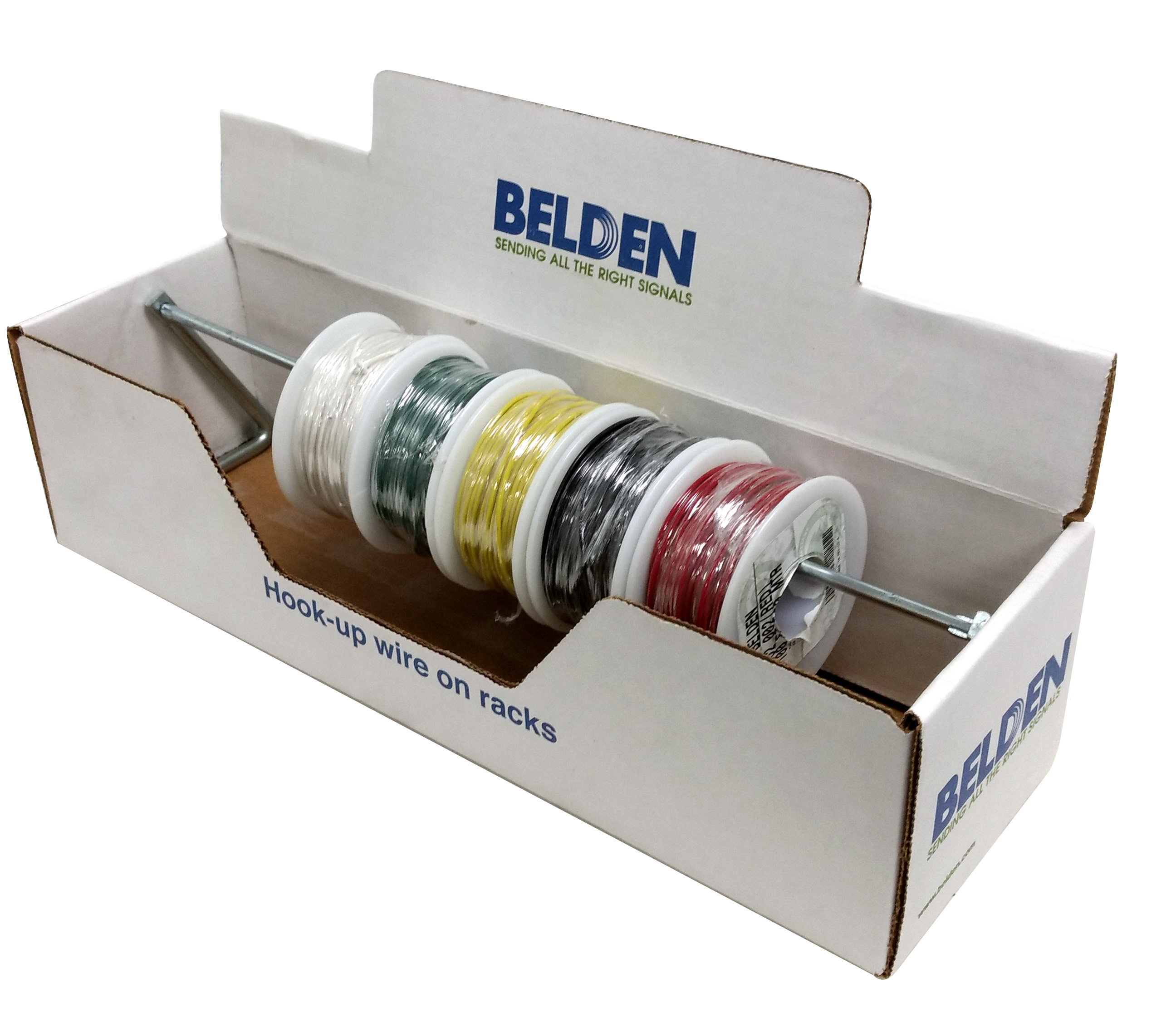

Lead Wire on Racks, 5 C #20 Str TC, PVC Ins, Five Color Kit
Low Temp Plastic Lead Wire on Racks, 5 Conductor 20AWG (7x28) Tinned Copper, PVC Insulation, Five Color Kit 105C
- Availability
- Global
- Status
- Active
- Orderable items
- 1
Part numbers
8825 is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.
| Item # | Color | Put-Up Type | Length | UPC | Order |
|---|---|---|---|---|---|
| 8825 | None | Reel | 1 ft | 612825216940 | Order online |
Specifications
Product Overview
| Suitable Applications | inter-connection circuits, internal wiring of computer and electronic equipments, internal wiring of appliances |
|---|
Physical Characteristics (Overall)
| Conductor Count | 1 |
|---|
Conductor
| AWG | 20 |
|---|---|
| Stranding | 7x28 |
| Material | TC - Tinned Copper |
Insulation
| Material | PVC - Polyvinyl Chloride |
|---|
Temperature Range
| Operating Temperature Range | 105°C |
|---|
Applicable Environmental and Other Programs
| EU Directive 2000/53/EC (ELV) | Yes |
|---|---|
| EU Directive 2003/96/EC (BFR) | Yes |
| EU Directive 2012/19/EU (WEEE) | Yes |
| EU Directive Compliance | EU Directive 2003/11/EC (BFR) |
| CA Prop 65 | Yes |
| MII Order #39 (China RoHS) | Yes |
Plenum/Non-Plenum
| Plenum (Y/N) | No |
|---|
Product Notes
| Notes | 5 Spools of 8502 in the following colors 2, 4, 5, 9, 10 - Spool Lengths 100 Ft. |
|---|
History
| Update and Revision | Revision Number: 0.356 Revision Date: 02-03-2025 |
|---|
