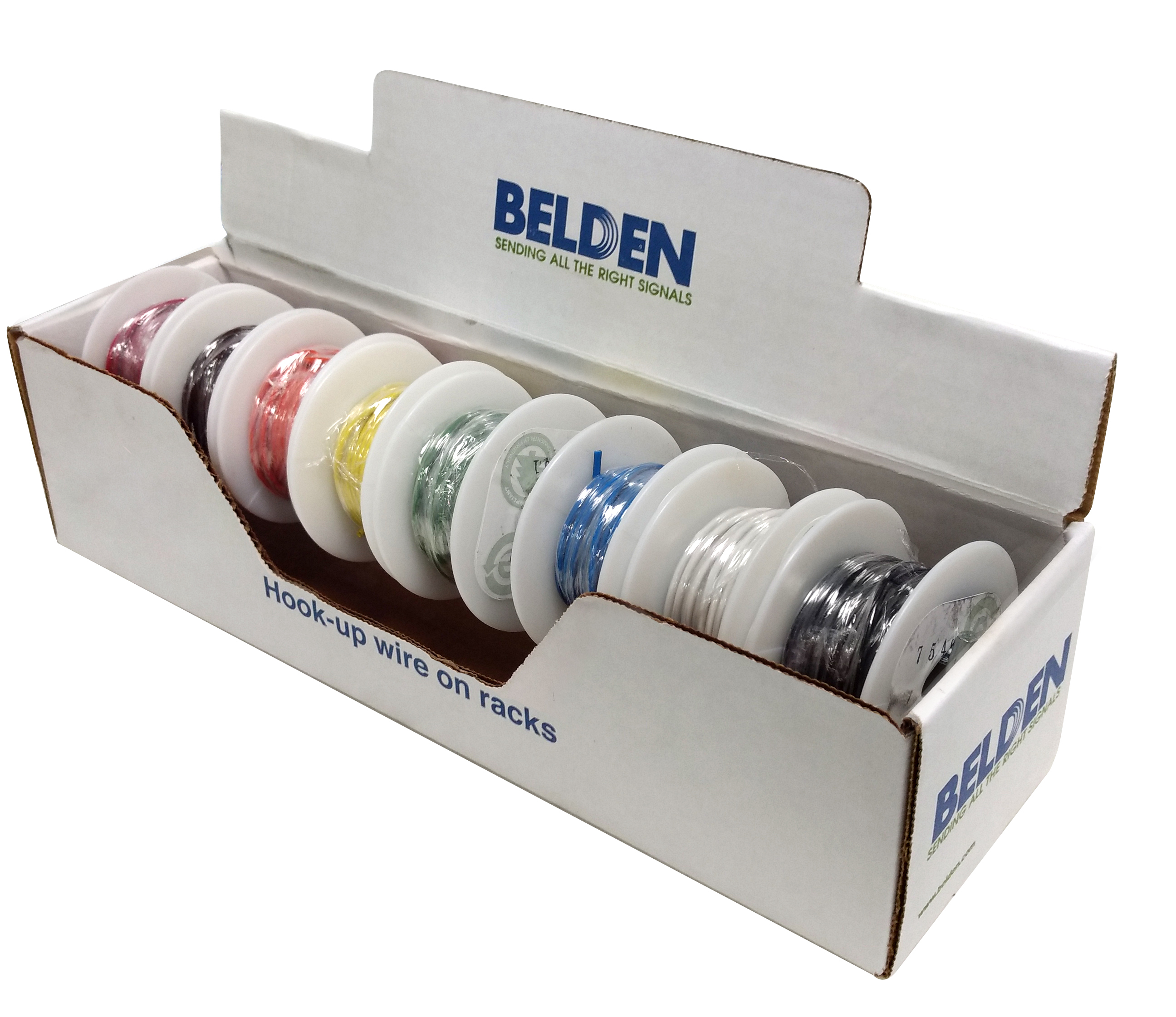

Lead Wire on Racks, 8 C #18 Str TC, PVC Ins, Eight Color Kit
Low Temp Plastic Lead Wire on Racks, 8 Conductor 18AWG (16x30) Tinned Copper, PVC Insulation, Eight Color Kit 80C
- Availability
- Global
- Status
- Active
- Orderable items
- 1
Part numbers
8816 is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.
| Item # | Color | Put-Up Type | Length | UPC | Order |
|---|---|---|---|---|---|
| 8816 | None | Reel | 1 ft | 612825216865 | Order online |
Specifications
Product Overview
| Suitable Applications | inter-connection circuits, internal wiring of computer and electronic equipments, internal wiring of appliances |
|---|
Physical Characteristics (Overall)
| Conductor Count | 1 |
|---|
Conductor
| AWG | 18 |
|---|---|
| Stranding | 16x30 |
| Material | TC - Tinned Copper |
Insulation
| Material | PVC - Polyvinyl Chloride |
|---|
Temperature Range
| UL Temperature Rating | 80°C |
|---|
Applicable Environmental and Other Programs
| EU Directive 2000/53/EC (ELV) | Yes |
|---|---|
| EU Directive 2003/96/EC (BFR) | Yes |
| EU Directive 2012/19/EU (WEEE) | Yes |
| EU Directive Compliance | EU Directive 2003/11/EC (BFR) |
| CA Prop 65 | Yes |
| MII Order #39 (China RoHS) | Yes |
Plenum/Non-Plenum
| Plenum (Y/N) | No |
|---|
Product Notes
| Notes | 8 Spools of 8522 in the following colors 1, 2, 3, 4, 5, 6, 9, 10 - Spool Lengths 25 Ft. |
|---|
History
| Update and Revision | Revision Number: 0.358 Revision Date: 02-03-2025 |
|---|
