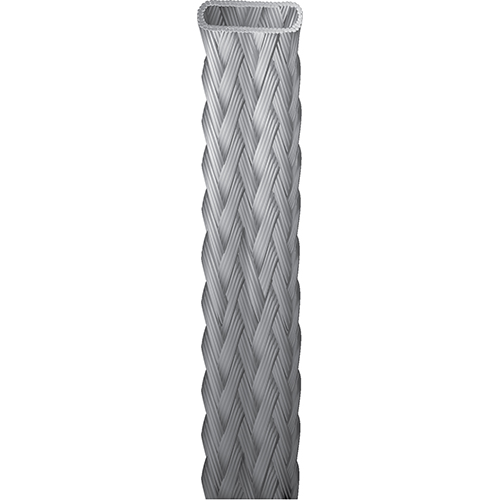

Shielding & Bonding, TC Braid #11.9AWG
Shielding & Bonding, TC Braid 11.9AWG (168x34)
- Availability
- Global
- Status
- Active
- Orderable items
- 2
Part numbers
8663 is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.
| Item # | Color | Putup Type | Length | UPC | Order |
|---|---|---|---|---|---|
| 8663 00050 | None | Reel | 50 ft | 612825213949 | Order online |
| 8663 000250 | None | Reel | 250 ft | 612825213932 | Order online |
Specifications
Product Overview
| Suitable Applications | for shielding and bonding cable |
|---|
Construction Details
Conductor
| Element | Braid |
|---|---|
| No. of Elements | 1 |
| Size | 11.9 |
| Stranding | 168x34 |
| Material | TC - Tinned Copper |
Electrical Characteristics
Electricals
| Nom. Conductor DCR | 1.55 Ohm/1000ft |
|---|---|
| Max. Current | Single conductor in free air @ 30oC: 38.0 A |
Mechanical Characteristics
| Max. Pull Tension | 64 lbs (29 kg) |
|---|---|
| Bulk Cable Weight | 24 lbs/1000ft |
Temperature
| UL Temperature | 80°C |
|---|---|
| Operating | -40°C To +80°C |
Standards and Compliance
| Environmental Suitability | Outdoor |
|---|---|
| Sustainability | CA Prop 65 |
| European Directive Compliance | EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
Product Notes
| Notes | AWG size is approximated. |
|---|
History
| Update and Revision | Revision Number: 0.456 Revision Date: 02-20-2026 |
|---|
