Product Number: 8527

Lead Wire, #12 Str TC, PVC Ins, TYPE MW MIL-W-76C-PVC

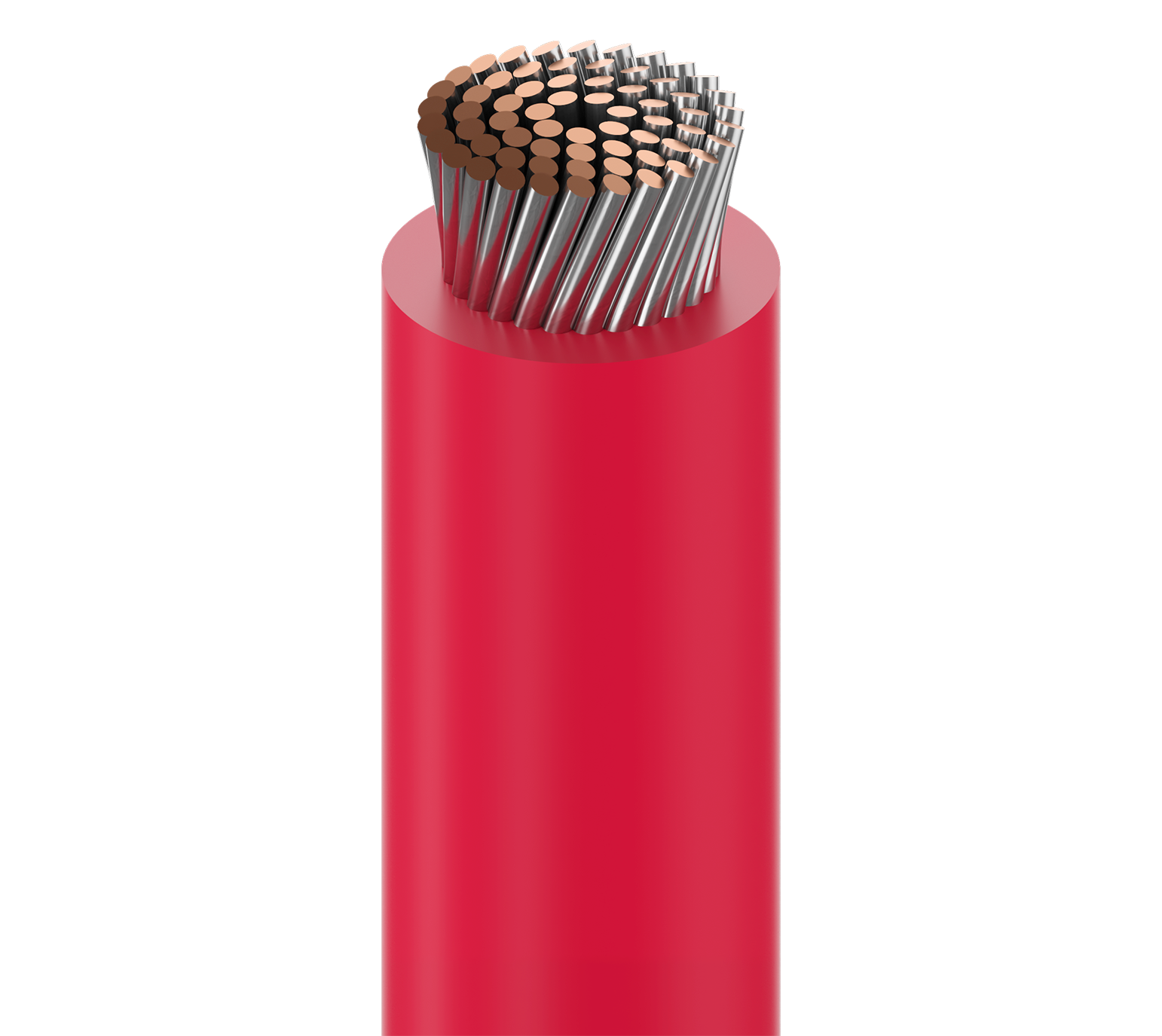

Name: Belden 8527
Brand: Belden
SKU: 8527

Low Temp Plastic Lead Wire, 12AWG (65x30) Tinned Copper, PVC Insulation, TYPE MW MIL-W-76C-PVC 1000V 80C

Ships from and sold by A5 IT.

Part numbers

8527 is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.

Item #	Color	Putup Type	Length	UPC	Order
8527 010100	Black	Reel	100 ft	612825212867	Order online
8527 0101000	Black	Reel	1,000 ft	612825212874	Order online
8527 006100	Blue, Light	Reel	100 ft	612825212812	Order online
8527 0061000	Blue, Light	Reel	1,000 ft	612825212829	Order online
8527 0081000	Gray	Reel	1,000 ft	612825212836	Order online
8527 005100	Green, Dark	Reel	100 ft	612825212799	Order online
8527 0051000	Green, Dark	Reel	1,000 ft	612825212805	Order online
8527 003100	Orange	Reel	100 ft	612825212768	Order online
8527 0031000	Orange	Reel	1,000 ft	612825212775	Order online
8527 002100	Red	Reel	100 ft	612825212744	Order online
8527 0021000	Red	Reel	1,000 ft	612825212751	Order online
8527 009100	White	Reel	100 ft	612825212843	Order online
8527 0091000	White	Reel	1,000 ft	612825212850	Order online
8527 0041000	Yellow	Reel	1,000 ft	612825212782	Order online

Suitable Applications	inter-connection circuits, internal wiring of computer and electronic equipments, (Type MW) MIL-W-76C-Low Temp applications

Overall Cable Diameter (Nominal)	0.128 in (3.25 mm)

Nom. Conductor DCR	4.32 Ohm/1000ft
Max. Current	Single conductor in free air @ 30oC: 9.0 A

UL Voltage Rating	1000 V RMS

Max. Pull Tension	64 lbs (29 kg)
Bulk Cable Weight	24 lbs/1000ft

UL Temperature	80°C
Operating	-40°C To +80°C

Stationary Min.	1.28 in (32.5 mm)
Installation Min.	1.28 in (32.5 mm)

Environmental Suitability	Outdoor
Sustainability	CA Prop 65
Military Compliance	MIL-W-76C Type MWP
European Directive Compliance	EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)

Update and Revision	Revision Number: 0.457 Revision Date: 02-20-2026
Footnote	P - STRIPE COLORS ON STOCK SOLID COLORS. STRIPING ADDER OF $8.00/M= FOR 1 OR 2 STRIPES. 10,000' MINIMUM ORDER FOR COLOR COMBINATION. PUT-UP WILL BE SUBJECT TO TWO PIECES (+ OR -) 10% PER SPOOL, WITH A MINIMUM LENGTH OF 100'., C - CRATE REEL PUT-UP.
