Product Number: 8523

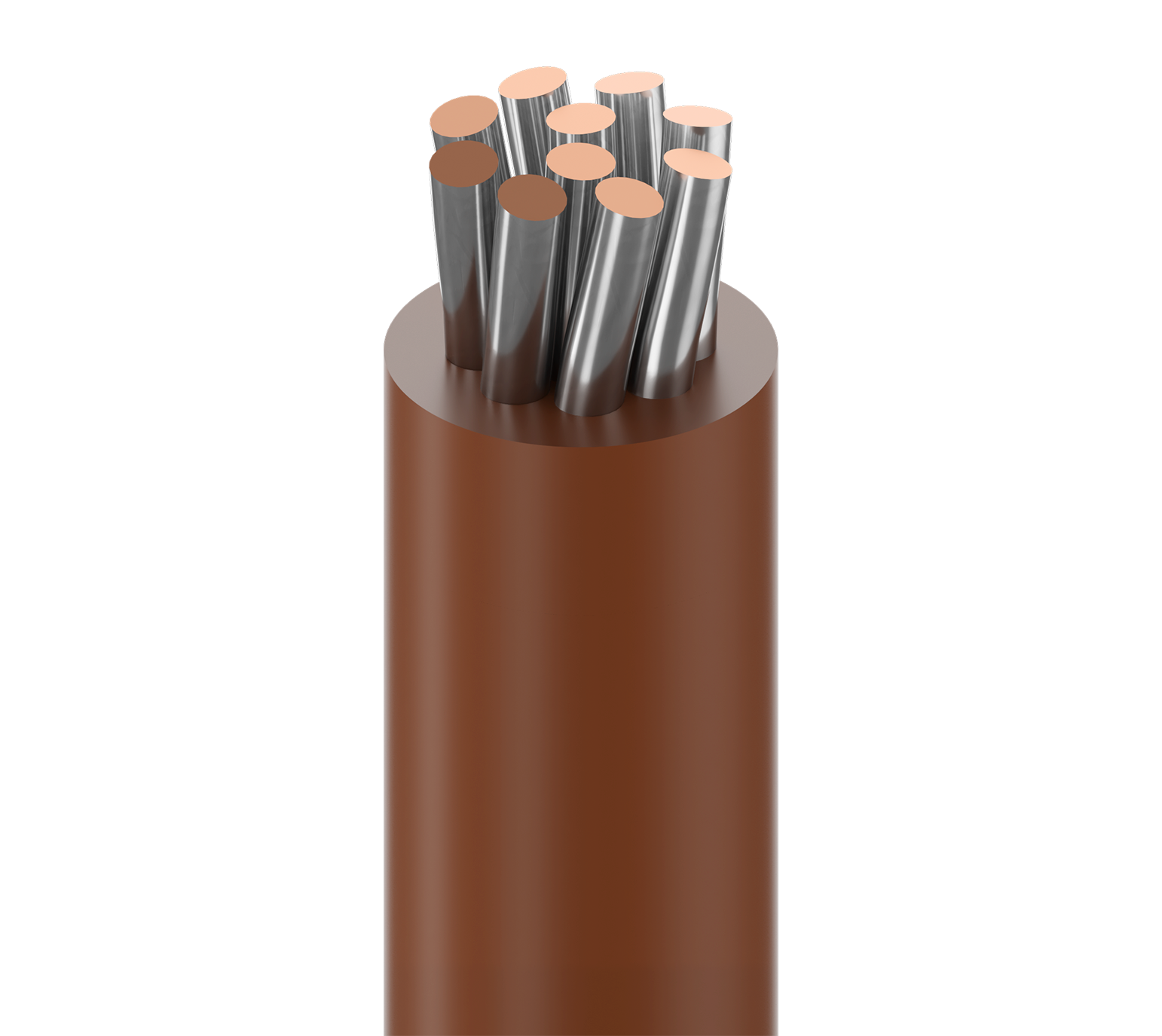

Lead Wire, #20 Str TC, PVC Ins, TYPE MW MIL-W-76C-PVC

Low Temp Plastic Lead Wire, 20AWG (10x30) Tinned Copper, PVC Insulation, TYPE MW MIL-W-76C-PVC 1000V 80C

Availability: Global
Status: Active
Orderable items: 27

Ships from and sold by A5 IT.

Part numbers

8523 is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.

Item #	Color	Putup Type	Length	UPC	Order
8523 010100	Black	Reel	100 ft	612825347859	Order online
8523 0101000	Black	Reel	1,000 ft	612825211976	Order online
8523 013100	Blue, Dark	Reel	100 ft	612825211990	Order online
8523 0131000	Blue, Dark	Reel	1,000 ft	612825212003	Order online
8523 006100	Blue, Light	Reel	100 ft	612825211877	Order online
8523 0061000	Blue, Light	Reel	1,000 ft	612825211884	Order online
8523 001100	Brown	Reel	100 ft	612825211754	Order online
8523 0011000	Brown	Reel	1,000 ft	612825347842	Order online
8523 008100	Gray	Reel	100 ft	612825211914	Order online
8523 0081000	Gray	Reel	1,000 ft	612825211921	Order online
8523 005100	Green, Dark	Reel	100 ft	612825211853	Order online
8523 0051000	Green, Dark	Reel	1,000 ft	612825211860	Order online
8523 003100	Orange	Reel	100 ft	612825211808	Order online
8523 0031000	Orange	Reel	1,000 ft	612825211815	Order online
8523 002100	Red	Reel	100 ft	612825211778	Order online
8523 0021000	Red	Reel	1,000 ft	612825211785	Order online
8523 007100	Violet	Reel	100 ft	612825211891	Order online
8523 0071000	Violet	Reel	1,000 ft	612825211907	Order online
8523 009100	White	Reel	100 ft	612825211938	Order online
8523 0091000	White	Reel	1,000 ft	612825211945	Order online
8523 0141000	White, Black Stripe	Reel	1,000 ft	612825212010	Order online
8523 018100	White, Blue Stripe	Reel	100 ft	612825212034	Order online
8523 0181000	White, Blue Stripe	Reel	1,000 ft	612825212041	Order online
8523 0211000	White, Gray Stripe	Reel	1,000 ft	612825212058	Order online
8523 0161000	White, Green Stripe	Reel	1,000 ft	612825212027	Order online
8523 004100	Yellow	Reel	100 ft	612825211822	Order online
8523 0041000	Yellow	Reel	1,000 ft	612825211839	Order online

Specifications

Product Overview

Suitable Applications	inter-connection circuits, internal wiring of computer and electronic equipments, (Type MW) MIL-W-76C-Low Temp applications

Construction Details

Overall Cable Diameter (Nominal)	0.070 in (1.8 mm)

Conductor

Element	Conductor(s)
No. of Elements	1
Size	20 AWG
Stranding	10x30
Material	TC - Tinned Copper

Insulation

Material	PVC - Polyvinyl Chloride
Nom. Thickness	0.017 in (0.43 mm)
Nom. Insulation Diameter	0.07 in (1.8 mm)

Electrical Characteristics

Electricals

Nom. Conductor DCR	9.85 Ohm/1000ft
Max. Current	Single conductor in free air @ 30oC: 12.0 A

Voltage

Voltage Rating	1000 V RMS

Mechanical Characteristics

Max. Pull Tension	13 lbs (5.9 kg)
Bulk Cable Weight	5 lbs/1000ft

Temperature

UL Temperature	80°C
Operating	-40°C To +80°C

Bend Radius

Stationary Min.	0.07 in (1.8 mm)
Installation Min.	0.07 in (1.8 mm)

Standards and Compliance

Environmental Suitability	Outdoor
Sustainability	CA Prop 65
Military Compliance	MIL-W-76C Type MWP
European Directive Compliance	EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)

History

Update and Revision	Revision Number: 0.487 Revision Date: 02-20-2026
Footnote	P - STRIPE COLORS ON STOCK SOLID COLORS. STRIPING ADDER OF $8.00/M= FOR 1 OR 2 STRIPES. 10,000' MINIMUM ORDER FOR COLOR COMBINATION. PUT-UP WILL BE SUBJECT TO TWO PIECES (+ OR -) 10% PER SPOOL, WITH A MINIMUM LENGTH OF 100'., A - STOCKED STRIPE COLORS.
