Product Number: 8522

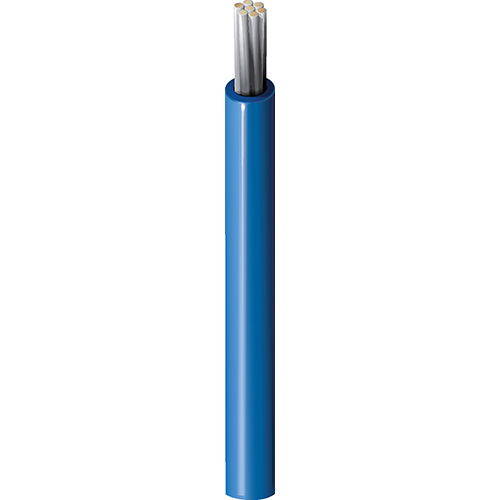

Lead Wire, #18 Str TC, PVC Ins, TYPE MW MIL-W-76C-PVC

Low Temp Plastic Lead Wire, 18AWG (16x30) Tinned Copper, PVC Insulation, TYPE MW MIL-W-76C-PVC 1000V 80C

Availability: Global
Status: Active
Orderable items: 33

Ships from and sold by A5 IT.

Part numbers

8522 is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.

Item #	Color	Putup Type	Length	UPC	Order
8522 010100	Black	Reel	100 ft	612825211525	Order online
8522 0101000	Black	Reel	1,000 ft	612825211532	Order online
8522 013100	Blue, Dark	Reel	100 ft	612825211594	Order online
8522 0131000	Blue, Dark	Reel	1,000 ft	612825211600	Order online
8522 006100	Blue, Light	Reel	100 ft	612825211389	Order online
8522 0061000	Blue, Light	Reel	1,000 ft	612825211396	Order online
8522 001100	Brown	Reel	100 ft	612825211235	Order online
8522 0011000	Brown	Reel	1,000 ft	612825211242	Order online
8522 008100	Gray	Reel	100 ft	612825211433	Order online
8522 0081000	Gray	Reel	1,000 ft	612825211440	Order online
8522 005100	Green, Dark	Reel	100 ft	612825211358	Order online
8522 0051000	Green, Dark	Reel	1,000 ft	612825211365	Order online
8522 003100	Orange	Reel	100 ft	612825211303	Order online
8522 0031000	Orange	Reel	1,000 ft	612825211310	Order online
8522 0121000	Pink	Reel	1,000 ft	612825211556	Order online
8522 002100	Red	Reel	100 ft	612825211273	Order online
8522 0021000	Red	Reel	1,000 ft	612825347835	Order online
8522 0111000	Tan	Reel	1,000 ft	612825211549	Order online
8522 007100	Violet	Reel	100 ft	612825211419	Order online
8522 0071000	Violet	Reel	1,000 ft	612825211426	Order online
8522 009100	White	Reel	100 ft	612825211471	Order online
8522 0091000	White	Reel	1,000 ft	612825211488	Order online
8522 0261000	White, Black And Blue Stripe	Reel	1,000 ft	—	Order online
8522 0301000	White, Black And Violet Stripe	Reel	1,000 ft	612825211716	Order online
8522 014100	White, Black Stripe	Reel	100 ft	612825211617	Order online
8522 0141000	White, Black Stripe	Reel	1,000 ft	612825211624	Order online
8522 018100	White, Blue Stripe	Reel	100 ft	612825211662	Order online
8522 0181000	White, Blue Stripe	Reel	1,000 ft	612825211679	Order online
8522 0161000	White, Green Stripe	Reel	1,000 ft	—	Order online
8522 0201000	White, Orange Stripe	Reel	1,000 ft	612825211709	Order online
8522 0151000	White, Red Stripe	Reel	1,000 ft	612825211648	Order online
8522 004100	Yellow	Reel	100 ft	612825211334	Order online
8522 0041000	Yellow	Reel	1,000 ft	612825211341	Order online

Specifications

Product Overview

Suitable Applications	inter-connection circuits, internal wiring of computer and electronic equipments, (Type MW) MIL-W-76C-Low Temp applications

Construction Details

Overall Cable Diameter (Nominal)	0.08 in (2.0 mm)

Conductor

Element	Conductor(s)
No. of Elements	1
Size	18 AWG
Stranding	16x30
Material	TC - Tinned Copper

Insulation

Material	PVC - Polyvinyl Chloride
Nom. Thickness	0.017 in (0.43 mm)
Nom. Insulation Diameter	0.08 in (2.0 mm)

Electrical Characteristics

Electricals

Nom. Conductor DCR	6.5 Ohm/1000ft
Max. Current	Single conductor in free air @ 30oC: 16 A

Voltage

UL Voltage Rating	1000 V RMS

Mechanical Characteristics

Max. Pull Tension	19 lbs (8.6 kg)
Bulk Cable Weight	7 lbs/1000ft

Temperature

UL Temperature	80°C
Operating	-40°C To +80°C

Bend Radius

Stationary Min.	0.8 in (20 mm)
Installation Min.	0.8 in (20 mm)

Standards and Compliance

Environmental Suitability	Outdoor
Sustainability	CA Prop 65
Military Compliance	MIL-W-76C Type MWP
European Directive Compliance	EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
APAC Compliance	China RoHS II (GB/T 26572-2011)
