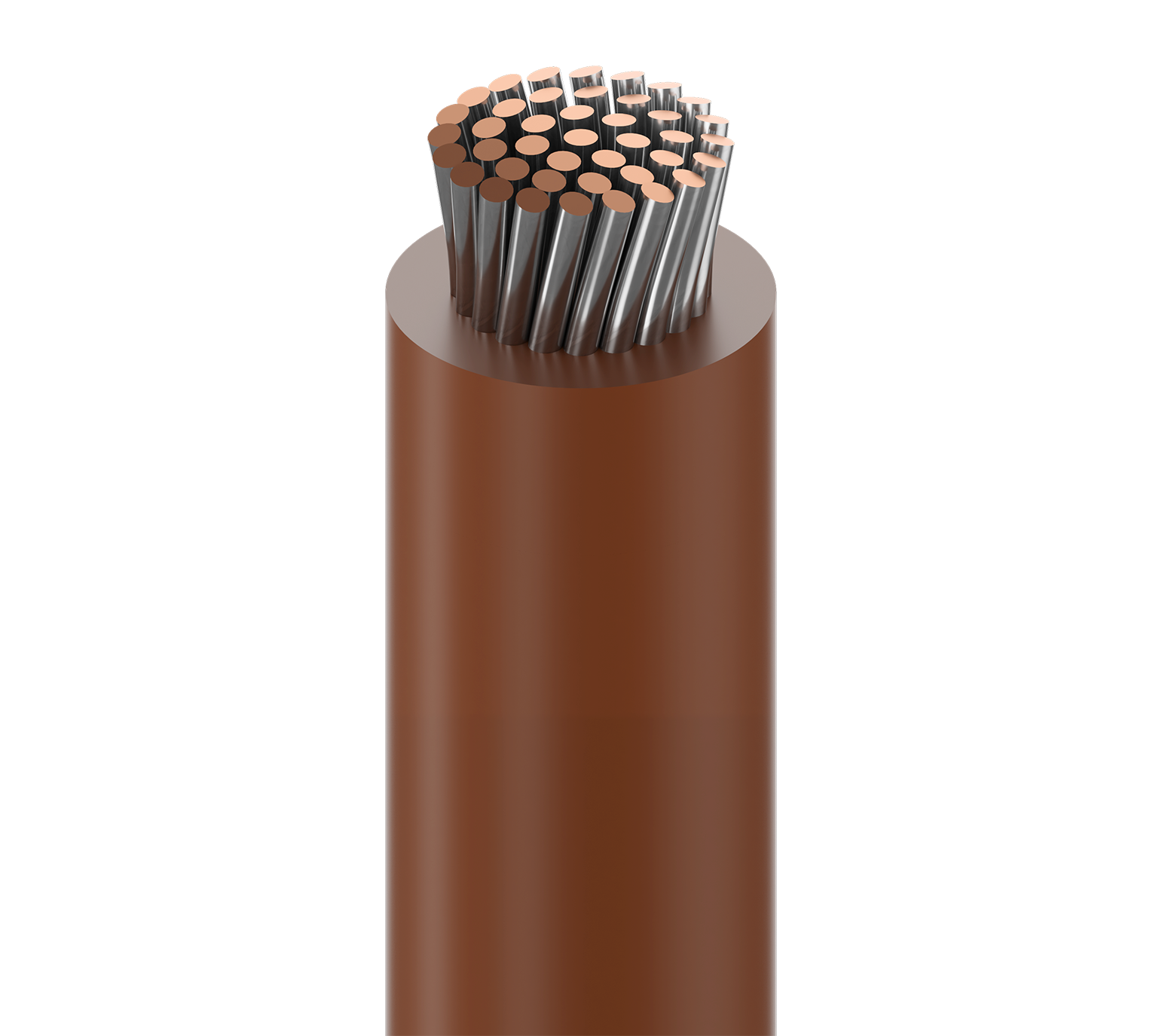

Lead Wire, #14 Str TC, PVC Ins, TYPE MW MIL-W-76C-PVC
Low Temp Plastic Lead Wire, 14AWG (41x30) Tinned Copper, PVC Insulation, TYPE MW MIL-W-76C-PVC 1000V 80C
- Availability
- Global
- Status
- Active
- Orderable items
- 16
Part numbers
8520 is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.
| Item # | Color | Putup Type | Length | UPC | Order |
|---|---|---|---|---|---|
| 8520 010100 | Black | Reel | 100 ft | 612825210788 | Order online |
| 8520 0101000 | Black | Reel | 1,000 ft | 612825210795 | Order online |
| 8520 013100 | Blue, Dark | Reel | 100 ft | 612825210801 | Order online |
| 8520 006100 | Blue, Light | Reel | 100 ft | 612825210733 | Order online |
| 8520 0061000 | Blue, Light | Reel | 1,000 ft | 612825210740 | Order online |
| 8520 001100 | Brown | Reel | 100 ft | 612825210658 | Order online |
| 8520 0011000 | Brown | Reel | 1,000 ft | 612825210665 | Order online |
| 8520 005100 | Green, Dark | Reel | 100 ft | 612825210719 | Order online |
| 8520 0051000 | Green, Dark | Reel | 1,000 ft | 612825210726 | Order online |
| 8520 003100 | Orange | Reel | 100 ft | 612825210696 | Order online |
| 8520 0031000 | Orange | Reel | 1,000 ft | 612825210702 | Order online |
| 8520 002100 | Red | Reel | 100 ft | 612825210672 | Order online |
| 8520 0021000 | Red | Reel | 1,000 ft | 612825210689 | Order online |
| 8520 009100 | White | Reel | 100 ft | 612825210764 | Order online |
| 8520 0091000 | White | Reel | 1,000 ft | 612825210771 | Order online |
| 8520 0181000 | White, Blue Stripe | Reel | 1,000 ft | — | Order online |
Specifications
Product Overview
| Suitable Applications | inter-connection circuits, internal wiring of computer and electronic equipments, (Type MW) MIL-W-76C-Low Temp applications |
|---|
Construction Details
| Overall Cable Diameter (Nominal) | 0.111 in (2.82 mm) |
|---|
Conductor
| Size | 14 |
|---|---|
| Stranding | 41x30 |
| Material | TC - Tinned Copper |
Insulation
| Material | PVC - Polyvinyl Chloride |
|---|---|
| Nom. Thickness | 0.019 in (0.48 mm) |
| Nom. Insulation Diameter | 0.111 in (2.82 mm) |
Electrical Characteristics
Voltage
| UL Voltage Rating | 1000 V RMS |
|---|
Mechanical Characteristics
| Bulk Cable Weight | 16 lbs/1000ft (24 kg/km) |
|---|
Standards and Compliance
| Sustainability | CA Prop 65 |
|---|---|
| Military Compliance | MIL-W-76C Type MWP |
| European Directive Compliance | EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
History
| Update and Revision | Revision Number: 0.399 Revision Date: 02-20-2026 |
|---|---|
| Footnote | P - STRIPE COLORS ON STOCK SOLID COLORS. STRIPING ADDER OF $8.00/M= FOR 1 OR 2 STRIPES. 10,000' MINIMUM ORDER FOR COLOR COMBINATION. PUT-UP WILL BE SUBJECT TO TWO PIECES (+ OR -) 10% PER SPOOL, WITH A MINIMUM LENGTH OF 100'., A - STOCKED STRIPE COLORS. |
