8501

Product Number: 8501

Lead Wire, #18 Str TC, PVC Ins, TYPE B MIL-W-16878/1

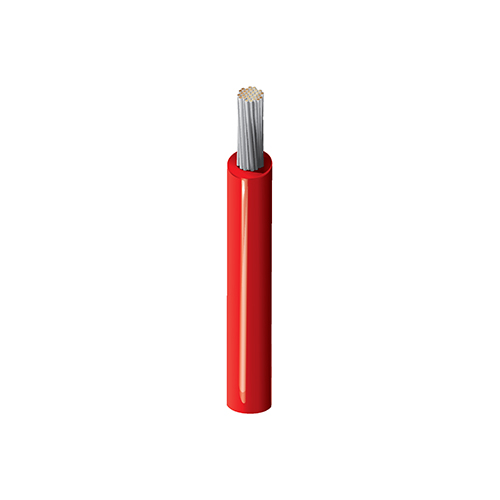

Low Temp Plastic Lead Wire, 18AWG (7x26) Tinned Copper, PVC Insulation, TYPE B MIL-W-16878/1 600V 105C

Availability
Global
Status
Active
Orderable items
23
Request a quoteOrder options (23)

Ships from and sold by A5 IT.

Part numbers

8501 is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.

Item #ColorPutup TypeLengthUPCOrder
8501 010100BlackReel100 ft612825209362Order online
8501 0101000BlackReel1,000 ft612825209379Order online
8501 006100Blue, LightReel100 ft612825209287Order online
8501 0061000Blue, LightReel1,000 ft612825209294Order online
8501 001100BrownReel100 ft612825209164Order online
8501 0011000BrownReel1,000 ft612825209171Order online
8501 0081000GrayReel1,000 ft612825209317Order online
8501 005100Green, DarkReel100 ft612825209263Order online
8501 0051000Green, DarkReel1,000 ft612825209270Order online
8501 003100OrangeReel100 ft612825209225Order online
8501 0031000OrangeReel1,000 ft612825209232Order online
8501 002100RedReel100 ft612825209201Order online
8501 0021000RedReel1,000 ft612825209218Order online
8501 0071000VioletReel1,000 ft612825209300Order online
8501 009100WhiteReel100 ft612825209331Order online
8501 0091000WhiteReel1,000 ft612825209348Order online
8501 0141000White, Black StripeReel1,000 ft612825209386Order online
8501 0181000White, Blue StripeReel1,000 ft612825209409Order online
8501 0211000White, Gray StripeReel1,000 ft612825209423Order online
8501 0201000White, Orange StripeReel1,000 ft612825209416Order online
8501 0151000White, Red StripeReel1,000 ft612825209393Order online
8501 004100YellowReel100 ft612825209249Order online
8501 0041000YellowReel1,000 ft612825209256Order online

Specifications

Product Overview

Suitable Applicationsinter-connection circuits, internal wiring of computer and electronic equipments, (Type B) MIL-W-16878/1-Low Temp applications

Construction Details

Overall Cable Diameter (Nominal)0.068 in (1.7 mm)

Conductor

ElementConductor(s)
No. of Elements1
Size18
Stranding7x26.5
MaterialTC - Tinned Copper

Insulation

MaterialPVC - Polyvinyl Chloride
Nom. Thickness0.01 in (0.25 mm)
Nom. Insulation Diameter0.068 in (1.7 mm)

Electrical Characteristics

Voltage

UL Voltage Rating600 V RMS

Mechanical Characteristics

Max. Pull Tension22.4 lbs (10.2 kg)
Bulk Cable Weight6.5 lbs/1000ft

Bend Radius

Stationary Min.0.28 in (7.1 mm)
Installation Min.0.28 in (7.1 mm)

Standards and Compliance

SustainabilityCA Prop 65
Military ComplianceMIL-W-16878/1
European Directive ComplianceEU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)

History

Update and RevisionRevision Number: 0.443 Revision Date: 02-20-2026
FootnoteP - STRIPE COLORS ON STOCK SOLID COLORS. STRIPING ADDER OF $8.00/M= FOR 1 OR 2 STRIPES. 10,000' MINIMUM ORDER FOR COLOR COMBINATION. PUT-UP WILL BE SUBJECT TO TWO PIECES (+ OR -) 10% PER SPOOL, WITH A MINIMUM LENGTH OF 100'., A - STOCKED STRIPE COLORS.
