Product Number: 83000

Lead Wire, #30 Str SPC, TFE Ins, AWM 1213

Name: Belden 83000
Brand: Belden
SKU: 83000

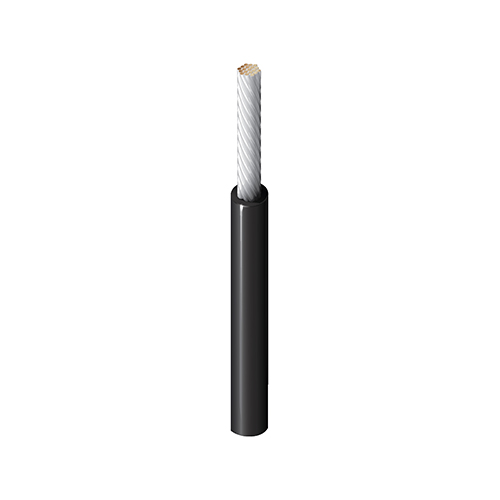

High Temp Plastic Lead Wire, 30AWG (7x38) Silver Plated Copper, TFE Insulation, AWM 1213 105C TYPE E MIL-W-16878/4 600V 200C

Ships from and sold by A5 IT.

Part numbers

83000 is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.

Item #	Color	Putup Type	Length	Footnote	Order
83000 010100	Black	Reel	100 ft	E	Order online
83000 0101000	Black	Reel	1,000 ft	E S	Order online
83000 006100	Blue, Light	Reel	100 ft	E	Order online
83000 0061000	Blue, Light	Reel	1,000 ft	E S	Order online
83000 001100	Brown	Reel	100 ft	E	Order online
83000 0011000	Brown	Reel	1,000 ft	E S	Order online
83000 005100	Green, Dark	Reel	100 ft	E	Order online
83000 0051000	Green, Dark	Reel	1,000 ft	E S	Order online
83000 003100	Orange	—	—	E	Order online
83000 0031000	Orange	Reel	1,000 ft	E S	Order online
83000 002100	Red	Reel	100 ft	E	Order online
83000 0021000	Red	Reel	1,000 ft	E S	Order online
83000 007100	Violet	Reel	100 ft	E	Order online
83000 0071000	Violet	Reel	1,000 ft	E S	Order online
83000 009100	White	Reel	100 ft	E	Order online
83000 0091000	White	Reel	1,000 ft	E S	Order online
83000 004100	Yellow	—	—	E	Order online
83000 0041000	Yellow	Reel	1,000 ft	E S	Order online

Suitable Applications	high temperature, inter-connection circuits, internal wiring of computer and electronic equipments, (Type E) MIL-W-16878/4 applications

Overall Cable Diameter (Nominal)	0.032 in (0.81 mm)

Material	PTFE - Polytetrafluoroethylene
Nom. Thickness	0.01 in (0.25 mm)
Nom. Insulation Diameter	0.032 in (0.81 mm)

Max. Current	Mil-Std-975M Table 3.16 (single wire): 1.3 A

UL Voltage Rating	600 V RMS

Max. Pull Tension	1.4 lbs (0.64 kg)
Bulk Cable Weight	1 lbs/1000ft

UL Temperature	105°C

Stationary Min.	0.13 in (3.3 mm)
Installation Min.	0.13 in (3.3 mm)

Sustainability	CA Prop 65
Flammability / Reaction to Fire	VW-1
AWM Compliance	AWM 1213
NEMA Compliance	HP3
Military Compliance	MIL-W-16878/4
European Directive Compliance	EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)

Update and Revision	Revision Number: 0.456 Revision Date: 02-20-2026
Footnote	E - MAY CONTAIN MORE THAN 1 PIECE. MINIMUM LENGTH OF ANY ONE PIECE IS 25'., S - STRIPING ADDERS FOR TYPES E AND EE: 1, 2, 3 STRIPES. MINIMUM ORDER 10,000' PER STRIPE COMBINATION. (SEE STRIPING ADDER TABLE)
